USB HDMI over Fiber KVM Extender

Model No.: KFH101S

Extends uncompressed HDMI video, audio, USB, RS-232 signals over fiber optic cable
Distance: Up to 10km
Resolution: Up to 4K@60Hz (YCbCr 4:2:0)
Number of Screens: 1
High speed USB 2.0 ports – supports a wide range of USB devices including keyboards, mice, mass storage devices and printers.

Diagram

Overview

The KFH101S HDMI digital KVM extender delivers FHD HDMI video, USB, RS232, and stereo audio signals up to 10km over fiber optic cable.

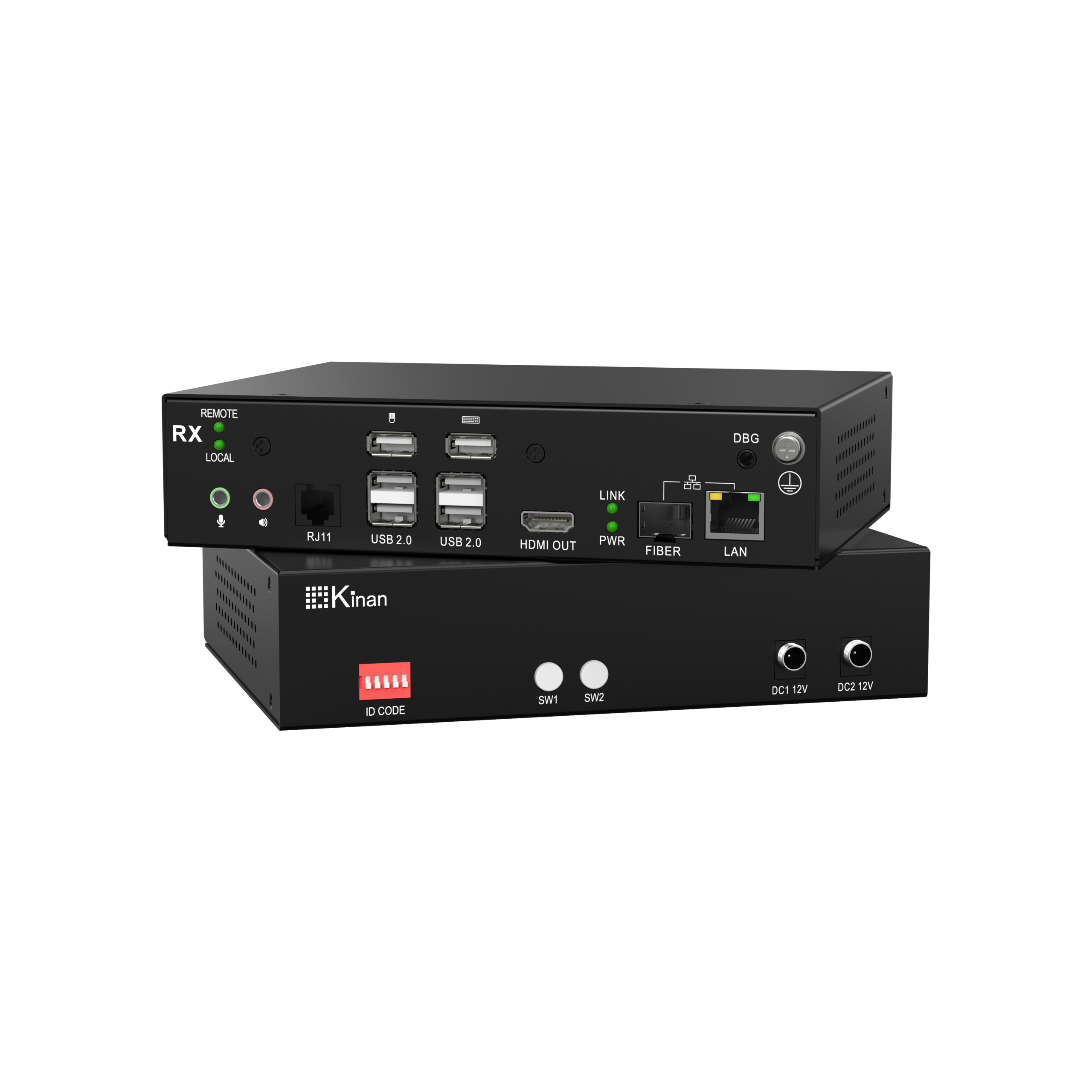

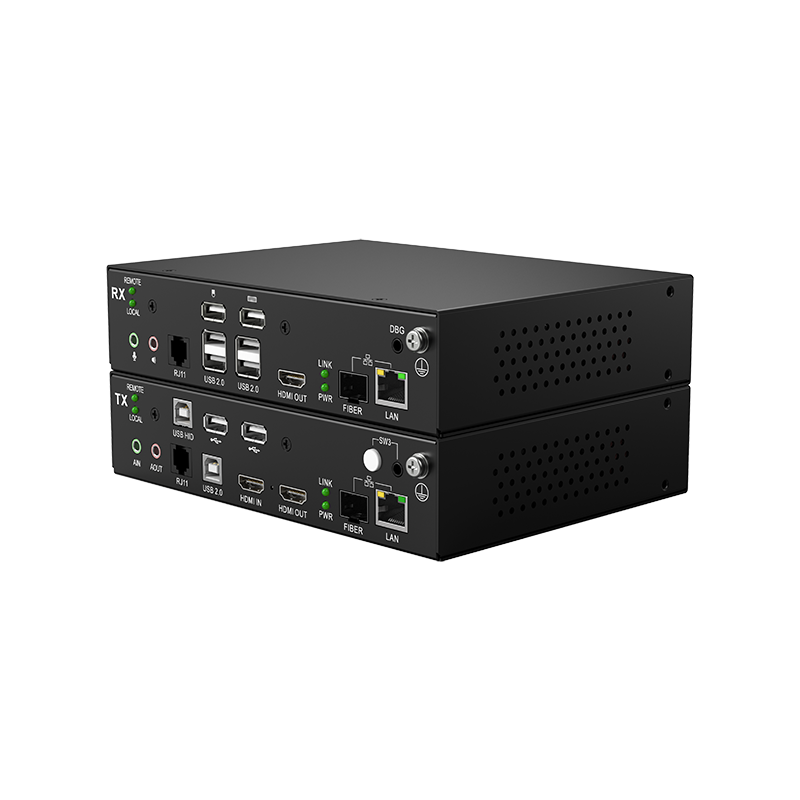

A complete set of KFH101S including Transmitter (KFH101S-TX) and Receiver (KFH101S-RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, audio player and other USB devices.

The KFH101S support single-mode and multi-mode optical fiber, the maximum transmission distance of single mode is 10km, and the transmission distance of multimode is up to 300m. It supports the transmission of 2 channel high-quality HDMI signals and has a wide range of applications.

Extension Distance

The maximum transmission distance is vary depending on the fiber type, the maximum transmission distance of single mode is 10km, and the transmission distance of multimode is up to 300m.

Extension Distance

The maximum transmission distance is vary depending on the fiber type, the maximum transmission distance of single mode is 10km, and the transmission distance of multimode is up to 300m.

High Resolution

Resolution up to 4K@60Hz (YCbCr 4:2:0)

High Resolution

Resolution up to 4K@60Hz (YCbCr 4:2:0)

Uncompressed HDMI FHD video

Uncompressed digital video, real time control

Uncompressed HDMI FHD video

Uncompressed digital video, real time control

Transparent USB 2.0

Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers, it provides 2 USB hub on the receiver.

Transparent USB 2.0

Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers, it provides 2 USB hub on the receiver.

High quality audio

Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT

High quality audio

Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT

Plug and Play

Easy to install, no software required – connecting cables to the devices is all it takes

Plug and Play

Easy to install, no software required – connecting cables to the devices is all it takes

Diagram

Specification

Model		KFH101S_TX	KFH101S_RX
Connector	HDMI Input	1	NA
	HDMI Output	1	1
	Power	12V	12V
	Fiber Module	SFP+ x 1	SFP+ x 1
	Microphone	3.5MM Stereo Jack (Pink)	3.5MM Stereo Jack (Pink)
	Speaker	3.5MM Stereo Jack (Green)	3.5MM Stereo Jack (Green)
	USB Type B	1	N/A
	USB 2.0	N/A	USB x 4
Resolution		4K@60Hz (YCbCr 4:2:0)
Connection Cable		Fiber cable
Power Input		DC12V / 2A	DC12V / 2A
Power Consumption		11.5W	10.5W
Operating Temperature		0 ~ 50 ℃
Storage Temperature		-20 ~ 60 ℃
Humidity		0~80% RH, Non-condensing
Material		Metal
Net Weight (kg)		0.8kg	0.8kg
Product Dimension (W × D × H)		214 mm x 113.5 mm x 44mm
Package Dimension (W × D × H)		395 x 274 x 110mm
