USB HDMI Dual View KVM Extender over Fiber

Model No.: KFH201S

  • Extends uncompressed HDMI video, audio, USB, RS-232 signals over fiber optic cable
  • Distance: Up to 10km
  • Resolution: Up to 4K@60Hz (YCbCr 4:2:0)
  • Number of Screens: 2
  • High speed USB 2.0 ports – supports a wide range of USB devices including keyboards, mice, mass storage devices and printers.

Overview

The KFH201S HDMI digital KVM extender delivers HD dual HDMI video, USB, RS232, and stereo audio signals up to 10km over fiber optic cable. A complete set of KFH201S including Transmitter (KFH201S-TX) and Receiver (KFH201S-RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, audio player and other USB devices.

The KFH201S support single-mode and multi-mode optical fiber, the maximum transmission distance of single mode is 10km, and the transmission distance of multimode is up to 300m. It supports the transmission of 2 channel high-quality HDMI signals and has a wide range of applications.

Extension Distance

  • The maximum transmission distance is vary depending on the fiber type, the maximum transmission distance of single mode is 10km, and the transmission distance of multimode is up to 300m.

Extension Distance

  • The maximum transmission distance is vary depending on the fiber type, the maximum transmission distance of single mode is 10km, and the transmission distance of multimode is up to 300m.

High Resolution

  • Resolution up to 4K@60Hz (YCbCr 4:2:0)

High Resolution

  • Resolution up to 4K@60Hz (YCbCr 4:2:0)

Uncompressed HDMI FHD video

  • Uncompressed digital video, real time control

Uncompressed HDMI FHD video

  • Uncompressed digital video, real time control

Transparent USB 2.0

  • Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers, it provides 2 USB hub on the receiver.

Transparent USB 2.0

  • Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers, it provides 2 USB hub on the receiver.

High quality audio

  • Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT

High quality audio

  • Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT

Plug and Play

  • Easy to install, no software required – connecting cables to the devices is all it takes

Plug and Play

  • Easy to install, no software required – connecting cables to the devices is all it takes

Diagram

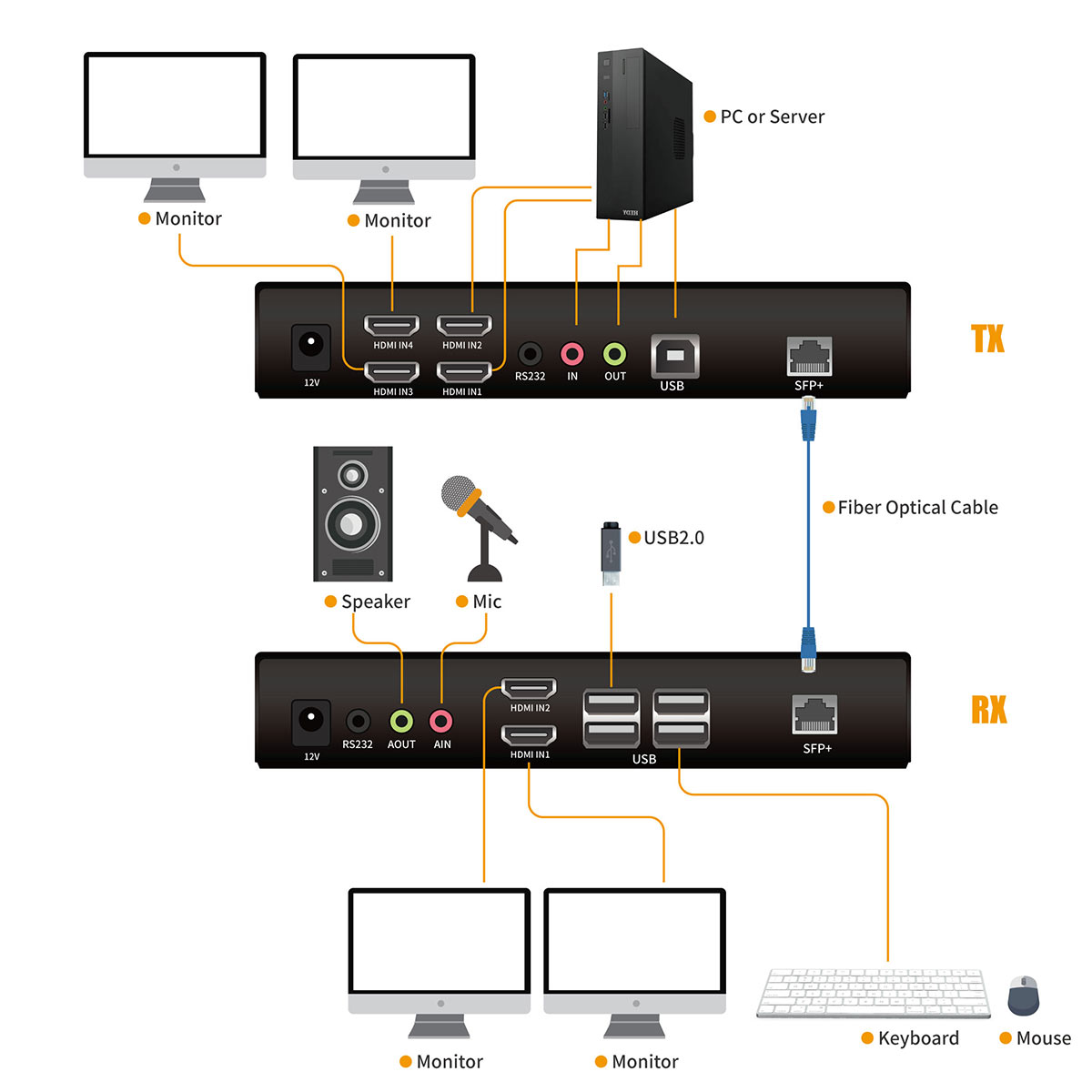

Connection Diagram KFH201S-2

Specification

Model KFH201S_TX KFH201S_RX
Connector HDMI Input 2 NA
HDMI Output 2 2
Power 12V 12V
Fiber Module SFP+ x 1 SFP+ x 1
Microphone 3.5MM Stereo Jack (Pink) 3.5MM Stereo Jack (Pink)
Speaker 3.5MM Stereo Jack (Green) 3.5MM Stereo Jack (Green)
USB Type B 1 N/A
USB 2.0 N/A USB x 4
Resolution Single-channel: 4K@60Hz (YCbCr 4:2:0)
Dual-channel: 1920 X 1200 @ 60 Hz
Connection Cable Fiber cable
Power Input DC12V / 2A DC12V / 2A
Power Consumption 16.5W 14.5W
Operating Temperature 0—50 ℃
Storage Temperature -20—60 ℃
Humidity 0—80% RH, Non-condensing
Material Metal
Net Weight (kg) 0.85 kg 0.85kg
Product Dimension  (W × D × H) 214 mm x 113.5 mm x 44mm
Package Dimension  (W × D × H) 395 mm x 274 mm x 110mm

Package Contents

  • 1x Transmitter
  • 1x Receiver
  • 2x HDMI cable (1.5m)
  • 2x Audio cable (1.5m)
  • 2x USB cable (USB-A female to USB-B female, 1.5m)
  • 2x Power Adapter
  • 2x Power Cords (Regional)
  • 1x Mounting Kit
  • 1x User Manual
