Ultra Short Depth Single Rail 15.6 Inch Widescreen LCD KVM Console

Model No.: XW1601

Ultra short depth rackmount LCD console is the ideal solution for short rack, fits for mounting in the small 600m rack.
Easy to install and simple to operate. It slides neatly into a 1U rack space when not in use.
The 15.6″ widescreen LCD screen supports video resolutions up to 1920 x 1080@60Hz.
Support 99 key full keyboard with numeric keypad + trackpad.
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle.
The rack mount console is compatible with all major operating systems and KVM Switches with a VGA monitor port and USB keyboard and mouse ports.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The XW1601 ultra short depth rackmount LCD console is the ideal solution for ETC specialized rack, 5G rack, network specialized rack and standard server rack. Featuring an integrated 15.6” LCD display, full-99 key keyboard and touchpad, all in a 1U rack-mountable housing, with the short depth design – 360mm, it is fit for mounting in the small 600m rack. It also features a dual power supply redundancy, largely improve the work efficiency of the whole KVM and server system.

It is easy and fast to install the KVM console; you just need to connect corresponding cables to the right ports of KVM and its module without software configuration. This console is designed with two anti-vibration fixing screws on the front panel to prevent the console during transportation and operating.

Hardware Features

15.6” FHD LCD display, 99-key keyboard, touchpad
Constructed of heavy-duty steel in a 1U housing
Short depth: 360mm
Rack-mountable in 1U system rack
Dual power supply redundancy design
Support connection to a server or KVM Switch
Dual interface – supports computers with PS/2 and USB keyboard and mouse
Hot pluggable – add or remove computers without having to power down the switch

Hardware Features

15.6” FHD LCD display, 99-key keyboard, touchpad
Constructed of heavy-duty steel in a 1U housing
Short depth: 360mm
Rack-mountable in 1U system rack
Dual power supply redundancy design
Support connection to a server or KVM Switch
Dual interface – supports computers with PS/2 and USB keyboard and mouse
Hot pluggable – add or remove computers without having to power down the switch

High Resolution

15.6″ monitor of this LCD KVM console supports highlight, high definition and high resolution
Support input video resolutions up to 1920 x 1080 @60Hz

High Resolution

15.6″ monitor of this LCD KVM console supports highlight, high definition and high resolution
Support input video resolutions up to 1920 x 1080 @60Hz

High Performance Touchpad

Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

This rackmount LCD KVM console supports multiple languages including English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Keyboard

This rackmount LCD KVM console supports multiple languages including English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Wide Compatibility

The rackmount KVM switch with a 15.6″ monitor is compatible with multiple operating systems such as Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

The rackmount KVM switch with a 15.6″ monitor is compatible with multiple operating systems such as Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

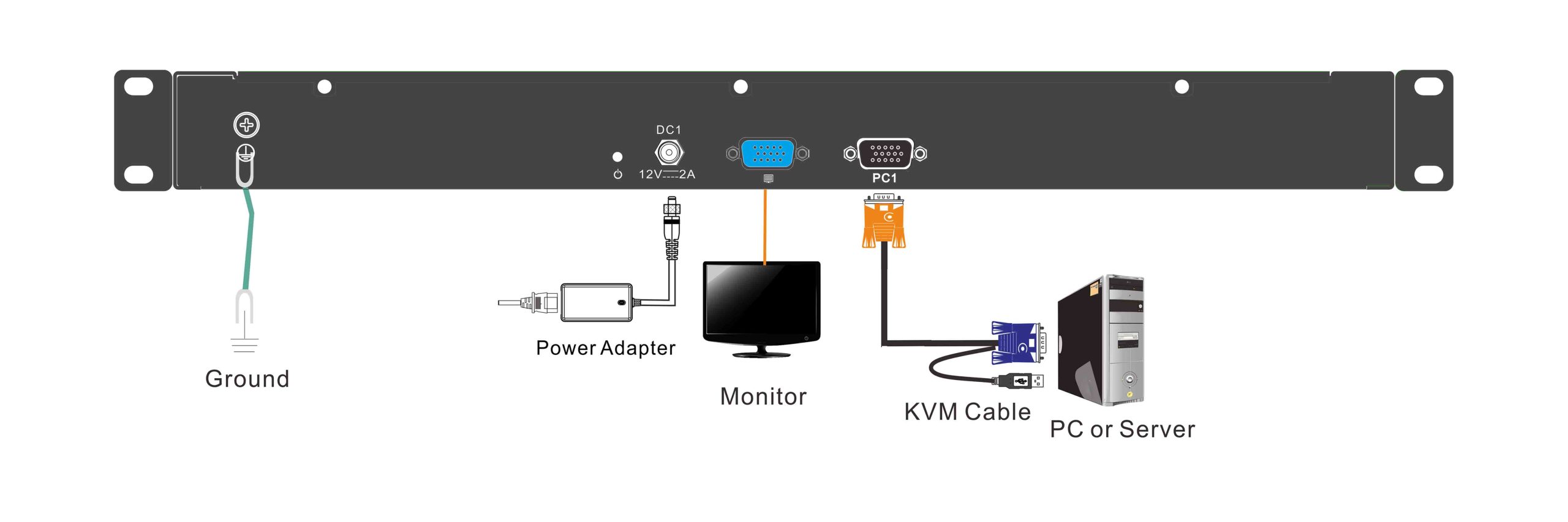

Diagram

Specification

Model		XW1601
Computer connections	Direct	1
Computer connections	Max	1
Port emulation	Keyboard, mouse	PS/2, USB
LCD monitor	LCD model	FHD TFT
	View area	15.6 “
	Optimum resolution	1920 x 1080@60Hz
	Display color	16.2M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	800 : 1 （ T y p ）
	Pixel pitch(mm)	0.17925(H) × 0.17925(V)
Model	X/Y resolution	>1000 points /inch, (40 points/mm)
Model	Scroll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Input power		DC12V /2A
Power consumption		7W
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		8.5kg
Product dimension (W ×D ×H)		448mm×360 mm×42.5mm
Package dimension (W× D× H)		600mm×538mm×160mm
