Single Rail 8 Port 18.5″ VGA LCD KVM Switch

Model No.: XW1808

Hardware Composition: Integrated KVM Console with a 18.5″ LCD display in 1U height space.
Space-saving Design: It can be installed in cabinet and occupy only 1U rack space.
Number of Computers: A rackmount LCD switch can connect 8 computers.
Max Video Resolution: The resolution is up to 1920 x 1080 @60Hz.
Easy to Control: Switch computers via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
Daisy-chain Connection: Support daisy-chain connection and control up to 256 computers.
Flexiblility: The LCD display can be adjusted freely because it can be opened up to 108 degrees.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan XW1808 integrates multiple-port KVM switches in a 1U height console. It can control multiple computers with a set of device including monitor, keyboard and mouse, thus saves much cost and space to separately equip keyboard, mouse and monitor for every computer.

It is simple and easy to install this XW1808 VGA LCD KVM switch. The users just need to connect cables to the sight ports. Importantly, there is no software configuration needed. It allows users to control up to 8 computers conveniently. With the wide screen, users can easily watch something. What’s more, this LCD switch has wide compatibility, it is compatible with multiple hardware platforms and operating systems.

Hardware Features

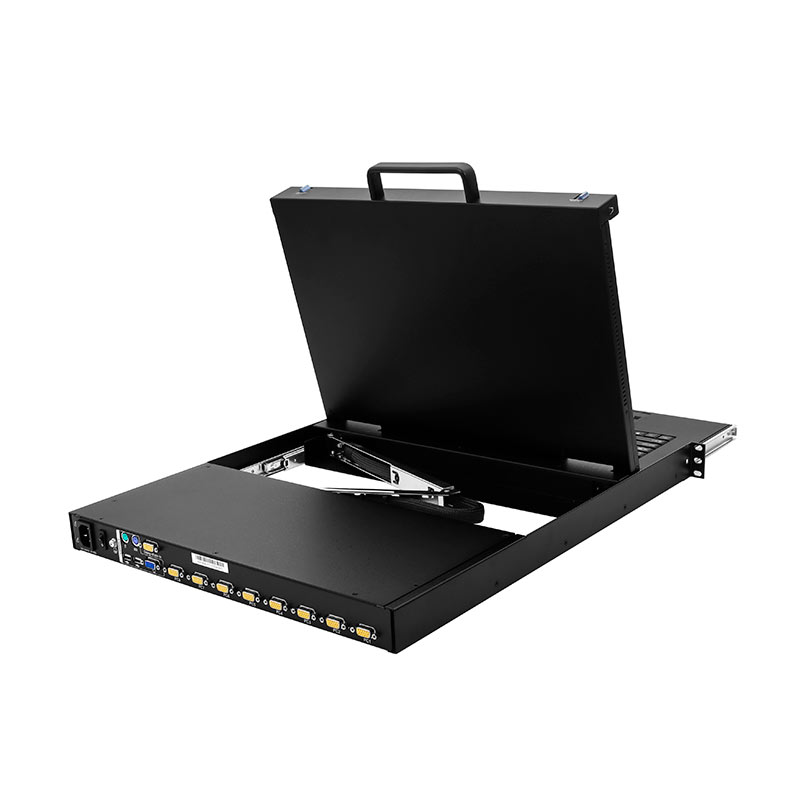

This switch consists of a 18.5″ LCD display, built-in keyboard, touchpad, and 8 VGA ports, occupying only 1U rack space.
Connect to a server or computer via standard VGA connectors.
LCD module can be opened up to 108 degrees to provide a comfortable viewing experience.
Support computers with USB and PS/2 keyboard and mouse.

Hardware Features

This switch consists of a 18.5″ LCD display, built-in keyboard, touchpad, and 8 VGA ports, occupying only 1U rack space.
Connect to a server or computer via standard VGA connectors.
LCD module can be opened up to 108 degrees to provide a comfortable viewing experience.
Support computers with USB and PS/2 keyboard and mouse.

High Resolution

18.5″ monitor of this LCD KVM switch supports highlight, high definition and high resolution.
Superior video quality is up to 1920 x 1080 @60Hz.

High Resolution

18.5″ monitor of this LCD KVM switch supports highlight, high definition and high resolution.
Superior video quality is up to 1920 x 1080 @60Hz.

Security

Two level password security–only authorized users view and control computers.
Supports one administrator and four user accounts with a separate profile for each.

Security

Two level password security–only authorized users view and control computers.
Supports one administrator and four user accounts with a separate profile for each.

Keyboard Features

Multi-language support–English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad.

Keyboard Features

Multi-language support–English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad.

Wide Compatibility

This 18.5″ 8-port LCD KVM switch is compatible with Windows, Sun, Unix and Linux.
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

This 18.5″ 8-port LCD KVM switch is compatible with Windows, Sun, Unix and Linux.
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Diagram

Specification

Function		XW1808	XW1816
Computer connections	Direct	8	16
	Max	256	512
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	FHD TFT
	View area	18.47″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.213(H) × 0.213(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
	Roll wheel	Supports scroll wheel function
Keyboard		99 keys(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		27W	29W
Mounting distance		686-770mm ( L=262mm)
		Mounting bracket can be customized for other mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		11.8kg	12kg
Product dimension (W × D × H)		448mm×560mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
