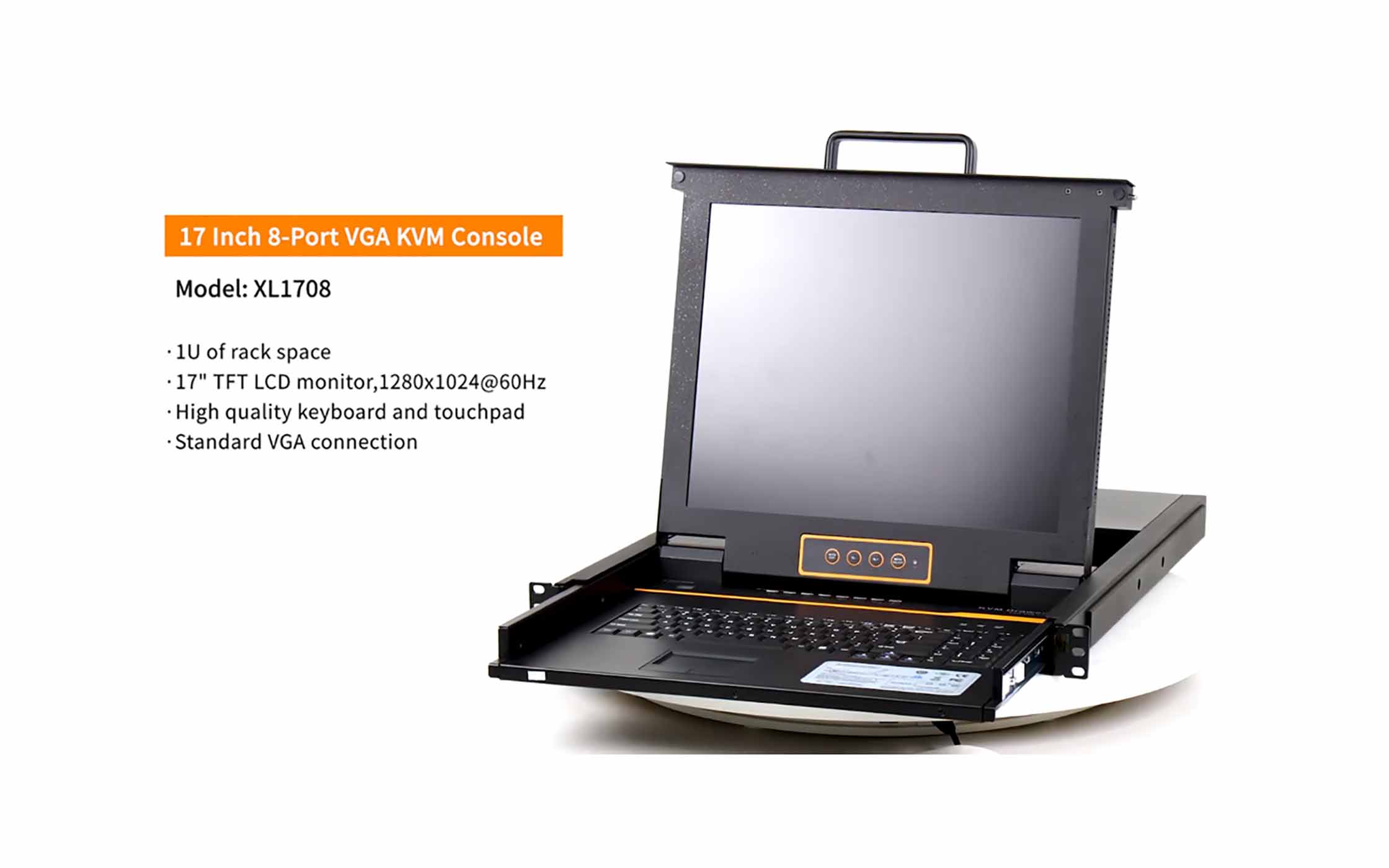

Single Rail 17” 8 Port USB VGA LCD KVM Switch

Model No.: XL1708

  • (XL1908: 19″ LCD)
  • Integrated KVM Console with 17” LCD monitor
  • A single console controls up to 8 computers
  • Resolution is up to 1280 x 1024 @60Hz
  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Support daisy-chain connection and control up to 256 computers

Overview

The Kinan’s XL1708 LCD KVM Switch features an integrated 17″ LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 256 by daisy-chaining up to 31 XM0108 KVM Switches.

The XL1708 KVM Console has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

The LCD KVM switch supports USB connection for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.

Hardware Features

  • Integrated KVM Console with 17” LCD monitor, keyboard/touchpad and 8 port KVM switch in a 1U height console
  • Standard VGA connection-Connect to a server or computer via standard VGA connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 keyboard and mouse

Hardware Features

  • Integrated KVM Console with 17” LCD monitor, keyboard/touchpad and 8 port KVM switch in a 1U height console
  • Standard VGA connection-Connect to a server or computer via standard VGA connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 keyboard and mouse

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

High Resolution

  • 17″ TFT LCD KVM monitor with highlight, high definition and high resolution
  • Optimum resolution is up to 1280 x 1024 @60Hz, max resolution supports up to 1280×1024@75Hz

High Resolution

  • 17″ TFT LCD KVM monitor with highlight, high definition and high resolution
  • Optimum resolution is up to 1280 x 1024 @60Hz, max resolution supports up to 1280×1024@75Hz

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Diagram

Connection Diagram XL1708-1

Specification

Model XL1708
Computer connections Direct 8
Max 256
Port emulation Keyboard, mouse USB
LED monitor LED model SXGA TFT
View area 17 “
Optimum resolution 1280×1024@60Hz
Display color 16.7 M
Brightness 250cd/m²( T y p )
Contrast ratio 1000 : 1 ( T y p )
Pixel pitch(mm) 0.264(H) × 0.264(W)
Mouse X/Y resolution >1000 points /inch, (40 points/mm)
Roll wheel Supports scroll wheel function
Keyboard 99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection Front panel pushbuttons, hotkeys, OSD menu
Input power 100V- 240Vac, 50-60Hz, <1.5A
Power consumption 17W
Mounting distance 600~850mm (L=420mm)
Mounting rails can be customized for other mounting distance.
Operating temperature 0—50 ℃
Store temperature -20—60 ℃
Humidity 0—80% RH, non-condensing
Net weight 12.8 kg
Product dimension (W × D × H) 448mm×581mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm
Optional power input -36V— -72V DC

Package Contents

  • 1x LCD KVM Switch (XL1708)
  • 1x Power Cord (Regional)
  • 1x Quick Start Guide
  • 2x Mounting Rails
  • 8x USB+VGA KVM Cable (1.8m/6ft)
