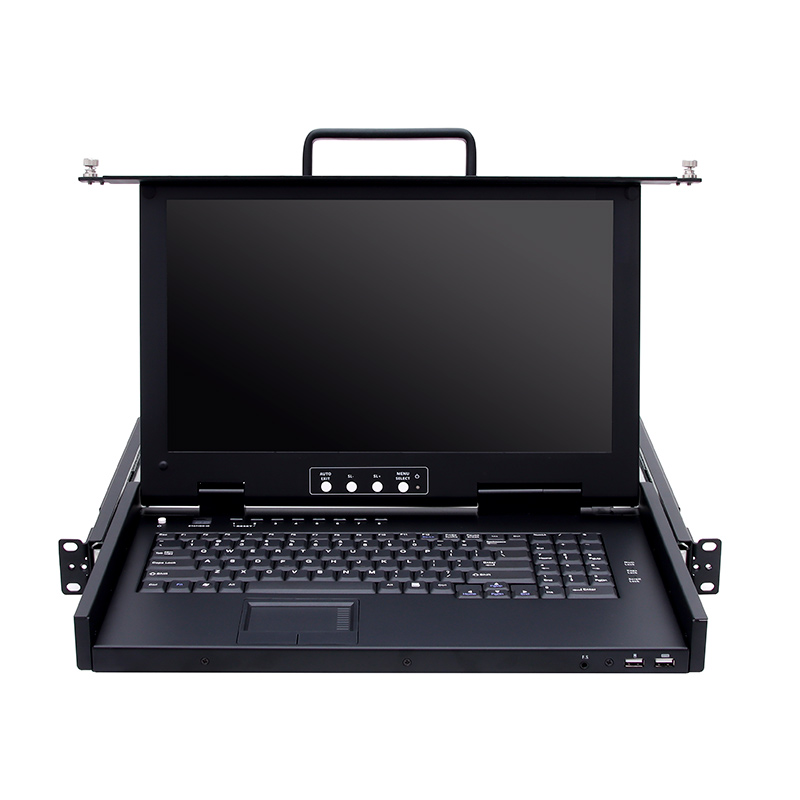

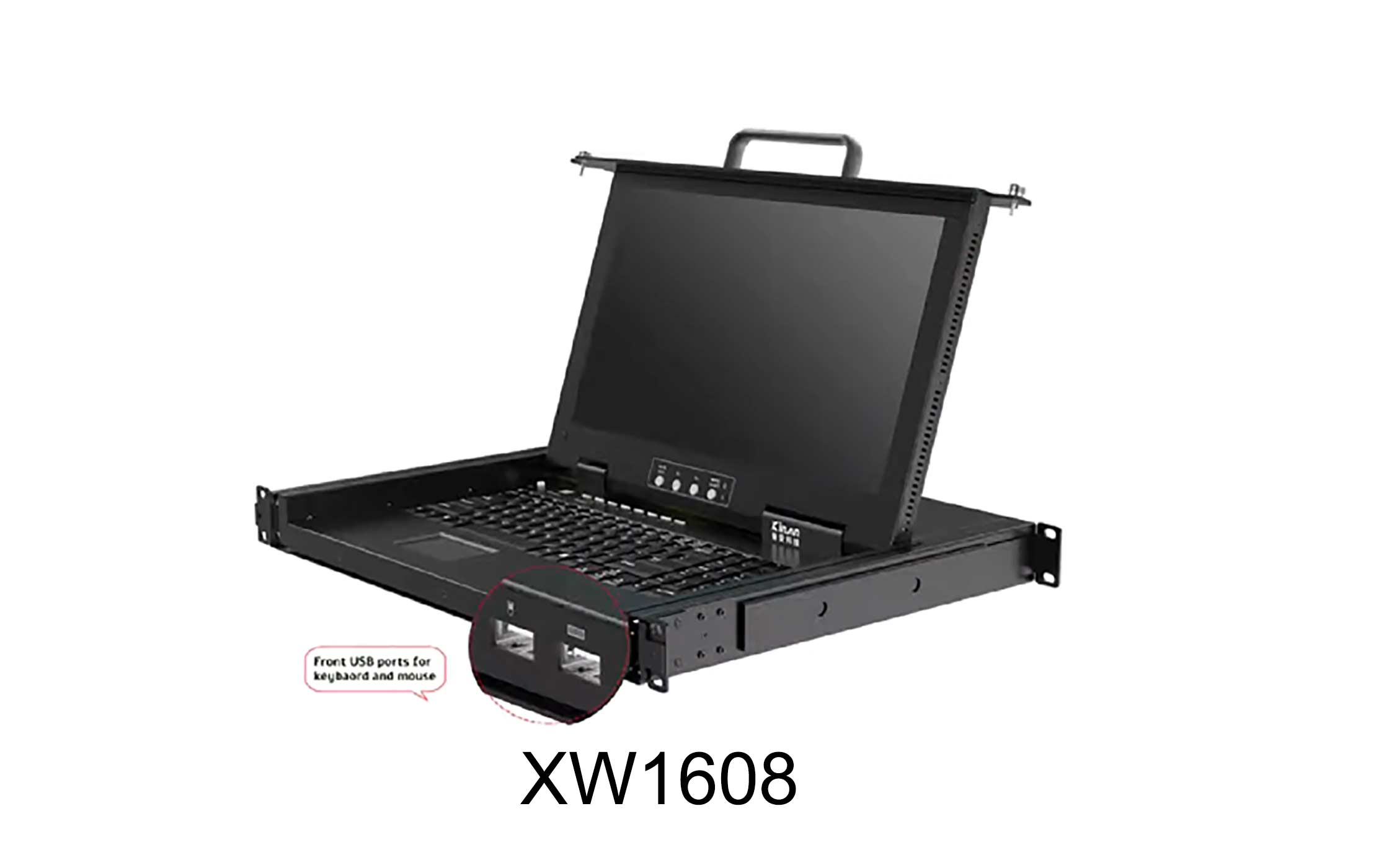

Short Depth 8 Port 15.6” FHD LCD KVM Switch

Model No.: XW1608

  • Ultra short depth rackmount LCD console is the ideal solution for short rack, fits for mounting in the small 600m rack.

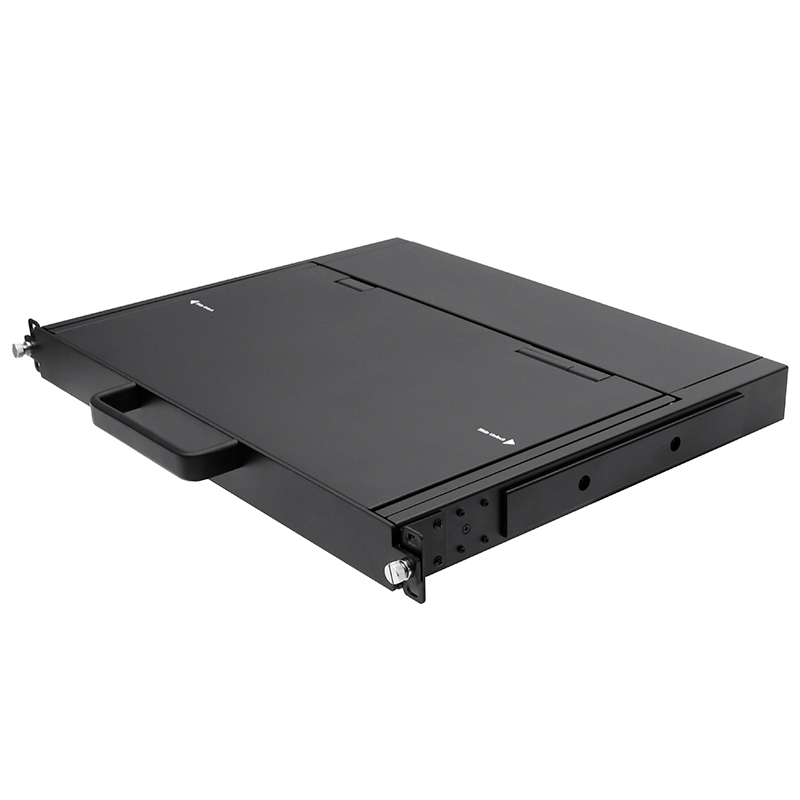

  • Easy to install and simple to operate. It slides neatly into a 1U rack space when not in use.
  • The 15.6” widescreen LCD screen supports video resolutions up to 1920 x 1080@60Hz.
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle.
  • A console controls up to 8 computers.
CE
RoHS
FCC
UKCA
Features
Diagram
Specification
Accessory
Download
Related Products

Overview

The XW1608 rackmount keyboard and monitor switch is an ideal solution for ETC specialized rack, 5G rack, network specialized rack and standard server rack. Featuring an integrated 15.6” LCD display, full-99 key keyboard and touchpad, all in a 1U rack-mountable housing, with 360mm short depth, the XW1608 can be mounted in a small 600mm rack.

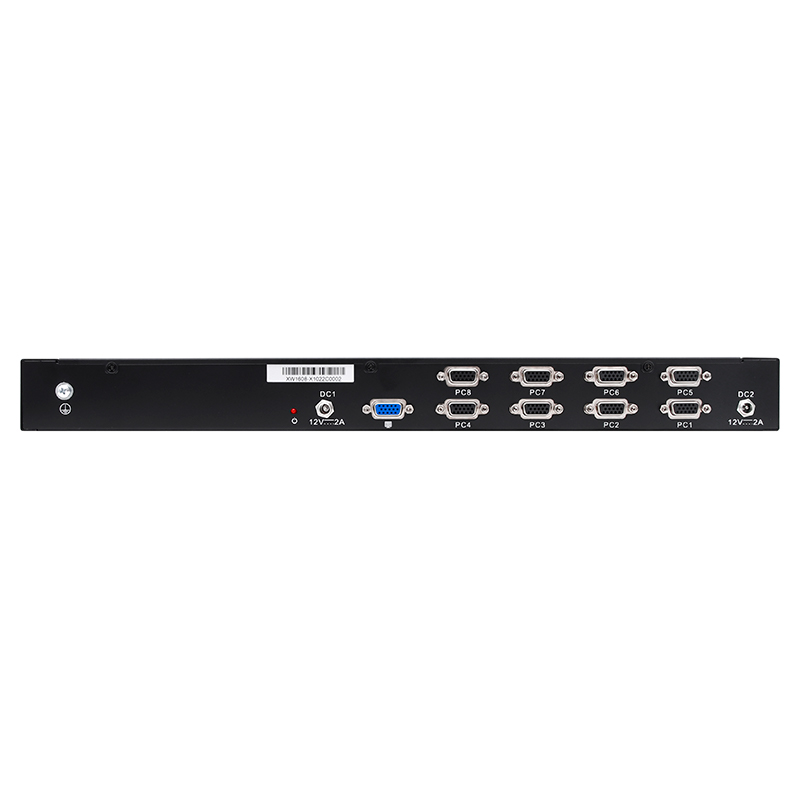

The XW1608 supports control of up to 8 computers from a single keyboard-mouse-monitor console. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD). It also features a dual power supply redundancy, largely improve the work efficiency of the whole KVM and server system.

It is easy and fast to install the XW1608 rack mount keyboard drawer; you just need to connect corresponding cables to the right ports of KVM and its module without software configuration. This rack kvm is designed with two anti-vibration fixing screws on the front panel to prevent the console during transportation and operating.

Hardware Features

  • 15.6 FHD LCD display, 99-key keyboard, touchpad
  • Constructed of heavy-duty steel in a 1U housing
  • Short depth: 360mm
  • Rack-mountable in 1U system rack
  • Dual power supply

Hardware Features

  • 15.6 FHD LCD display, 99-key keyboard, touchpad
  • Constructed of heavy-duty steel in a 1U housing
  • Short depth: 360mm
  • Rack-mountable in 1U system rack
  • Dual power supply

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

High Resolution

  • 15.6 FHD KVM rack monitor supports highlight, high definition and high resolution
  • Support input video resolutions up to 1920 x1080@60Hz

High Resolution

  • 15.6 FHD KVM rack monitor supports highlight, high definition and high resolution
  • Support input video resolutions up to 1920 x1080@60Hz

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

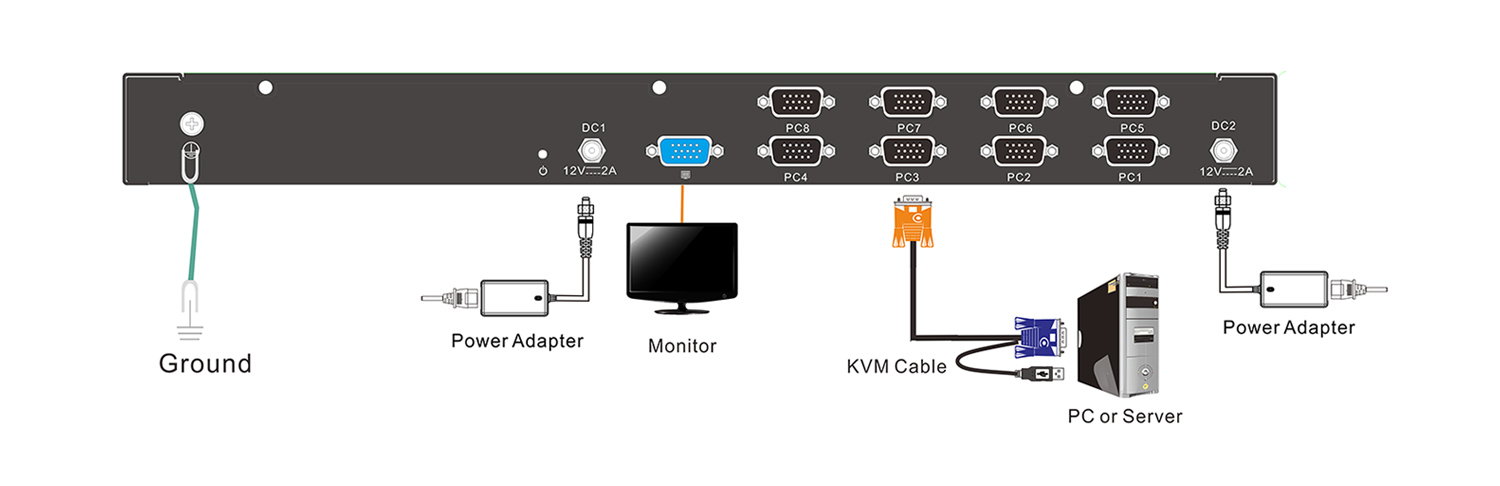

Diagram

Specification

Model XW1608
Computer connections Direct 8
Max 8
Port emulation Keyboard, mouse USB
LCD monitor LCD model FHD TFT
View area 15.6 “
Optimum resolution 1920×1080@60Hz
Display color 16.2M
Brightness 250cd/m²（ T y p ）
Contrast ratio 800 : 1 （ T y p ）
Pixel pitch(mm) 0.17925(H) × 0.17925(V)
Mouse X/Y resolution >1000 points /inch, (40 points/mm)
Scroll wheel Supports scroll wheel function
Keyboard 99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection Pushbuttons, hotkeys, OSD menu
Input power DC12V /2A
Mounting distance 266-470mm (L=235mm)
Mounting bracket can be customized for other mounting distance
Power consumption 10W
Operating temperature 0—50 ℃
Store temperature -20—60 ℃
Humidity 0—80% RH, non-condensing
Net weight 9kg
Product dimension (W × D × H) 448mm×360 mm×42.5mm
Package dimension (W × D × H) 600mm×538mm×160mm

Package Contents

  • 1x LCD KVM Switch (XW1608)
  • 1x Power Cord (Regional)
  • 1x Quick Start Guide
  • 2x Mounting Rails
  • 8x USB+VGA KVM Cable (1.8m/6ft)
