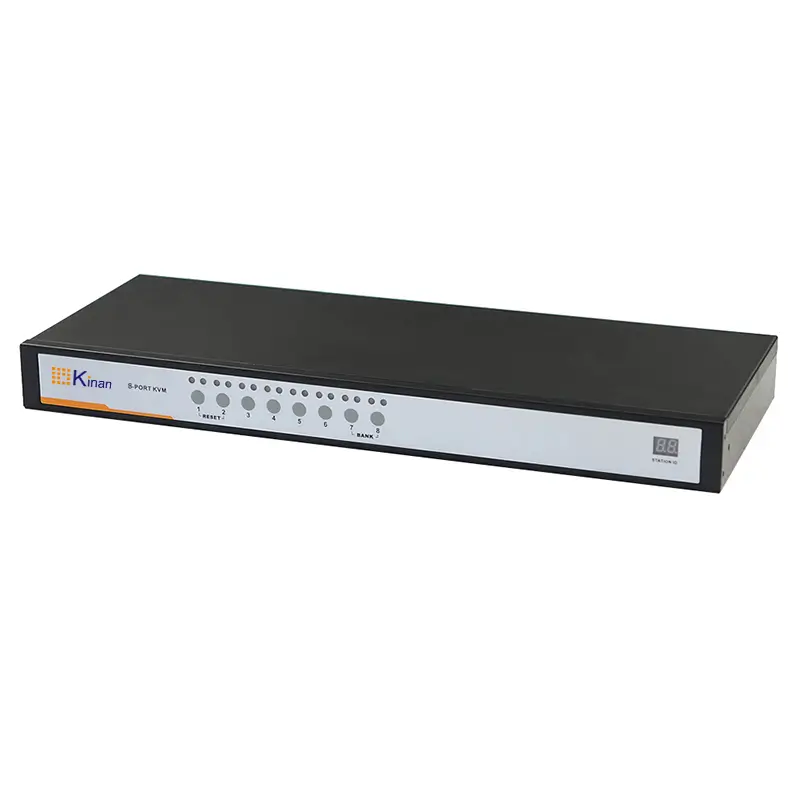

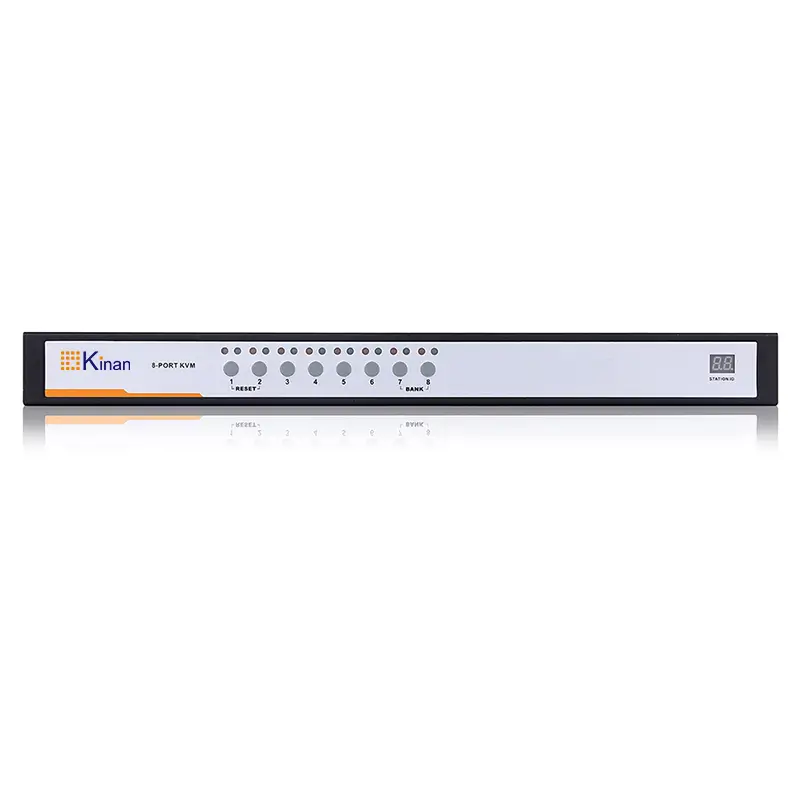

Rack Mount 8 Port USB VGA KVM Switch

Model No.: XU0108

  • 1U design-Occupies only 1U of the rack space
  • A single console controls up to 8 computers
  • Resolution is up to 2048×1536; DDC2B
  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Support daisy-chain connection and control up to 256 computers

Overview

The XU0108 rack mount USB KVM switch allows access and control up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 256 computers can be controlled from a single keyboard-mouse console by cascading to another 31 additional switches.

The XU0108 KVM switch supports resolution up to 2048×1536; DDC2B. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

The KVM switch supports USB connections for the console and computers. An extra HDB15 port allows an additional VGA monitor to be connected.

Hardware Features

  • 1U design-Occupies only 1U of the rack space
  • Standard VGA connection-Connect to a server or computer via standard VGA connectors
  • Fit for standard 19” rack mounting
  • Support computers with USB keyboard and mouse

Hardware Features

  • 1U design-Occupies only 1U of the rack space
  • Standard VGA connection-Connect to a server or computer via standard VGA connectors
  • Fit for standard 19” rack mounting
  • Support computers with USB keyboard and mouse

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server

High Resolution

  • Resolution is up to 2048×1536; DDC2B

High Resolution

  • Resolution is up to 2048×1536; DDC2B

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Diagram

Connection Diagram XU0108-1

Specification

Model XU0108
Port Selection 8
Computer Connections Select buttons, OSD menu
Connector Console monitor 1x HDB-15 Female(blue)
keyboard 2x USB type A
mouse
KVM port (HDB-15 Female(yellow) 8
Cascade port 1x HDB-15 Female(yellow)
Switch Port selection 8x keys
LED indicator Online(green) 8
Selected(orange) 8
Cascading display 2x 7- Segment (orange)
Input power DC 12V/ 2A
Video signal 2048×1536; DDC2B
Power consumption 3.6W
Emulation Keyboard/Mouse USB
Environment requirements Working Temperature 0-50℃
Store Temperature -20-60℃
Humidity 0-80%RH, Non-condensing
Material Metal
Physical features Weight 2.0kg
Dimension 440x169x43mm

Package Contents

  • 1x Rackmount KVM Switch (XU0108)
  • 1x Power Cord (Regional)
  • 1x Power Adapter
  • 1x Quick Start Guide
  • 2x Mounting Rails
  • 8x USB+VGA KVM Cable (1.8m/6ft)
