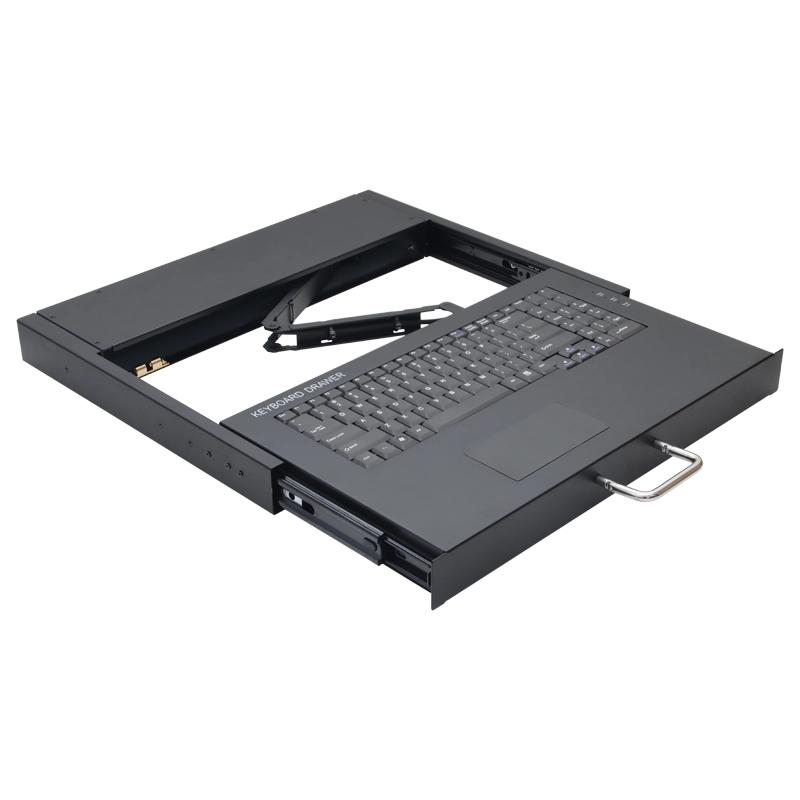

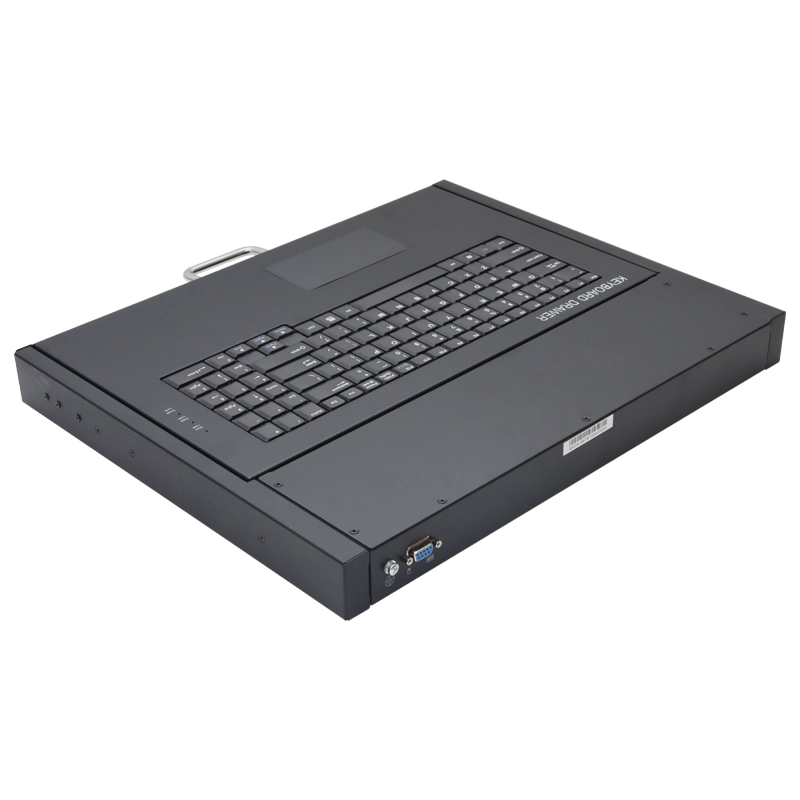

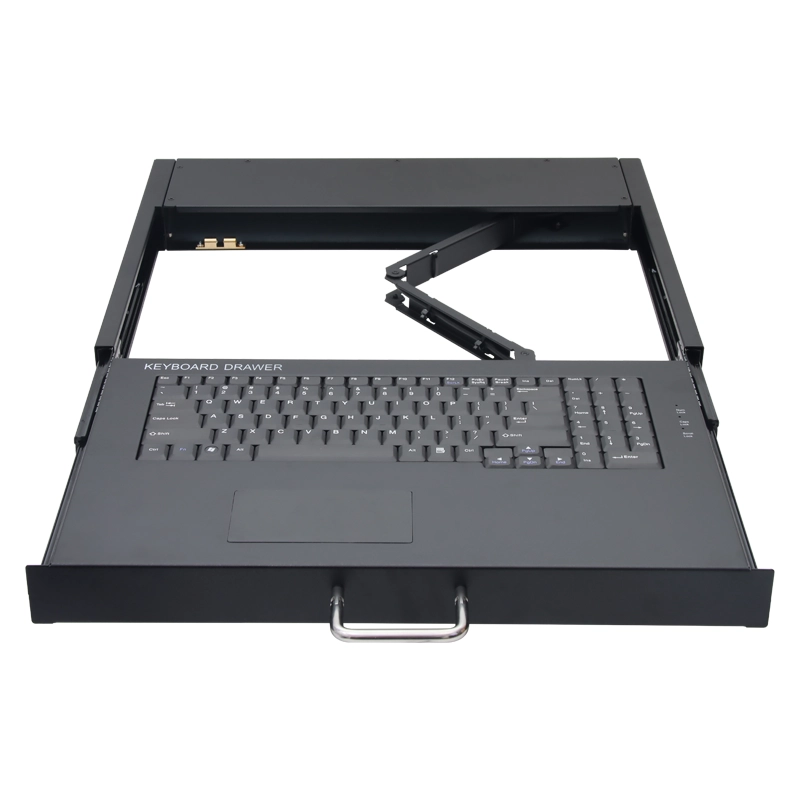

Rack Mount 1U Keyboard Drawer

Model No.: MKDN-19T

  • 1U Rack Mountable – designed to fit a standard 19” rack
  • Support multi-language Keyboard layouts-English, Russian, German, French, UK and Spanish, etc.
  • 99-key keyboard with touchpad
  • Support USB and PS/2 connection
  • Hot pluggable

Overview

MKDN-19T is a rack mount keyboard drawer for keyboard and mouse console. Ultra slim keyboard with 99 keys and numeric keyboard, standard PS/2 port are built in 1U height metal structure that fits for standard 19” rack mounting. It can directly connect and control one computer and needs no software. The touchpad boasts high resolution and high flexibility. The rack mount keyboard tray supports both USB and PS2 connections.

Hardware Features

  • 1U rack mount keybord drawer, designed to fit a standard 19” rack
  • Support USB and PS/2 connection
  • Heavy-duty steel housing
  • Hot pluggable –add or remove computers without having to power down the switch

Hardware Features

  • 1U rack mount keybord drawer, designed to fit a standard 19” rack
  • Support USB and PS/2 connection
  • Heavy-duty steel housing
  • Hot pluggable –add or remove computers without having to power down the switch

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • 99-key keyboard with touchpad

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • 99-key keyboard with touchpad

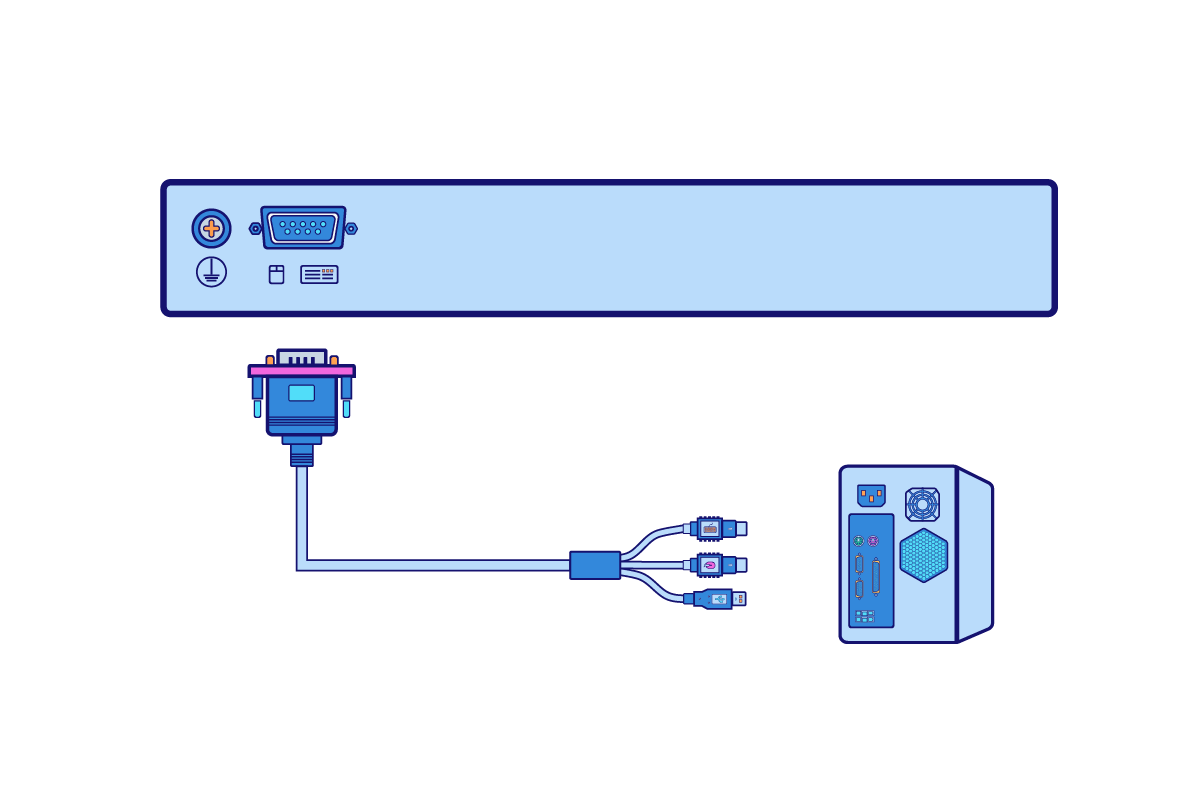

Diagram

Specification

Model MKDN-19T
Computer Connections 1
Control Port (keyboard /mouse) 1x DB9F
PC Port (keyboard /mouse) 1xUSB type A
1x 6P Mini-DIN F(purple)
1x 6P Mini-DIN F(green)
Cable Length 1800mm
Working Temperature 0 ─50 ℃
Store Temperature -20 ─ 60 ℃
Humidity 0─80% RH, non-condensing
N.W. 4kg
Material Metal
Product Dimension (W × D × H) 440mm×355mm×42.5mm
Package Dimension (W × D × H) 532mm×455mm×125mm

Package Contents

  • 1x MKDN-19T keyboard drawer
  • 2x Mounting Rails
  • 1x USB+PS2+VGA cable
  • 1x User Manual
