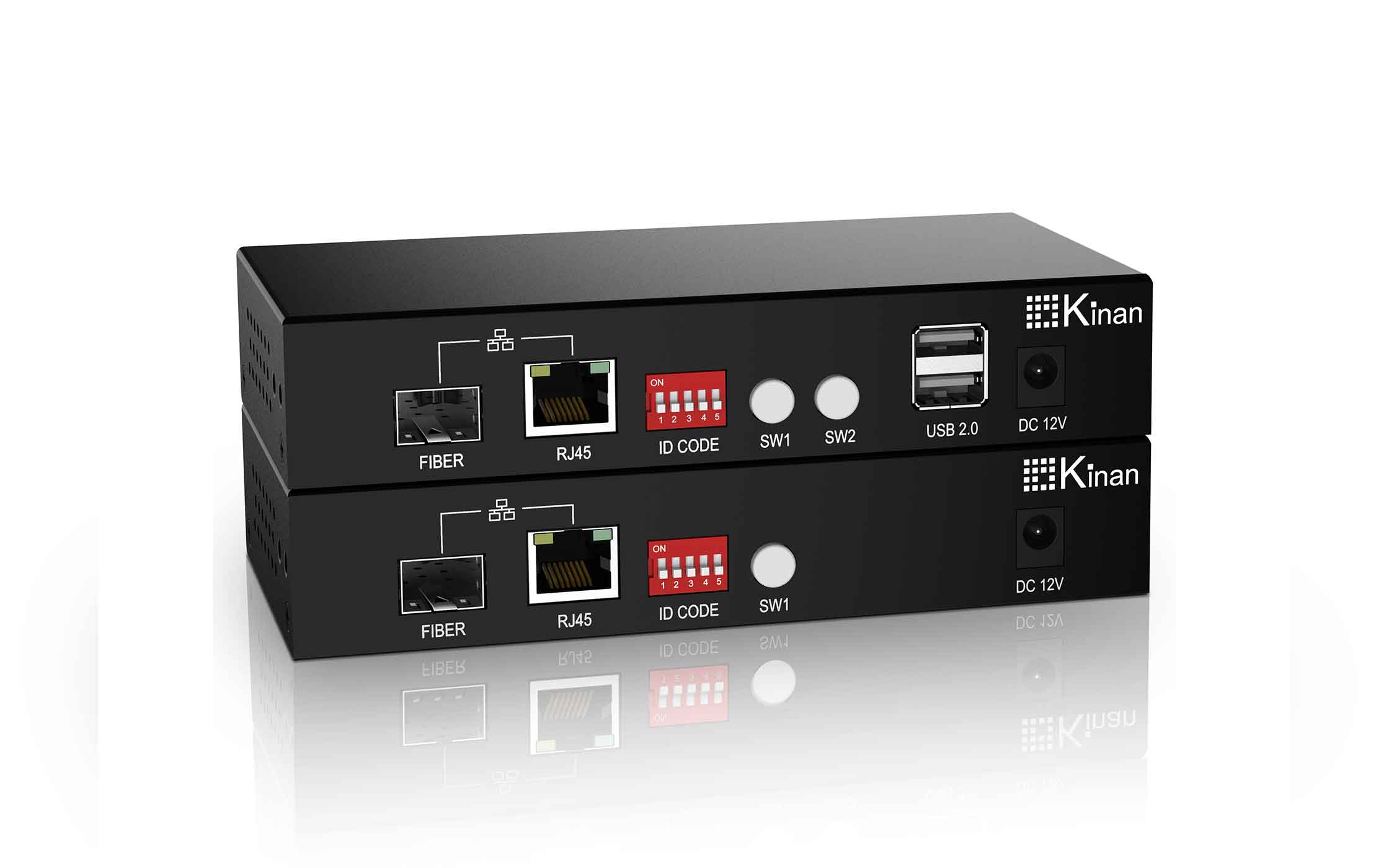

HDMI® FHD Digital KVM Extender over Fiber/Cat5

Model No.: KFH162S

  • Signals Transmission: Extends HDMI video, audio, USB, RS-232 signals over fiber optic cable or CATx cable.
  • Number of Screens: 1
  • Transmission Distance: Up to 10km.
  • High Resolution: Up to 3840×2160@30Hz.
  • High Speed USB 2.0 Ports: Supports a wide range of USB peripherals, such as encrypted U disk, face recognition and other USB devices, connect via the built-in 4 USB hub.
  • Plug and Play: There is no need to install any software.

Overview

The KFH162S HDMI digital KVM extender delivers FHD HDMI video, USB2.0, keyboard, mouse and stereo audio signals up to a remote desk over fiber optic cable or Cat5 cable.

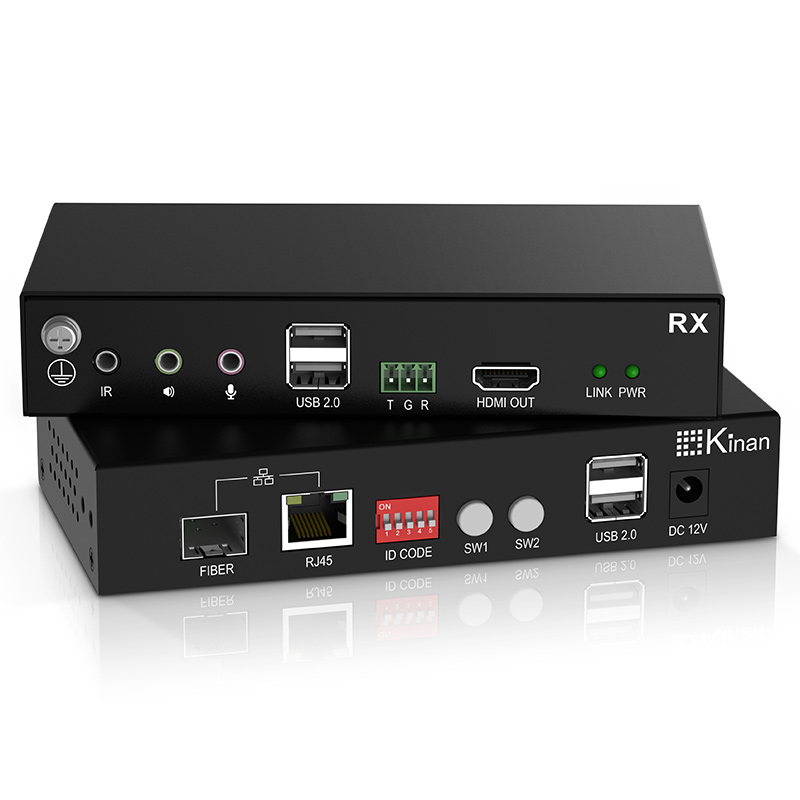

A complete set of KFH162S including Transmitter (KFH162S-TX) and Receiver (KFH162S-RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, mouse, audio player and other USB devices.

The KFH162S supports signal transmission over fiber optic cable or Cat5 cable, it supports single-mode and multi-mode optical fiber, the maximum transmission distance of single mode is 10km, for multimode the transmission distance is up to 300m. If you connect the KFH162S-TX and KFH162S-RX with a Cat5 cable, the transmitting distance is up to 150m. It supports the transmission of 1 channel high-quality HDMI signals and has a wide range of applications.

Extension Distance

  • Support transmitting distance up to 150m over Cat5 cable.
  • Transmitting distance is up 10km over single mode fiber, 300m over multimode fiber.

Extension Distance

  • Support transmitting distance up to 150m over Cat5 cable.
  • Transmitting distance is up 10km over single mode fiber, 300m over multimode fiber.

High Resolution

  • HDMI FHD video, resolution up to 3840×2160@30Hz.

High Resolution

  • HDMI FHD video, resolution up to 3840×2160@30Hz.

FHD digital video, real time control

  • Extends FHD HDMI video, USB2.0, keyboard, mouse and stereo audio signals up to a remote desk over fiber optic cable or Cat5 cable.

FHD digital video, real time control

  • Extends FHD HDMI video, USB2.0, keyboard, mouse and stereo audio signals up to a remote desk over fiber optic cable or Cat5 cable.

Supports USB 2.0

  • Supports a wide range of USB peripherals, such as encrypted U disk, face recognition and other USB devices, connect via the built-in 4 USB hub

Supports USB 2.0

  • Supports a wide range of USB peripherals, such as encrypted U disk, face recognition and other USB devices, connect via the built-in 4 USB hub

High quality audio

  • Bidirectional Analog Audio: line in/out with microphone and headphone support

High quality audio

  • Bidirectional Analog Audio: line in/out with microphone and headphone support

Plug and Play

  • Easy to install, no software required – connecting cables to the devices is all it takes

Plug and Play

  • Easy to install, no software required – connecting cables to the devices is all it takes

Supports connect to a network switch

  • Supports connect to a network switch (1000M)
  • Supports point-to-point dial-up connection

Supports connect to a network switch

  • Supports connect to a network switch (1000M)
  • Supports point-to-point dial-up connection

Diagram

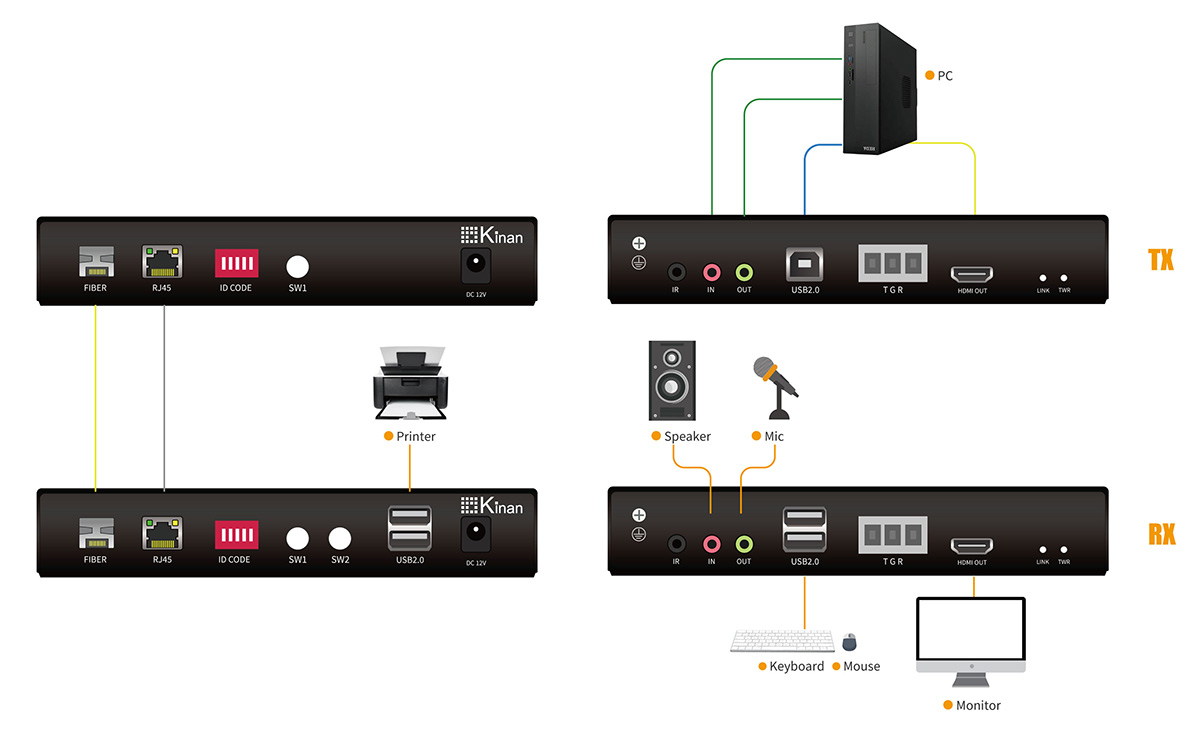

Connection Diagram KFH162S-1

Specification

Model KFH162S_TX KFH162S_RX
Interfaces HDMI in 1 NA
HDMI out NA 1
Power 12V 12V
SFP SFP x 1 SFP x 1
Microphone 3.5mm Stereo 3.5mm Stereo Jack (Pink)
Jack (Pink)
Speaker 3.5mm Stereo 3.5mm Stereo Jack (Green)
Jack (Green)
LAN RJ45 RJ45
USB Type B 1 N/A
USB 2.0 N/A USB x 4
Resolution 3840×2160@30Hz
Connection Cable Fiber optical cable or Cat5/6 cable
Power Input DC12V /2A Fiber optical cable or Cat5/6 cable
Power Consumption 3W 2.5W (USB peripherals not included)
Operating Temperature 0–50 ℃
Storage Temperature -20–60 ℃
Humidity 0–80% RH, Non-condensing
Material Metal
Net Weight (kg) 0.4 kg 0.4kg
Product Dimension (W × D × H) 158 mm x 80 mm x 30mm
Package Dimension  (W × D × H) 525 mm x 226 mm x 106mm

Package Contents

  • 1x Transmitter
  • 1x Receiver
  • 1x HDMI cable (1.5m)
  • 1x Audio cable (1.5m)
  • 1x USB cable (USB-A female to USB-B female, 1.5m)
  • 2x Power Adapter
  • 2x Power Cords (Regional)
  • 1x Mounting Kit
  • 1x User Manual
