8 Port USB HDMI® 17″ LCD KVM Switch

Model No.: LH2708

Hardware Structure: Integrated KVM Console with 17″ LCD monitor.
Control of Computers: A single console controls up to 8 computers.
High Video Resolution: The resolution is up to 1280 x 1024 @60Hz.
Computer Switching Choices: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
User-friendly Viewing Angle: The LCD display module can be adjusted up to 108 degrees.
Standard HDMI Connection: Connect to a server or computer via standard HDMI connectors.
Simple Installation: Just connect the cables properly and then start using the LCD KVM switch.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

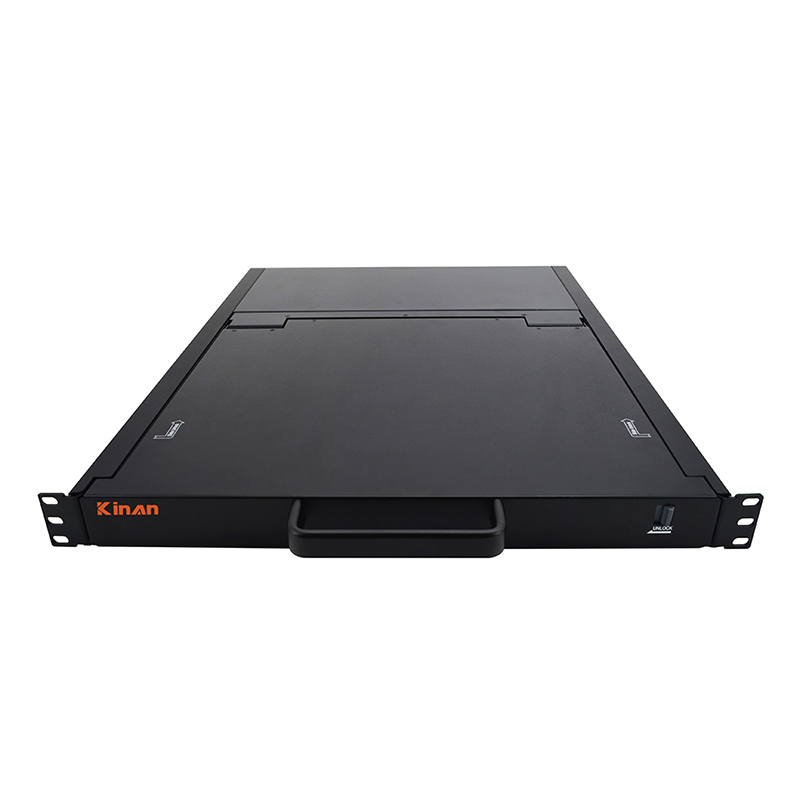

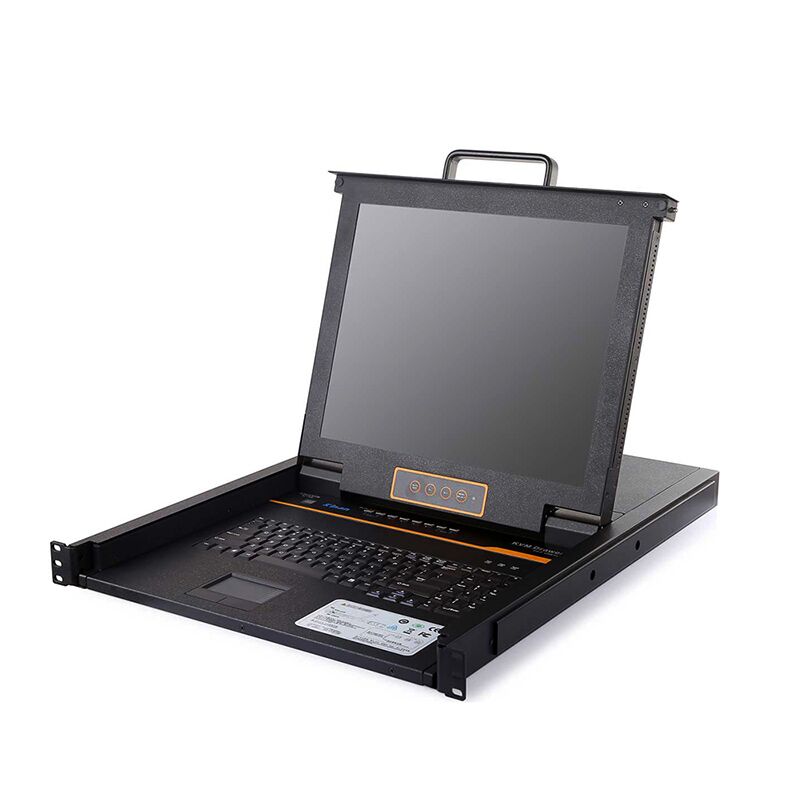

The Kinan’s LH2708 HDMI rackmount LCD console features an integrated 17″ LCD monitor, keyboard and touchpad in a 1U compact design. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor).

The LH2708 server rack monitor and keyboard has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

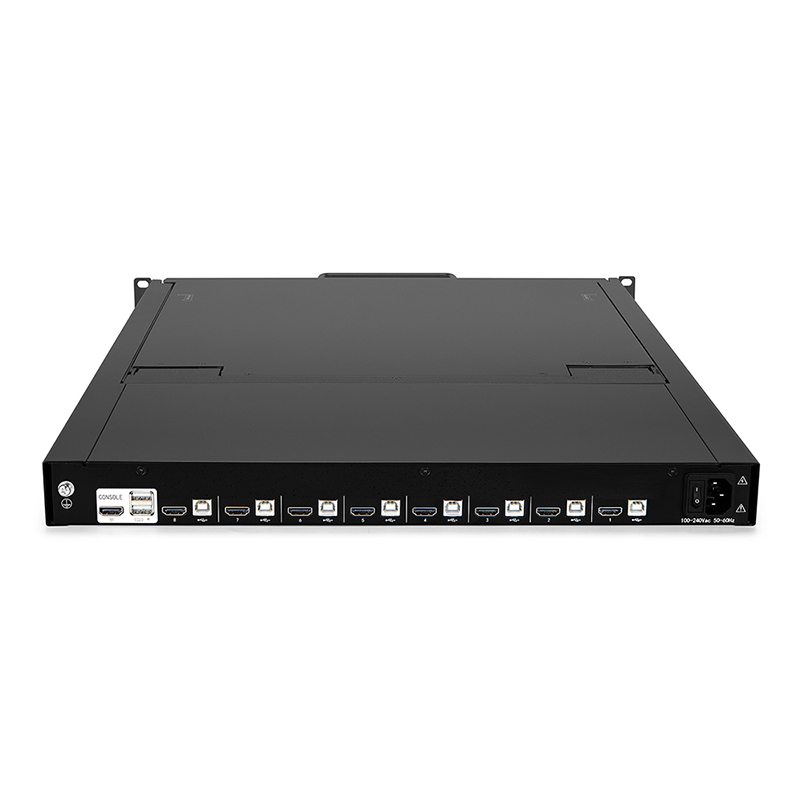

The KVM switch supports USB connections for the computers. An extra HDMI port allows an additional HDMI monitor to be connected.

Hardware Features

Integrated lcd kvm with 17 rack lcd console, keyboard/touchpad and 8 port HDMI KVM switch in a 1U height console
Standard HDMI connection-Connect to a server or computer via standard HDMI connectors

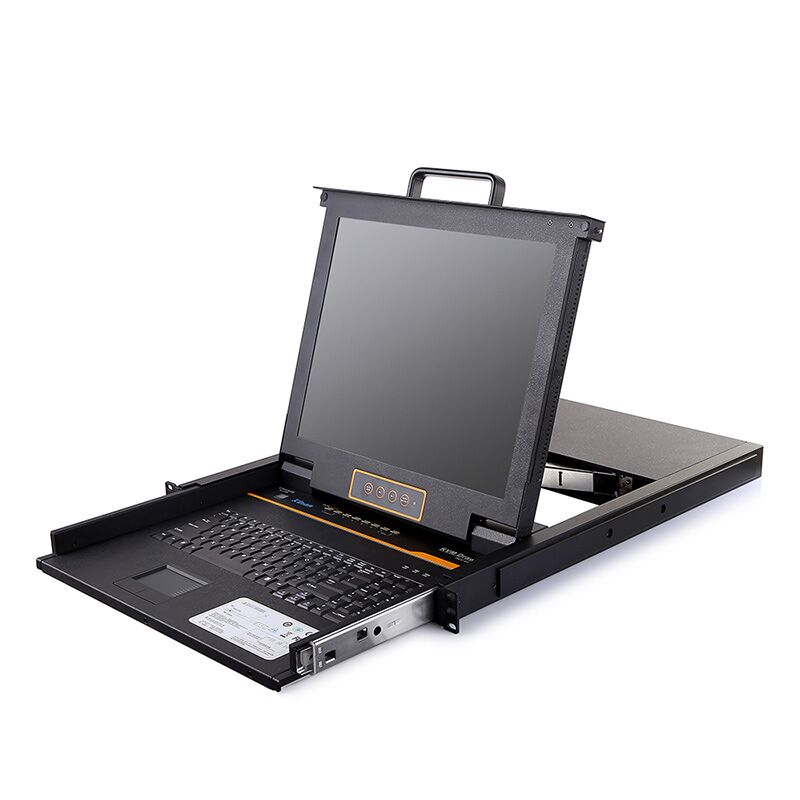

LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
Support computers with USB keyboard and mouse

Hardware Features

Integrated lcd kvm with 17 rack lcd console, keyboard/touchpad and 8 port HDMI KVM switch in a 1U height console
Standard HDMI connection-Connect to a server or computer via standard HDMI connectors
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
Support computers with USB keyboard and mouse

Management

Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Auto scan feature for monitoring user-selected computer
Broadcast mode–operations simultaneously performed on all selected computers
Hot pluggable –add or remove computers without having to power down the switch
Quickly select your computer by naming the server or inputting SN number of the server
On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

Management

Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Auto scan feature for monitoring user-selected computer
Broadcast mode–operations simultaneously performed on all selected computers
Hot pluggable –add or remove computers without having to power down the switch
Quickly select your computer by naming the server or inputting SN number of the server
On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

High Resolution

17” TFT LCD monitor with highlight, high definition and high resolution
Resolution is up to 1280×1024@60Hz

High Resolution

17” TFT LCD monitor with highlight, high definition and high resolution
Resolution is up to 1280×1024@60Hz

Security

Two level password security–only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each

Security

Two level password security–only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

Multi-language support–English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Keyboard

Multi-language support–English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Wide Compatibility

Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

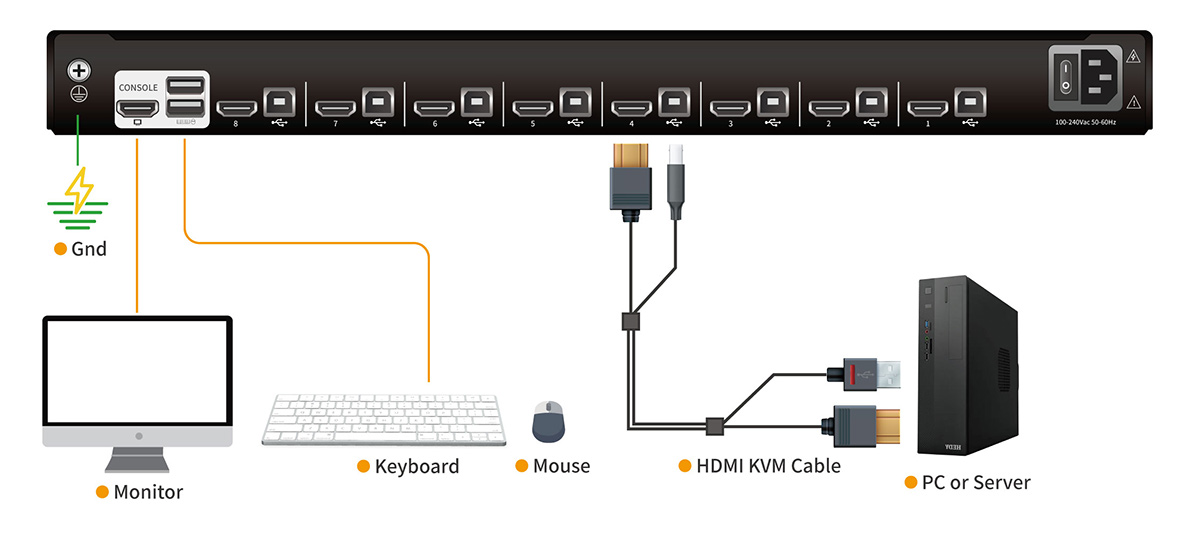

Diagram

Specification

Model		LH2708
Computer connections	Direct	8
Computer connections	Max	8
Port emulation	Keyboard, mouse	USB
LCD monitor	LCD model	SXGA TFT
	View area	17 “
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		Front panel pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		22W
Mounting distance		600~850mm (L=420mm)
Mounting distance		Mounting rails can be customized for other mounting distance.
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		12.8 kg
Product dimension (W × D × H)		448mm×581mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72V DC
