8 Port USB HDMI 17.3” Widescreen LCD KVM Switch

Model No.: LH1708

(LH1808: 18.5″ widescreen LCD)
Integrated KVM Console with 17.3” widescreen LCD monitor
A single console controls up to 8 computers
Resolution is up to 1920 x 1080 @60Hz
Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Standard HDMI connection-Connect to a server or computer via standard HDMI connectors

Overview

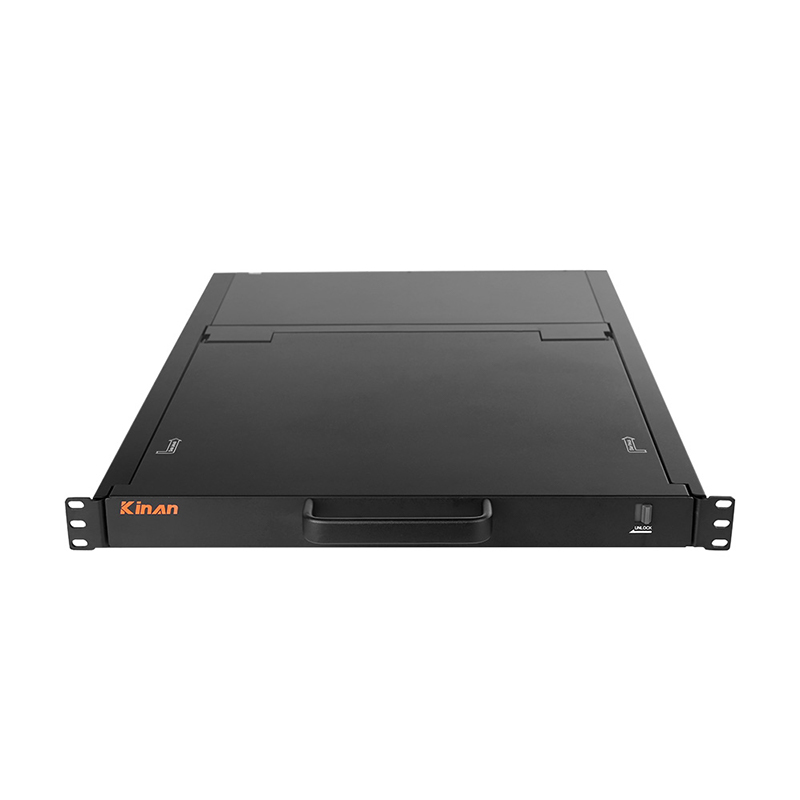

The Kinan’s LH1708 HDMI rackmount LCD console features an integrated 17.3″ widescreen LCD monitor, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor).

The LH1708 HDMI KVM console has a built-in LCD monitor that supports resolution up to 1920×1080@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

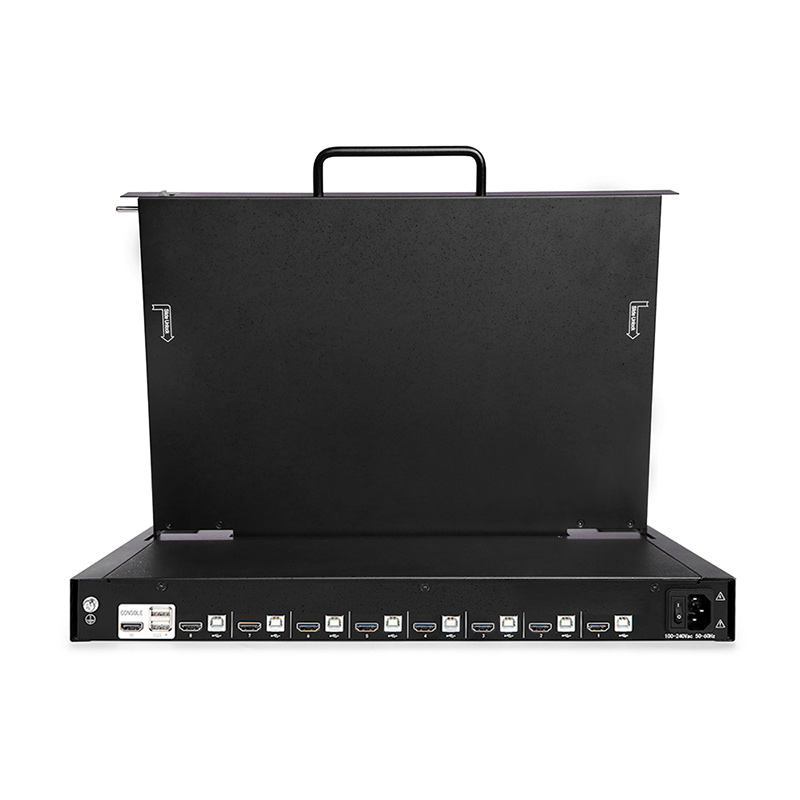

The KVM switch supports both USB and PS/2 connections for the computers. An extra HDMI port allows an additional HDMI monitor to be connected.

Hardware Features

Integrated KVM Console with 17.3” LCD screen, keyboard/touchpad and 8 port HDMI KVM switch in a 1U height console
Standard HDMI connection-Connect to a server or computer via standard HDMI connectors
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
Support computers with USB keyboard and mouse

Hardware Features

Integrated KVM Console with 17.3” LCD screen, keyboard/touchpad and 8 port HDMI KVM switch in a 1U height console
Standard HDMI connection-Connect to a server or computer via standard HDMI connectors
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
Support computers with USB keyboard and mouse

Management

Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Auto scan feature for monitoring user-selected computer
Broadcast mode–operations simultaneously performed on all selected computers
Hot pluggable –add or remove computers without having to power down the switch
Quickly select your computer by naming the server or inputting SN number of the server
On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

Management

Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Auto scan feature for monitoring user-selected computer
Broadcast mode–operations simultaneously performed on all selected computers
Hot pluggable –add or remove computers without having to power down the switch
Quickly select your computer by naming the server or inputting SN number of the server
On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

High Resolution

17.3” FHD LCD monitor with highlight, high definition and high resolution
Resolution is up to 1920 x 1080 60Hz

High Resolution

17.3” FHD LCD monitor with highlight, high definition and high resolution
Resolution is up to 1920 x 1080 60Hz

Security

Two level password security–only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each

Security

Two level password security–only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

Multi-language support–English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Keyboard

Multi-language support–English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Wide Compatibility

Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Diagram

Specification

Model		LH1708
Computer connections	Direct	8
Computer connections	Max	8
Port emulation	Keyboard, mouse	USB
LCD monitor	LCD model	FHD TFT
	View area	17.3″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m² (T y p)
	Contrast ratio	800: 1(T y p)
	Pixel pitch(mm)	0.1989(H) × 0.1989(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		13W
Mounting distance		510-850mm (L=420mm)
Mounting distance		Mounting bracket can be customized for other mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		10.8kg
Product dimension (W × D × H)		448mm×525.6 mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
