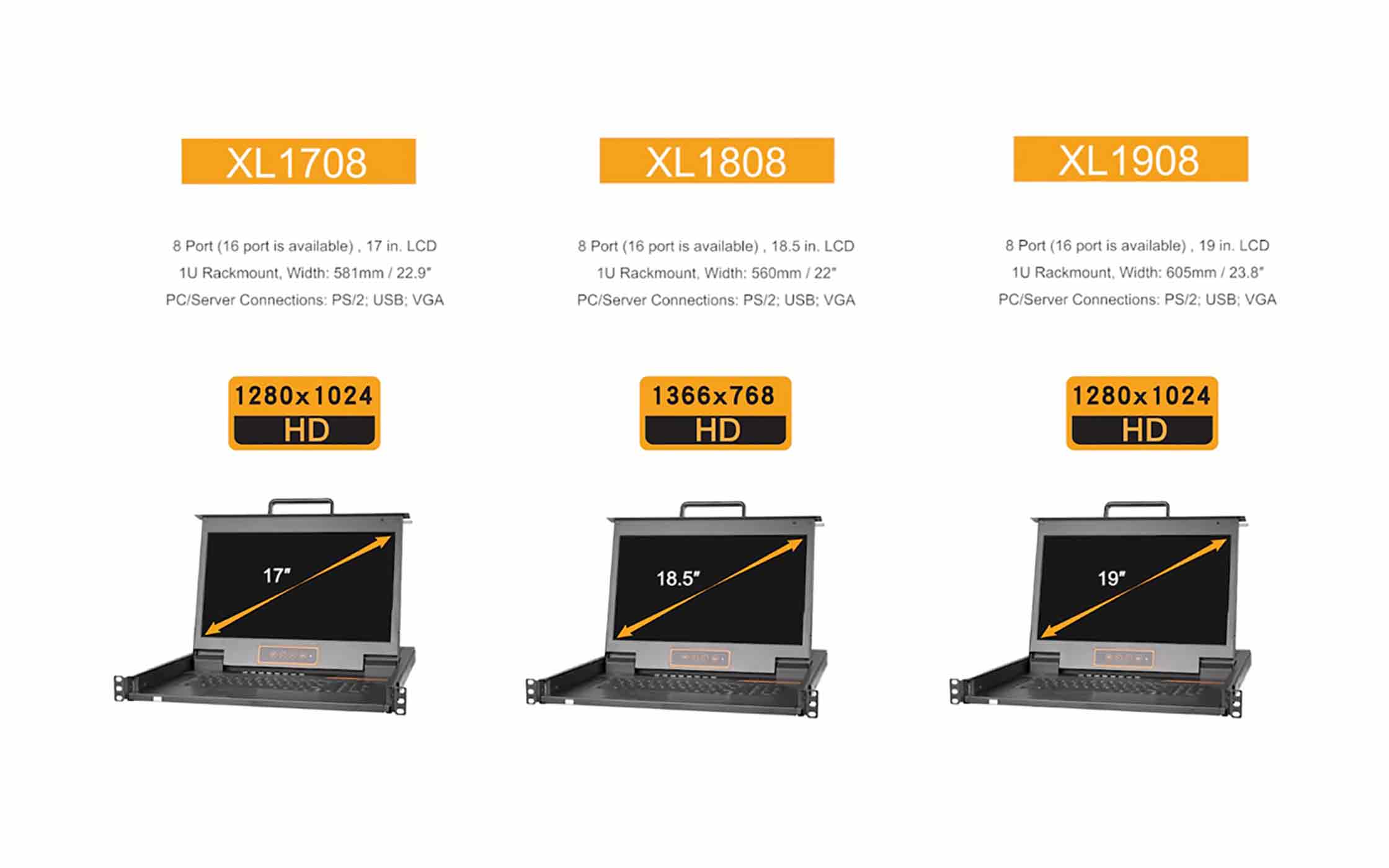

8-Port 18.5″ VGA LCD KVM Switch

Model No.: XL1808

  • Hardware Structure: Integrated KVM Console with 18.5″ LCD monitor.
  • Control of Computers: A single console controls up to 8 computers.
  • High Video Resolution: The resolution of this LCD KVM switch is up to 1366 x 768 @60Hz.
  • Easy Computer Switching: Front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) menu.
  • Daisy-chain Connection: Support Daisy-Chain Connection and control up to 256 computers.
  • Flexible LCD Module:  It can be opened up to 108 degrees for a good viewing experience.

Overview

The Kinan’s XL1808 kvm monitor switch features an integrated rackmount monitor, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 256 by daisy-chaining up to 31 XM0108 KVM Switches.

The XL1808 keyboard monitor mouse switch has a built-in LCD monitor that supports resolution up to 1366×768@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD). The LCD KVM switch supports USB connection for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.

Hardware Features

  • Integrated rack mount drawer with 18.5-inch LCD monitor, keyboard/touchpad and 8 port KVM switch in a 1U height console
  • Standard VGA connection-Connect to a server or computer via standard VGA connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Supports computers with USB and PS/2 keyboard and mouse

Hardware Features

  • Integrated rack mount drawer with 18.5-inch LCD monitor, keyboard/touchpad and 8 port KVM switch in a 1U height console
  • Standard VGA connection-Connect to a server or computer via standard VGA connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Supports computers with USB and PS/2 keyboard and mouse

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

High Resolution

  • 18.5-inch TFT LCD KVM monitor with highlight, high definition and high resolution
  • Optimum resolution is up to 1366×768@60Hz

High Resolution

  • 18.5-inch TFT LCD KVM monitor with highlight, high definition and high resolution
  • Optimum resolution is up to 1366×768@60Hz

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Diagram

Connection Diagram XL1808-1

Specification

Model XL1808
Computer connections Direct 8
Max 256
Port emulation Keyboard, mouse USB
LED monitor LED model WXGA TFT
View area 18.51”
Optimum resolution 1366×768@60Hz
Display color 16.7 M
Brightness 250cd/m²( T y p )
Contrast ratio 1000 : 1 ( T y p )
Pixel pitch(mm) 0.300(H) × 0.300(W)
Mouse X/Y resolution >1000 points /inch, (40 points/mm)
Roll wheel Supports scroll wheel function
Keyboard 99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection pushbuttons, hotkeys, OSD menu
Input power 100V- 240Vac, 50-60Hz, <1.5A
Power consumption 16W
Mounting distance 686-770mm (L=262mm)
Mounting bracket can be customized for other mounting distance
Operating temperature 0—50 ℃
Store temperature -20—60 ℃
Humidity 0—80% RH, non-condensing
Net weight 11.8kg
Product dimension (W × D × H) 448mm×560mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm

Package Contents

  • 1x LCD KVM Switch (XL1808)
  • 1x Power Cord (Regional)
  • 1x Quick Start Guide
  • 2x Mounting Rails
  • 8x USB+VGA KVM Cable (1.8m/6ft)
