4K HDMI AV over IP Extender

Model No.: KEH1MS

Support convenient visual control: Use effortlessly via iPad, mobile phone or windows PC
Support visually lossless high-quality video up to 4K@30Hz
Support Plug & Play without configuration
Support IP matrix/ video wall: Multiple videos can be shown at the same time
Support seamless switching: Switching videos quickly without black screen
Support independent RS232 pass-through

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

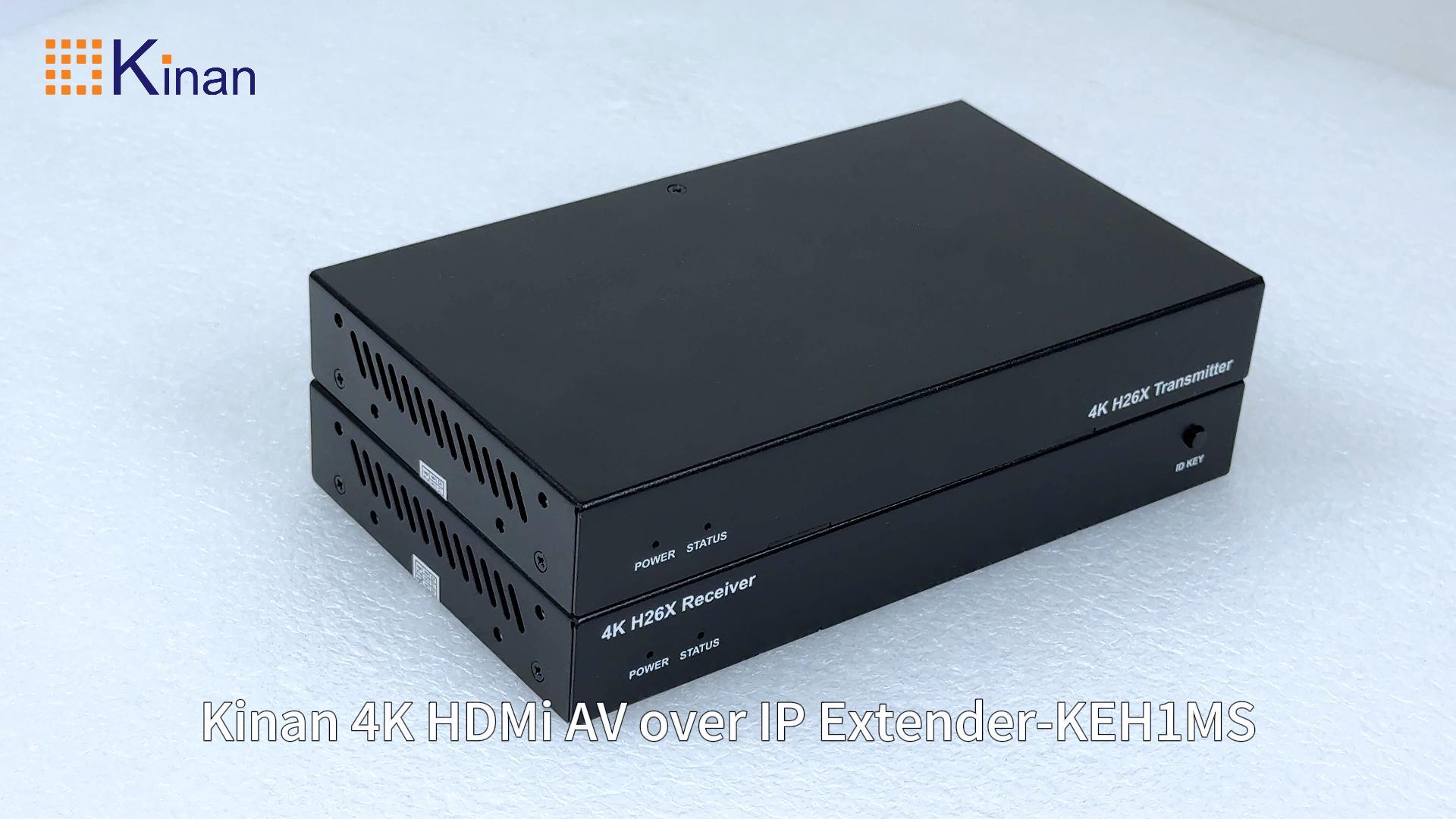

Kinan KEH1MS 4K HDMI AV over IP extender is an audio and video extender that uses the latest H.265 compression technology. It can be used with common managed and unmanaged network switches; it supports resolutions up to 3840×2160@30Hz.

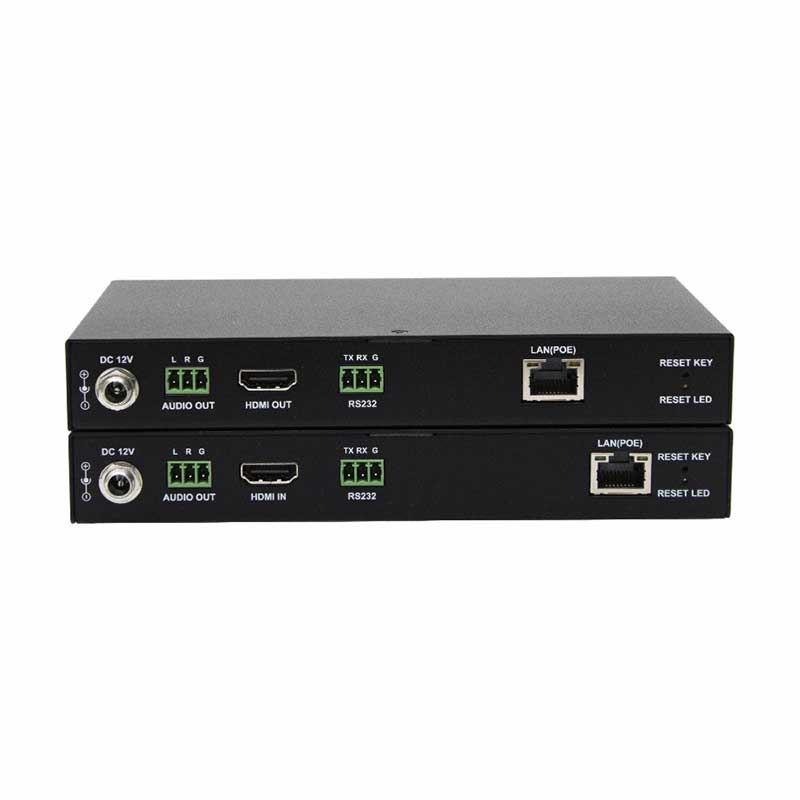

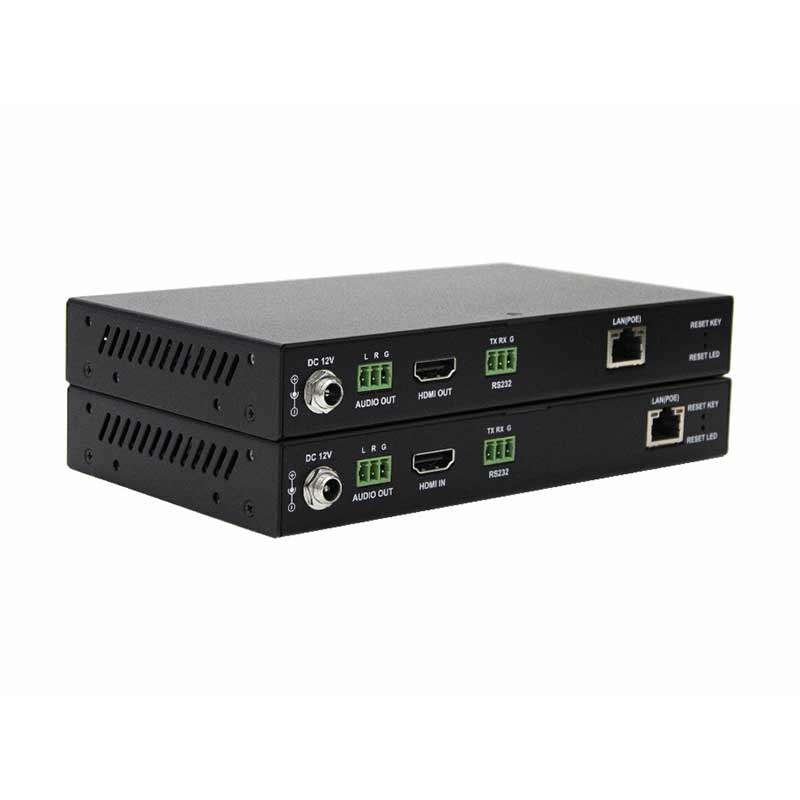

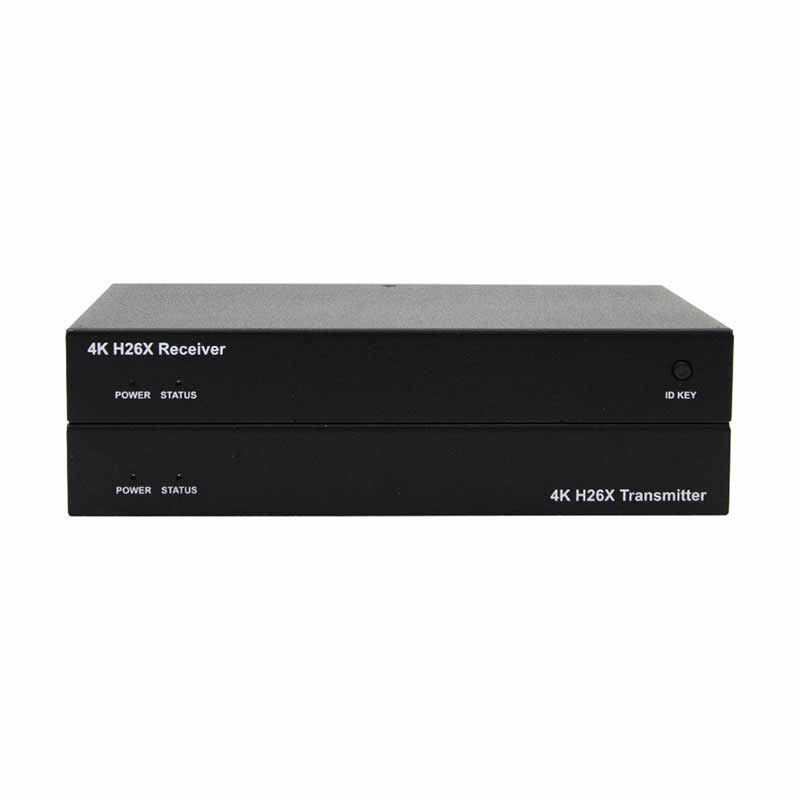

This AV over IP extender consist of a transmitter (KEH1MS_TX) and a receiver (KEH1MS_RX). Users can easily control it by installing the “VDirector” app (support iOD/Android/Windows). It easily builds an IP matrix or a video wall. In addition, it is easy to set up and operate.
Kinan KFH1MS is an ideal solution for different application scenarios, such as sports bars, conference centers, digital signage, etc.

Hot-plugging

This HDMI AV over IP extender is used with a switch without need for other special configuration.
Works flawlessly with universal Ethernet switches; no need to configure IGMP.

Hot-plugging

This HDMI AV over IP extender is used with a switch without need for other special configuration.
Works flawlessly with universal Ethernet switches; no need to configure IGMP.

Support IP Matrix or Video Wall

Multiple videos can be selected to show on the video wall that consist of multiple computer monitors.
Support IP matrix for centralized management of audio and video sources.

Support IP Matrix or Video Wall

Multiple videos can be selected to show on the video wall that consist of multiple computer monitors.
Support IP matrix for centralized management of audio and video sources.

Easy To Use

Users can easily install the “VDirector” app on their mobile phone or iPad to achieve visual control by dragging the selected video directly.

Easy To Use

Users can easily install the “VDirector” app on their mobile phone or iPad to achieve visual control by dragging the selected video directly.

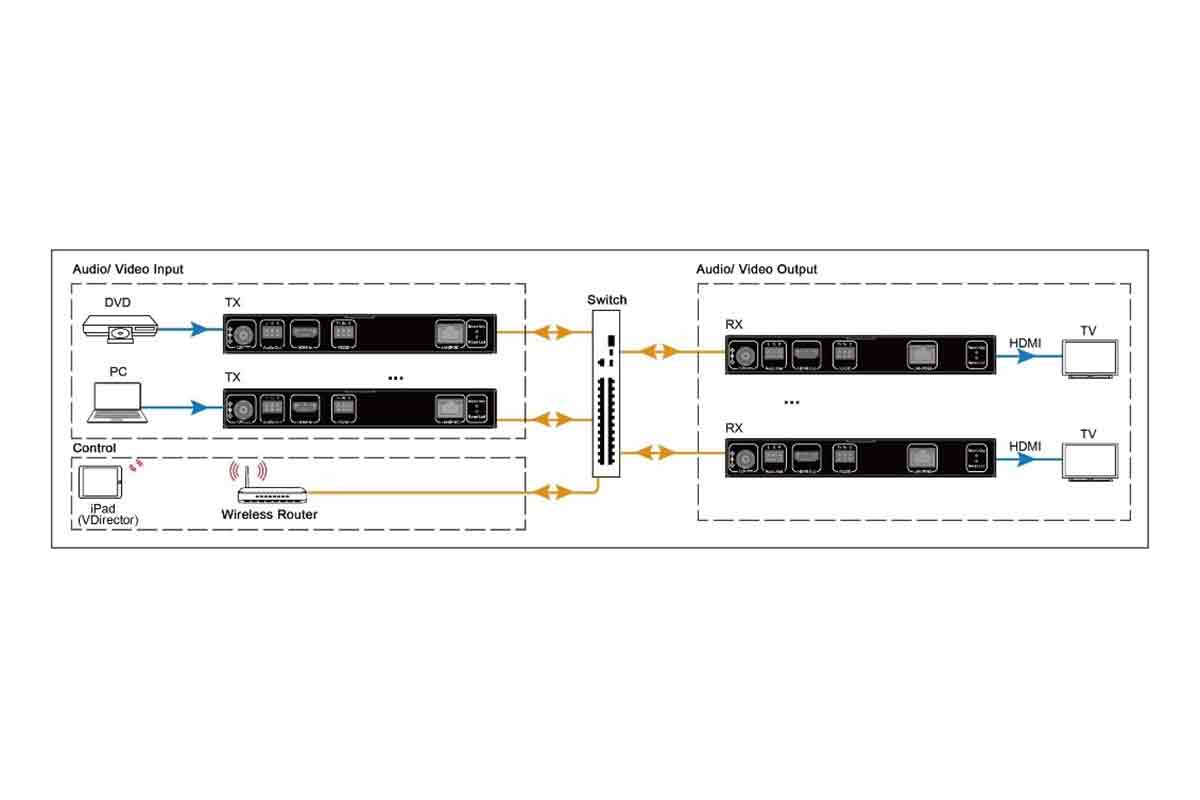

Diagram

Specification

Model No.		KEH1MS_TX	KEH1MS _RX
Interfaces	HDMI Input	1	NA
	HDMI Output	NA	1
	LAN	1	1
	Audio	1	1
	RS232	1	1
Video Protocol		H.265
Resolution		3840×2160@30Hz
Audio Type		MPEG4-AAC stereo
Visual Control		VDirector App (iOS/Android/Windows)
Power Input		DC12V / 1A	DC12V /1A
Power Consumption		3.6W	3.6W
Operating Temperature		+32°F ~ +113°F (0°C ~ +45°C)
Storage Temperature		-4°F ~ 140°F (-20°C ~ +70°C)，
Humidity		10% ~ 90%, Non-condensing
Material		Metal
ESD Protection		Human body discharge mode: ±8kV (air-gap discharge)/±4kV (contact discharge)
Net Weight (kg)		0.6 kg	0.6kg
Dimension (W × D × H)		175mm x 25mm x 100.2mm
