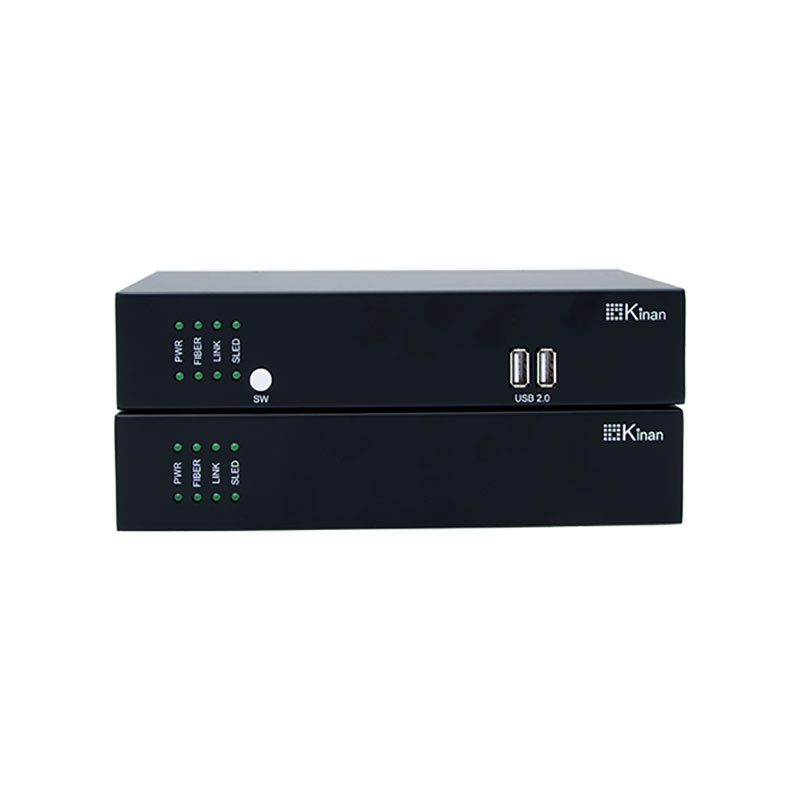

4K DisplayPort IP KVM Matrix Extender

Model No.: KFP286K

  • High Resolution: This DP IP KVM matrix extender supports up to 3840 x 2160@60Hz, and it support USB2.0 and 2 channel digital audio.
  • Low Latency: Support lossless and low latency video transmissions.
  • Transmission Rate: The USB transmission rate can be up to 480Mbit/s, which improves the speed of dealing with data. And the transmission is done through fiber and network.
  • Connections: Point-to-point (p2p) connection and Matrix connection.
  • User-friendly Funtions: It supports seamless switching and allow remote computer power on and off.

Overview

Kinan KFP286K IP KVM matrix extenders (KFP286_TX & KFP286_RX) are highly optimized with impressive features. The supported resolution is up to 3840 x 2160@60Hz. They support point-to-point (P2P) connection and matrix connection. And the transmission distance of the point-to-point connection is 200m. Additionally, the matrix switching system supports up to 9999 nodes by using a centralized management software, and it can support 40 nodes without using a centralized management software.

Support High Resolution

  • The supported resolution is up to 3840 x 2160@60Hz.

Support High Resolution

  • The supported resolution is up to 3840 x 2160@60Hz.

Collaborative Shared Connections (Push & Get)

  • Operators have the ability to share computers and push/get video from one console to/from another one.

Collaborative Shared Connections (Push & Get)

  • Operators have the ability to share computers and push/get video from one console to/from another one.

Flexible Connection

  • Support point-to-point connection and matrix connection. The matrix switching system composed of extenders supports even up to 9999 nodes by using a centralized management software, and 40 nodes without using this software.

Flexible Connection

  • Support point-to-point connection and matrix connection. The matrix switching system composed of extenders supports even up to 9999 nodes by using a centralized management software, and 40 nodes without using this software.

Matrix Centrally Management Unit

  • The Kinan matrix manager unit is an easy-to-use hardware to configure, manage, and monitor all transmitter and receiver units. With an intuitive interface, you can configure user access rights and get a real-time overview of system connections and users through the manager unit.

Matrix Centrally Management Unit

  • The Kinan matrix manager unit is an easy-to-use hardware to configure, manage, and monitor all transmitter and receiver units. With an intuitive interface, you can configure user access rights and get a real-time overview of system connections and users through the manager unit.

Diagram

Specification

Specifications KFP286K _TX KFP286K_RX
Connections DisplayPort input 2 N/A
DisplayPort output N/A 2
Power 2x 12V 2x 12V
LAN port 2x RJ45 2x RJ45
Optical Module 2x SFP+ 2x SFP+
Mic 3.5mm Stereo Jack (Green) 3.5mm Stereo Jack (Pink)
Speaker 3.5mm Stereo Jack (Pink) 3.5mm Stereo Jack (Green)
Square USB 1 N/A
USB 1 4
Resolution 3840×2160@60Hz
Cable CAT5e/6/7 or Optical Fiber Cable
I/R Value DC12V / 3A DC12V / 3A
Power consumption 15W 16W
Operating temperature 0—50 ℃
Storage temperature -20—60 ℃
Humidity 0—80% RH, non-condensing
Material Metal
Net weight(kg) 0.94 kg 0.94kg
Product dimension (W × D × H) 212mm x 124.3 mm x 44mm
Package dimension (W × D × H) 243mmx 209mm x 98mm 243mmx 209mm x 98mm

Package Contents

  • 1x Transmitter
  • 1x Receiver
  • 1x DisplayPort cable
  • 1x Audio cable (1.5m)
  • 1x USB cable (USB-A female to USB-B female, 1.5m)
  • 2x Power Adapter
  • 2x Power Cords (Regional)
  • 1x Mounting Kit
  • 1x User Manual
