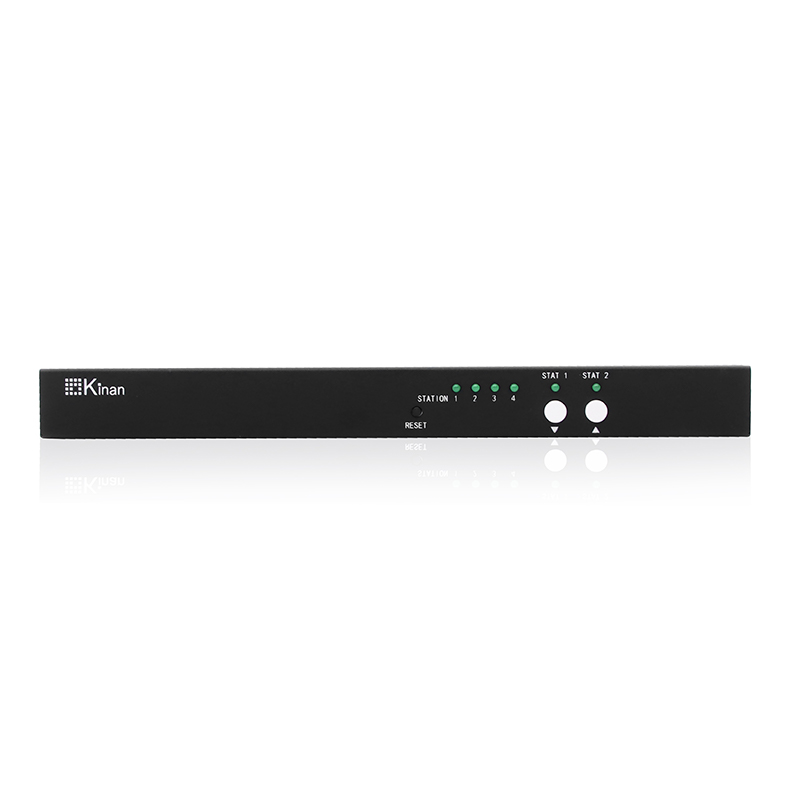

4 Port USB KM Switch

Model No.: KM0104

  • Control up to 4 computers with one set of USB keyboard and mouse
  • Seamless mouse switching
  • Customized monitor layouts with management software
  • Support USB2.0 Hub
  • Hot pluggable
CE
RoHS
Features
Diagram
Specification
Accessory
Download
Related Products

Overview

The KM0104 is a 4-port keyboard-mouse switch that enables users to manage and control up to 4 computers with one set of keyboard and mouse. It supports seamless Keyboard-Mouse Command on 4 computers from a single workstation.

The KM0104 provides various port selection methods, users can switch between connected computers via front panel pushbuttons, keyboard hotkeys and mouse cursor.

The KM0104 is completely driverless, requiring no software. It is compatible with any PC and all major operating systems without the need for software downloads. To fit different installations, the KM0104 also provides management software to help users customize the mouse cursor movement path according to their monitor layouts at the desktop.

KM Switching

  • Single USB keyboard and mouse control up to 4 computers

KM Switching

  • Single USB keyboard and mouse control up to 4 computers

Boundless Switching

  • Simply move the mouse cursor between connected computers to switch the keyboard and mouse focus from one computer to the next

Boundless Switching

  • Simply move the mouse cursor between connected computers to switch the keyboard and mouse focus from one computer to the next

Various Port Selection Methods

  • Port selection via front panel pushbuttons, keyboard hotkey and mouse cursor

Various Port Selection Methods

  • Port selection via front panel pushbuttons, keyboard hotkey and mouse cursor

LED indicator

  • LED indicator lights allow you to know which computer is in control easily

LED indicator

  • LED indicator lights allow you to know which computer is in control easily

No Software Required

  • It is compatible with all major operating systems without the need for software downloads

No Software Required

  • It is compatible with all major operating systems without the need for software downloads

Management Software

  • An GUI-based management software enables users to customize monitor layouts

Management Software

  • An GUI-based management software enables users to customize monitor layouts

USB 2.0

  • Support USB2.0 Hub, 4 PCs share two USB peripheral devices such as mouse, keyboard, flash drive, scanner, USB switch selectors

USB 2.0

  • Support USB2.0 Hub, 4 PCs share two USB peripheral devices such as mouse, keyboard, flash drive, scanner, USB switch selectors

Diagram

Connection Diagram KM0104-1

Specification

Model KM0104
Computer Connections 4
Port selection Pushbuttons, Hotkey, Mouse cursor
Connectors User Console Keyboard/Mouse 1 x double-layer USB type A
Speaker (out) 1 x Min Stereo Audio
PC ports Keyboard/Mouse 4 x USB type B
Speaker (in) 4 x Min Stereo Audio
Power 1 x DC socket
USB2.0 Port 1 x double-layer USB type A
LED OUT 1 x DB9 (Female)
Upgrade Port 1 x USB-C
Button Port selection 2 x buttons
Power 5V- 12V DC
Power Consumption 3W
Emulation Keyboard/Mouse USB
Environment Operating Temperature 0-50℃
Storage Temperature -20-60℃
Humidity 0-80%RH, Non-condensing
Other Features Material Metal, Plastic
Weight 0.9kg
Dimension 263mm x 121 mm x 26.5mm

Package Contents

  • 1x KM0104 4-port KM Switch
  • 4x USB Type A Cable
  • 1x USB-C cable
  • 1x Power Adapter
  • 1x User Manual
