24-Port Cat5 Dual Rail LCD KVM Switch with 19 in. LCD

Model No.: DL2924

  • A short depth dual rail rack console featuring a 19” LCD monitor with an integrated keyboard and touchpad, fits for all standard 19” equipment cabinet.
  • The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack.
  • The 19in. LCD screen supports video resolutions up to 1280 x 1024@60Hz.
  • A single console controls up to 24 computers.
  • Space saving Cat5 connection with CAT5/6 cable.

Overview

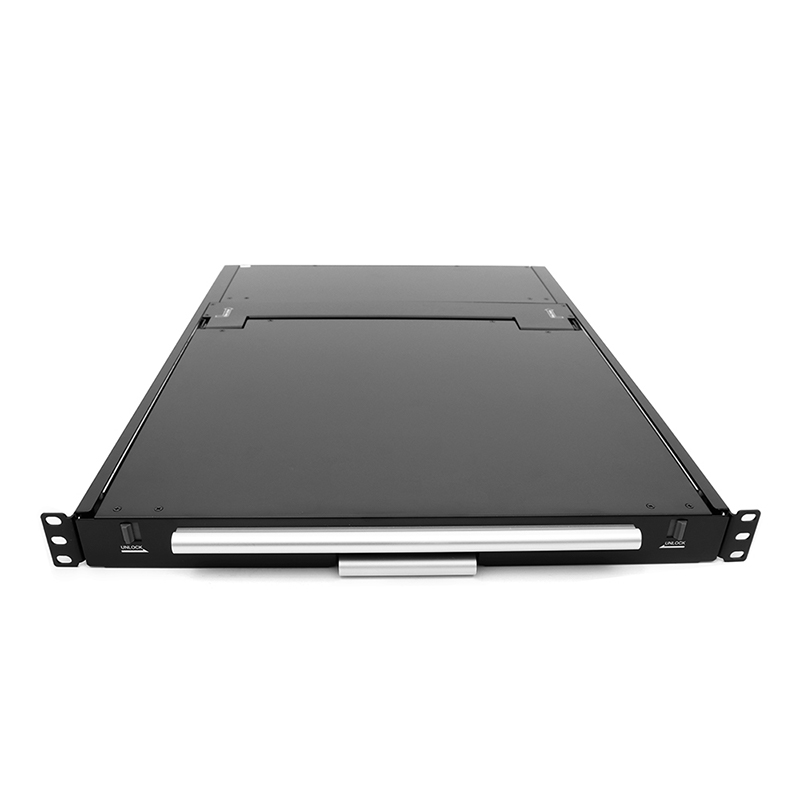

Kinan’s DL2924 dual rail CAT5 keyboard mouse display switch integrates the LCD monitor, ultra-slim keyboard and touchpad in a dual rail housing that occupies only 1U height of space. With the dual rail drawer design, the LCD panel and keyboard/touchpad modules slide independently of each other, which saves much space.

The DL2924 24 port kvm switch allows access and control with up to 24 computers from a single console (keyboard, mouse, and monitor). The number of connected computers can be increased up to 768 by cascading up to 31 KC2132 KVM Switches. With RJ-45 interface and CAT5 cables to connect the server, the transmitting distance is up to 150m.

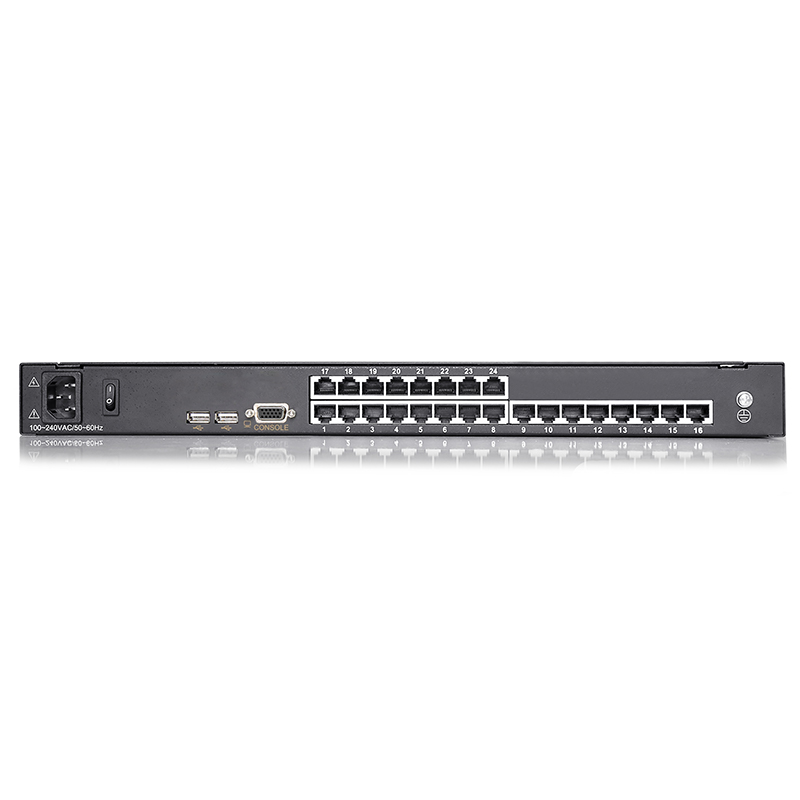

The DL2924 rack mount monitor keyboard has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.

Hardware Features

  • Integrated KVM Console with 19″ LCD monitor, keyboard and touchpad in a dual rail housing
  • Connect to a server or computer via a standard RJ-45 connector with CAT 5e/6 cable
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 keyboard and mouse
  • The LCD monitor and keyboard/touch pad modules slide independently of each other

Hardware Features

  • Integrated KVM Console with 19″ LCD monitor, keyboard and touchpad in a dual rail housing
  • Connect to a server or computer via a standard RJ-45 connector with CAT 5e/6 cable
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 keyboard and mouse
  • The LCD monitor and keyboard/touch pad modules slide independently of each other

Dual Rail Design

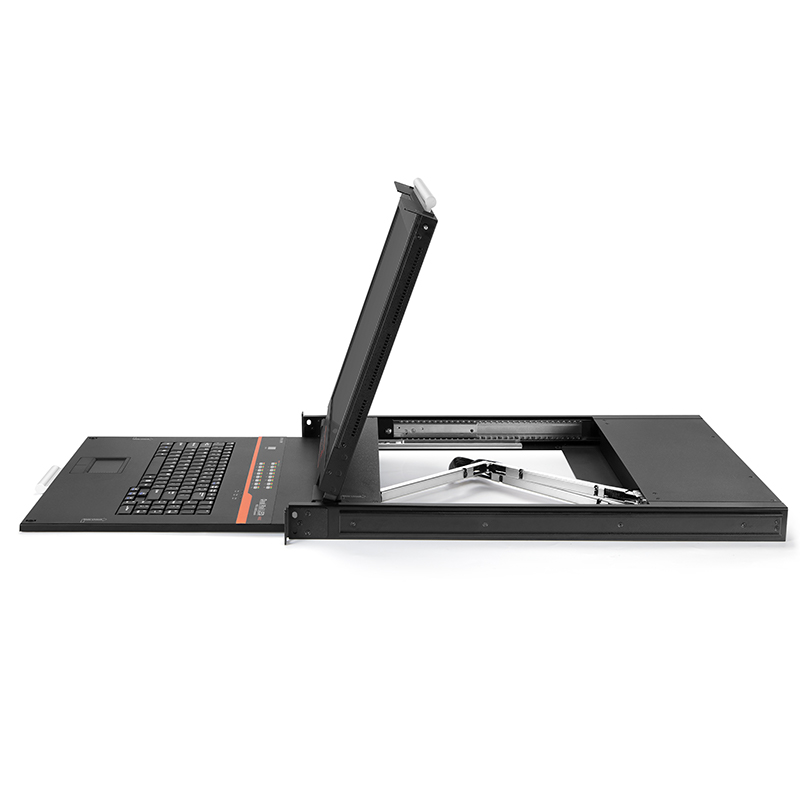

  • The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack, allowing administrators to easily manage computer.

Dual Rail Design

  • The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack, allowing administrators to easily manage computer.

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

High Resolution

  • 19” TFT LCD monitor with highlight, high definition and high resolution
  • Resolution is up to 1280 x 1024 60Hz

High Resolution

  • 19” TFT LCD monitor with highlight, high definition and high resolution
  • Resolution is up to 1280 x 1024 60Hz

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 768 servers can be controlled from a single console

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 768 servers can be controlled from a single console

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Diagram

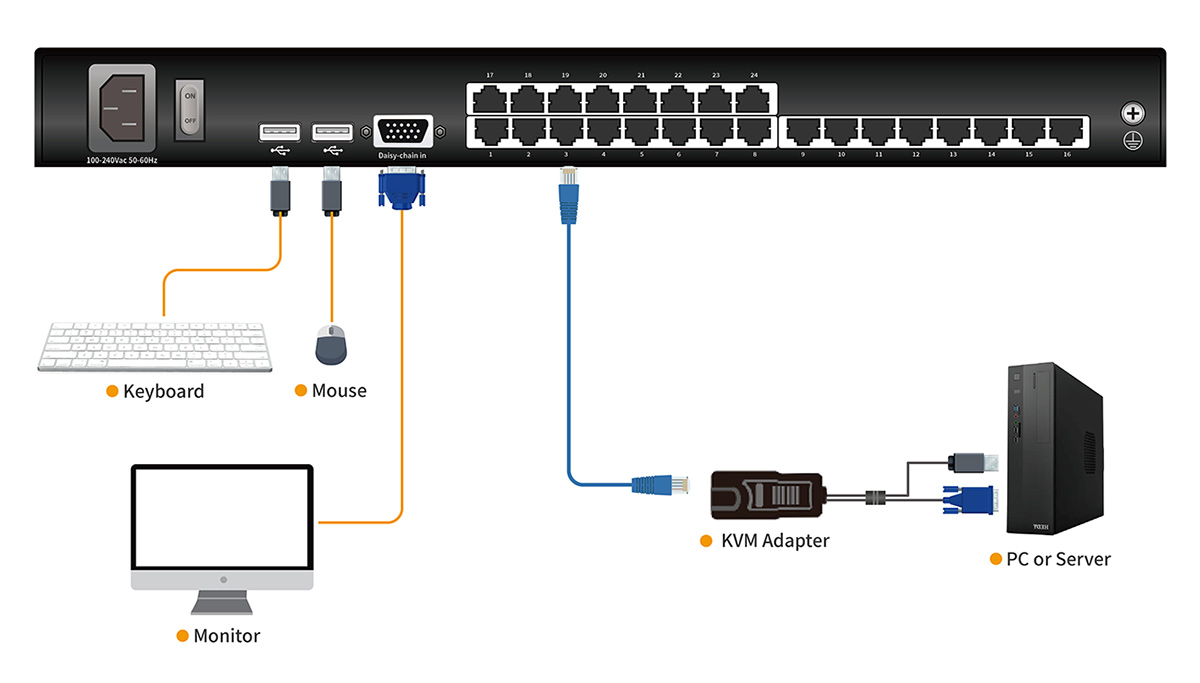

Connection Diagram DL2924-1

Specification

Model DL2924
Computer connections Direct 24
Max 768
Port emulation Keyboard, mouse PS/2, USB
LCD monitor LCD model SXGA TFT
View area 19 “
Optimum resolution 1280×1024@60Hz
Display color 16.7 M
Brightness 250cd/m² (T y p)
Contrast ratio 1000: 1 (T y p)
Pixel pitch(mm) 0.2928 (H) × 0.2928 (W)
Mouse X/Y resolution >1000 points / inch, (40 points/mm)
Touchpad with trackball Eliminates the need for an external mouse
Keyboard 99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection Pushbuttons, hotkeys, OSD menu, mouse
Input power 100V – 240Vac, 50 ~ 60Hz, <1.5A
Power consumption 22W
Operating temperature 0 – 50 ℃
Store temperature -20 – 60 ℃
Humidity 0 – 80% RH, non-condensing
Net weight 13.7 kg
Product dimension (W × D × H) 448mm×605mm×43.5mm
Package dimension (W × D × H) 765mm×615mm×185mm
Optional power input -36V– -72V DC

Package Contents

  • 1x LCD KVM Switch (DL2924)
  • 1x Power Cord (Regional)
  • 1x Quick Start Guide
  • 2x Mounting Rails
  • 1x Cat5e Shield Network Cable
  • 1x Ground Lead
