2 Port HDMI KVM Switch

Model No.: HD1102

One USB console controls two HDMI interface computers
The resolution of this two-port KVM switch is up to 4K (3840×2160 60Hz)
Convenient computer switching via front panel buttons and keyboard hotkeys
Support daisy-chain and cascade connection
Hot pluggable –add or remove computers without having to power down the switch

Get A Free Quote

Diagram

Related Products

Overview

Kinan HD1102 2 port HDMI KVM switch is KVM switch with audio for small offices or home uses where users can get access to 2 computers by using a single mouse, keyboard and monitor. Users can switch between PCs or servers via front panel buttons and keyboard hotkeys.

Kinan’s HD1102 two-port KVM switch provides HDMI connections with superior video resolution up to 4K (3840 x 2160 @ 60 Hz). This KVM switch has 2 USB2.0 ports, allowing 2 computers to share U disk, scanner, printer, computer camera, etc., making your work more convenient and efficient.

This HDMI USB switch is compatible with multiplatform—Windows2000/XP/Vista, Linux, Mac, and etc. Small yet powerful, the HD1102 2 port KVM switch supports hot-pluggable function— add or remove computers without shutting down the switch.

2 Port HDMI KVM Switch

One USB console controls two HDMI interface computers
Easy switching between PCs via front panel pushbuttons, keyboard hotkeys

2 Port HDMI KVM Switch

One USB console controls two HDMI interface computers
Easy switching between PCs via front panel pushbuttons, keyboard hotkeys

Superior Video Quality

Supports resolutions of up to 4K (3840×2160 60Hz)
Supports widescreen resolutions

Superior Video Quality

Supports resolutions of up to 4K (3840×2160 60Hz)
Supports widescreen resolutions

USB 2.0 Hub

The HD1102 two-port KVM switch has 2 USB2.0 ports, allowing 2 computers to share U disk, scanner, printer, computer camera, etc.

USB 2.0 Hub

The HD1102 two-port KVM switch has 2 USB2.0 ports, allowing 2 computers to share U disk, scanner, printer, computer camera, etc.

Wide Compatibility

Compatible with windows 10/8/7 / XP / Vista (32/64-bit), Mac, Linux, Sun, etc.

Wide Compatibility

Compatible with windows 10/8/7 / XP / Vista (32/64-bit), Mac, Linux, Sun, etc.

Application

The HD1102 HDMI KVM switch is suitable for offices, multimedia teaching, video conferencing, game rooms, home theaters, etc.

Application

The HD1102 HDMI KVM switch is suitable for offices, multimedia teaching, video conferencing, game rooms, home theaters, etc.

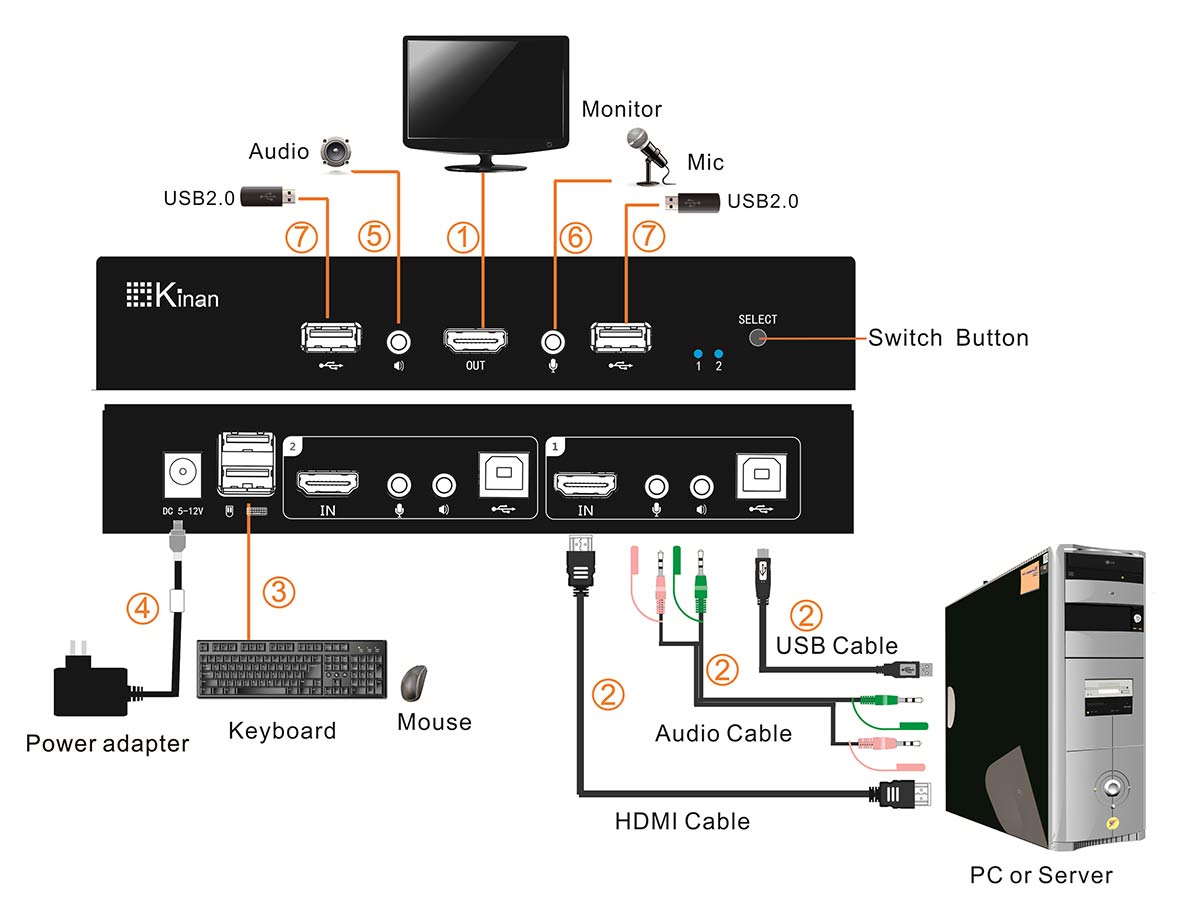

Diagram

Specification

Model			HD1102
Computer Connection			2
Port Selection			Hotkey, button
Connector	Console	Monitor	1x HDMI Type A
		Keyboard	1x double layer USB type A
		Mouse
		Mic	1x Min stereo port (pink)
		Speaker	1x Min stereo port (green)
	PC	Monitor	2x HDMI Type A
		Keyboard	2x USB type B
		Mouse
		Mic	2x Min stereo port (pink)
		Speaker	2x Min stereo port (green)
	USB2.0 port		2x USB type A
	Power		1x DC socket
Switch		Port Selection	1x button
LEDs		Selected	2 (Blue)
Resolution			3840×2160 @ 60 Hz
Power Consumption			2W
Power Input			5V- 12V DC
Operating Temperature			0 ~ 50 ℃
Storage Temperature			-20 ~ 60℃
Humidity			0~80% RH, non-condensing
Net Weight			0.4kg
Dimension (W × D × H)			185mm × 74mm × 32.5mm

Package Contents

1x HD1102 HDMI KVM Switch
2x HDMI cable (1.5m)2x USB cable (USB type A female, USB type B female; 1.5m)
2x 3.5mm Audio cable (1.5m)
1x User Manual
