1U Short Depth Rack Mount 15.6″LCD KVM Console

Model No.: LH1601

6” FHD LCD display, 99-key keyboard, touchpad
Rack-mountable in 1U system rack
Short depth: 360mm
Auto USB interface detection
High resolution and high flexibility with touchpad; with two function buttons and scroll wheel
Resolution is up to 1920 x 1080@60Hz
Constructed of heavy-duty steel in a 1U housing
Energy-saving LCD display, the screen automatically shut down when closing the LCD monitor.

Overview

The LH1601 1U rackmount console is the ideal solution for ETC specialized rack, 5G rack, network specialized rack and standard server rack. Featuring an integrated 15.6” LCD display, full-99 key keyboard and touchpad, all in a 1U rack-mountable housing, it supports the shortest mounting depth: 360mm.

This console is designed with two anti-vibration fixing screws on the front panel to prevent the console during transportation and operating.

Hardware Features

Integrated rack kvm with 15.6” LCD monitor, keyboard/touchpad
LCD module can be opened up to 120 degrees to provide a comfortable viewing angle
Support computers with USB keyboard and mouse
External power supply

Hardware Features

Integrated rack kvm with 15.6” LCD monitor, keyboard/touchpad
LCD module can be opened up to 120 degrees to provide a comfortable viewing angle
Support computers with USB keyboard and mouse
External power supply

High Resolution

Support high resolution up to 1920 x 1080 @60Hz

High Resolution

Support high resolution up to 1920 x 1080 @60Hz

Multi-language Keyboard

Multi-language support–English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Multi-language Keyboard

Multi-language support–English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Wide Compatibility

Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

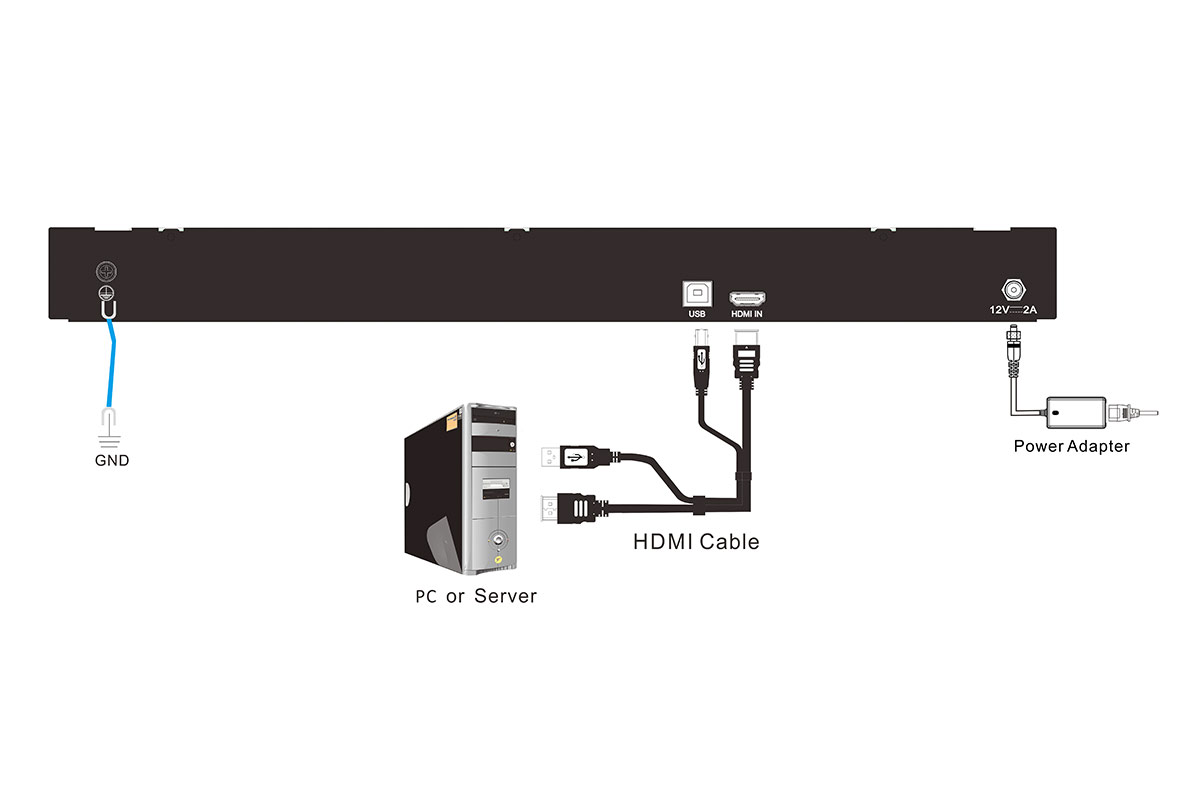

Diagram

Specification

Model		LH1601
Computer connections	Direct	1
Computer connections	Max	1
Port emulation	Keyboard, mouse	USB
LCD monitor	LCD model	FHD TFT
	View area	15.6 “
	Optimum resolution	1920 x 1080@60Hz
	Display color	16.2M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	800 : 1 （ T y p ）
	Pixel pitch(mm)	0.17925(H) × 0.17925(V)
Mouse	X/Y resolution	>1000 points /inch,( 40 points/mm )
Mouse	Scroll wheel	Supports scroll wheel function
Keyboard		99 keys
Keyboard		(82 keys main keyboard +17 independent small numeric keyboard)
Input power		DC12V /2A
Power consumption		9W
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		8.7kg
Product dimension (W ×D ×H)		448mm×360 mm×42.5mm
Package dimension (W× D× H)		600mm×538mm×160mm
