1U Rack Mount Single Rail 19” LCD KVM Console (DVI / VGA)

Model No.: LS3901

A short depth single rail rack console featuring a 19” LCD monitor with an integrated keyboard and touchpad, fits for all standard 19” equipment cabinet. (LS3701: 17″ LCD)
Easy to install and simple to operate. It slides neatly into a 1U rack space when not in use.
The LS3901 supports two types of video input – DVI and VGA – allowing users to connect the console and the computer via any of the two types of video source.
The 19in. LCD screen supports video resolutions up to 1280 x 1024@60Hz.
The rack mount console is compatible with all major operating systems and KVM Switches with a DVI or VGA monitor port and USB keyboard and mouse ports.

Overview

Kinan’s LS3901 DVI VGA LCD KVM Console is a short depth single rail rack console featuring a 19″ LCD monitor with an integrated keyboard and touchpad. The short depth design fits for all standard 19” equipment cabinet, it’s easy to install the LS3901 and simple to operate, it slides neatly into a 1U rack space when not in use.

The LS3901 supports two types of video input – DVI and VGA – allowing users to connect the console and the computer via any of the two types of video source. The 19in. LCD screen supports video resolutions up to 1280 x 1024@60Hz. The rack mount console is compatible with all major operating systems and KVM Switches with a DVI or VGA monitor port and USB keyboard and mouse ports.

Hardware Features

Integrated kvm console with 19” LCD monitor, keyboard/touchpad
Supports two types of video inputs – DVI, VGA
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
Support computers with USB and PS/2 keyboard and mouse
Internal power supply

Hardware Features

Integrated kvm console with 19” LCD monitor, keyboard/touchpad
Supports two types of video inputs – DVI, VGA
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
Support computers with USB and PS/2 keyboard and mouse
Internal power supply

High Resolution

19” TFT rackmount keyboard monitor supports highlight, high definition and high resolution
Support input video resolutions up to 1280 x 1024 @60Hz

High Resolution

19” TFT rackmount keyboard monitor supports highlight, high definition and high resolution
Support input video resolutions up to 1280 x 1024 @60Hz

High Performance Touchpad

Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

Multi-language support–English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Keyboard

Multi-language support–English, Russian, German, French, UK and Spanish, etc.
Full size 99 keys keyboard with integrated number pad

Wide Compatibility

Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

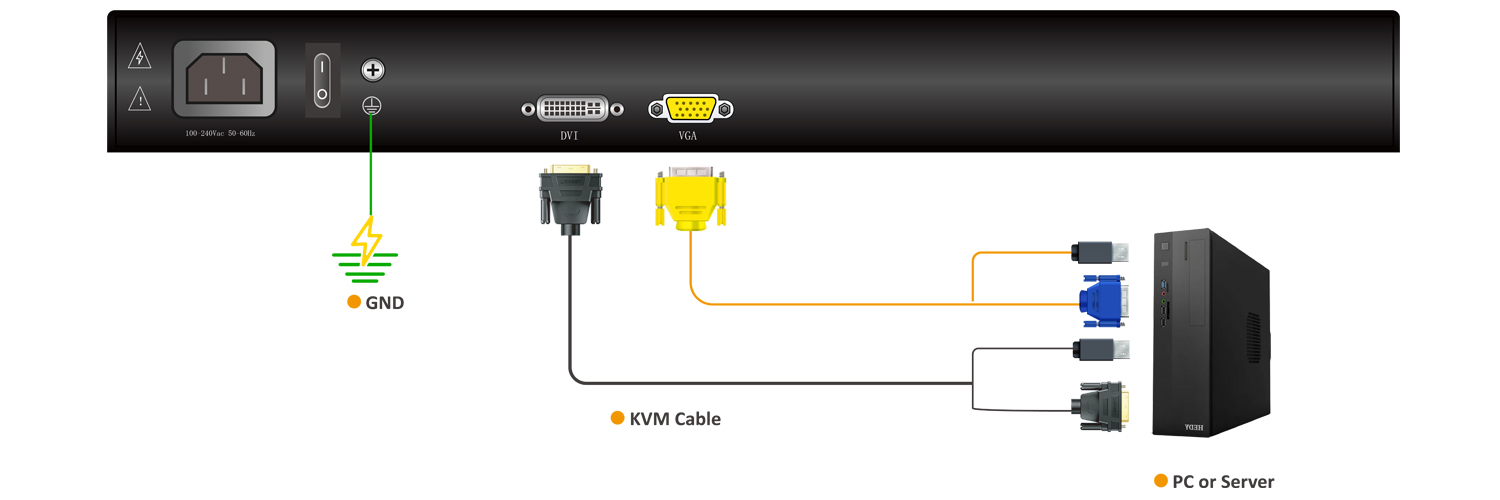

Diagram

Specification

Model		LS3901
Computer Connections	Direct	1
Computer Connections	Max	1
Port emulation	Keyboard, mouse	PS/2, USB
LCD monitor	LCD model	SXGA TFT
	View area	19″
	Optimum resolution	1280×1024@60Hz
	Display color	16.7 M
	Brightness	250cd/m²（ T y p ）
	Contrast ratio	1000 : 1 （ T y p ）
	Pixel pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y resolution	>1000 points / inch, (40 points/mm)
Mouse	Scroll wheel	Support scroll wheel function
Keyboard		99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Video Inputs		DVI, VGA
Power input rating		100V-240Vac, 50-60Hz, <1.5A
Power consumption		17W
Operating temperature		0 ─ 50 ℃
Store temperature		-20 ─ 60 ℃
Humidity		0~80% RH, non-condensing
N.W.		12 kg
Mounting distance		495~510mm (L=62mm)
		695~710mm (L=262mm)
		Mounting rails can be customized for other mounting distance.
Product dimension (W × D × H)		448mm×505mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
Optional power input		-36V— -72Vdc
Optional power input		20-30Vdc
