19” Rack Mount Dual Rail 8 Port LCD KVM Switch

Model No.: DL1908

  • A short depth dual rail rack console featuring a 19” LCD monitor with an integrated keyboard and touchpad, fits for all standard 19” equipment cabinet.
  • The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack.
  • The 19in. LCD screen supports video resolutions up to 1280 x 1024@60Hz.
  • A single console controls up to 8 computers.
UKCA
FCC
CE
RoHS
Features
Diagram
Specification
Accessory
Download
Related Products

Overview

The DL1908 dual rail LCD KVM Switch is a control unit that allows access and control up to 8 computers from a single console. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.

The 19″ LCD monitor and keyboard/touch pad modules slide independently of each other. By cascading 31 additional switches, as many as 256 computers can be controlled from a single keyboard-monitor-mouse console.
The DL1908 LCD KVM Switch has a built-in LCD monitor that supports resolution up to 1280×1024@60Hz.

Hardware Features

  • Integrated KVM Console with 19 LCD monitor, keyboard and touchpad in a dual rail housing
  • Standard VGA connection-Connect to a server or computer via standard VGA connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 keyboard and mouse
  • The LCD monitor and keyboard/touch pad modules slide independently of each other

Hardware Features

  • Integrated KVM Console with 19 LCD monitor, keyboard and touchpad in a dual rail housing
  • Standard VGA connection-Connect to a server or computer via standard VGA connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 keyboard and mouse
  • The LCD monitor and keyboard/touch pad modules slide independently of each other

Dual Rail Design

  • The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack, allowing administrators to easily manage computer.

Dual Rail Design

  • The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack, allowing administrators to easily manage computer.

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

High Resolution

  • 19” TFT LCD monitor with highlight, high definition and high resolution
  • Resolution is up to 1280 x 1024 60Hz

High Resolution

  • 19” TFT LCD monitor with highlight, high definition and high resolution
  • Resolution is up to 1280 x 1024 60Hz

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Diagram

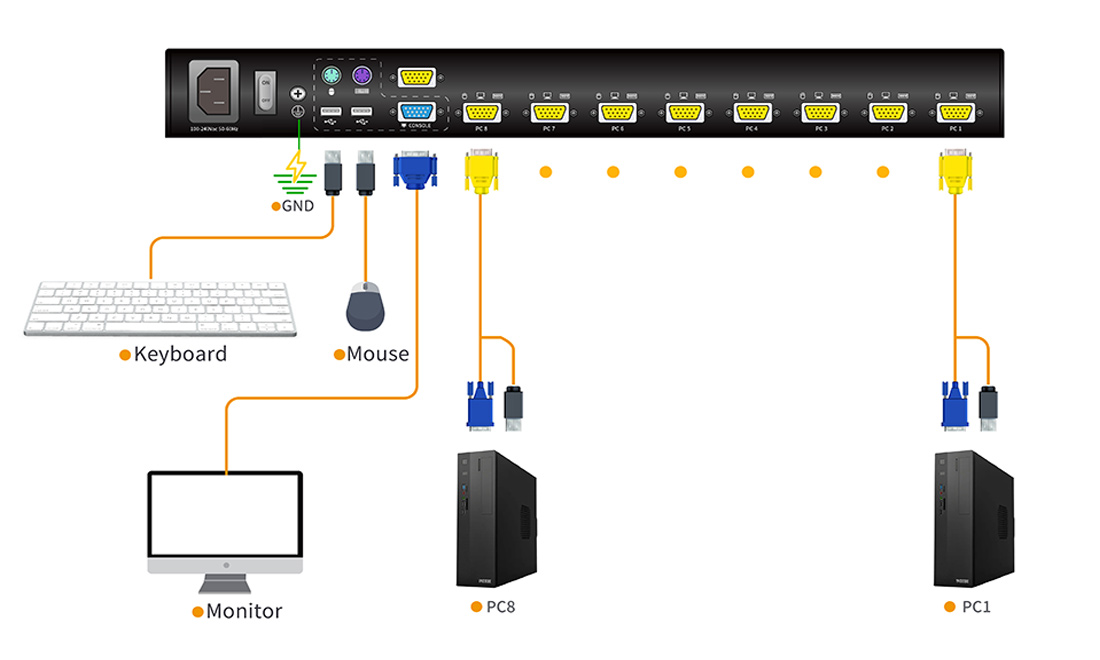

Connection Diagram XL1708-1

Specification

  Model DL1908
Computer connections Direct 8
Max 256
Port emulation Keyboard, mouse PS/2, USB
LCD monitor LCD Model SXGA TFT
View area 19″
Optimum resolution 1280×1024@60Hz
Display color 16.7 M
Brightness 250cd/m²（ T y p ）
Contrast ratio 1000 : 1 （ T y p ）
Pixel pitch(mm) 0.2928(H) × 0.2928(W)
Mouse X/Y resolution >1000 points /inch, (40 points/mm)
Roll wheel Supports scroll wheel function
Keyboard 99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection hotkeys, OSD menu
Input power 100V- 240Vac, 50-60Hz, <1.5A
Power consumption 21W
Mounting distance 610~950mm (L=420mm)
Mounting rails can be customized for other mounting distance.
Operating temperature 0—50 ℃
Store temperature -20—60 ℃
Humidity 0—80% RH, non condensing
Net weight 13.6kg
Product dimension (W × D × H) 448mm×605mm×43.5mm
Package dimension (W × D × H) 765mm×615mm×185mm
Optional power input -36V– -72V DC

Package Contents

  • 1x LCD KVM Switch (DL1908)
  • 1x Power Cord (Regional)
  • 1x Quick Start Guide
  • 2x Mounting Rails
  • 8x USB+VGA KVM Cable (1.8m/6ft)
