19″ 16 Port Cat5 LCD IP KVM Switch 1-Local / 1-Remote Access

Model No.: HT1916

A remote access KVM switch with a 19″ LCD monitor
High video resolution – the local console resolution is up to 1280 x 1024@60Hz, and the remote console resolution is up to 1920 x 1080@60Hz
Easy and simple installation
Dual power supply redundancy
Allow 1 local user and 1 remote user to control the computers, port share mode allows local and remote users to gain access to a server simultaneously
Support servers with VGA/DVI/HDMI/DP port
The transmitting distance is up to 100m when this IP switch is connected to computers via RJ-45 connectors and Cat5e/6/7 cables

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

With an integrated 19″ LCD monitor, keyboard, and touchpad in a 1U rack-mountable housing, the Kinan HT1916 IP KVM switch with 16 ports is a control unit that allows secure access to 16 computers from a single KVM console. Its IP-based connectivity allows 1 local and 1 remote operators to monitor and access the computers concurrently. With TCP/IP communications protocol, you can access the connected servers from any computer on the LAN, WAN, or the Internet.

It’s easy for users to install this remote Cat5 LCD IP KVM switch. First plug the cables into the ports of the servers or computers properly without need for software, complicated installation procedures, and compatibility issues. And connecting computers with the RJ-45 connectors and Cat5e/6 cables makes the transmitting distance up to 100m.

Hardware Features

This Cat5 KVM over IP switch is a hardware including a 19″ LCD monitor, a keyboard and a touchpad, occupying a 1U height space
Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
LCD module can be opened up to 108 degrees to provide a user-friendly viewing experience
External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
One bus for IP KVM remote access
Dual power supply redundancy

Hardware Features

This Cat5 KVM over IP switch is a hardware including a 19″ LCD monitor, a keyboard and a touchpad, occupying a 1U height space
Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
LCD module can be opened up to 108 degrees to provide a user-friendly viewing experience
External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
One bus for IP KVM remote access
Dual power supply redundancy

Local Console

Controls up to 16 computers
Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
User-friendly switching methods – browser-based UI interface, hotkeys and pushbuttons
Support servers with VGA/DVI/HDMI/DP port
Support Multiplatforms – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
Local Console, Browser, and AP GUIs offer a unified management interface
The resolution of local console is up to 1280×1024@60Hz
Support mouse synchronization mode – automatically synchronizes the local and remote mouse movements
Video synchronization with local console – EDID information for local console display can be stored in the host module for video resolution optimization
Keyboard and mouse emulation to ensure the normal booting
Auto scan feature for monitoring user – selected computer
Hot pluggable–add or remove computers without having to power down the switch

Local Console

Controls up to 16 computers
Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
User-friendly switching methods – browser-based UI interface, hotkeys and pushbuttons
Support servers with VGA/DVI/HDMI/DP port
Support Multiplatforms – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
Local Console, Browser, and AP GUIs offer a unified management interface
The resolution of local console is up to 1280×1024@60Hz
Support mouse synchronization mode – automatically synchronizes the local and remote mouse movements
Video synchronization with local console – EDID information for local console display can be stored in the host module for video resolution optimization
Keyboard and mouse emulation to ensure the normal booting
Auto scan feature for monitoring user – selected computer
Hot pluggable–add or remove computers without having to power down the switch

Remote Console

Adaptive 10 / 100 / 1000 Mbps network
WEB browser-based remote management
The remote console resolution is up to 1920×1080@60Hz
BIOS-level access
Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
Full screen or scalable video display
Remote users and local users can control the same server/computer synchronously
Support AES / DES / 3DES encryption
Support audit function – allows the administrator to audit the device through the system log and operation log
Support Exit Macros
Configurable user and group permissions for server access and control
Strong password is supported to ensure the data security

Remote Console

Adaptive 10 / 100 / 1000 Mbps network
WEB browser-based remote management
The remote console resolution is up to 1920×1080@60Hz
BIOS-level access
Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
Full screen or scalable video display
Remote users and local users can control the same server/computer synchronously
Support AES / DES / 3DES encryption
Support audit function – allows the administrator to audit the device through the system log and operation log
Support Exit Macros
Configurable user and group permissions for server access and control
Strong password is supported to ensure the data security

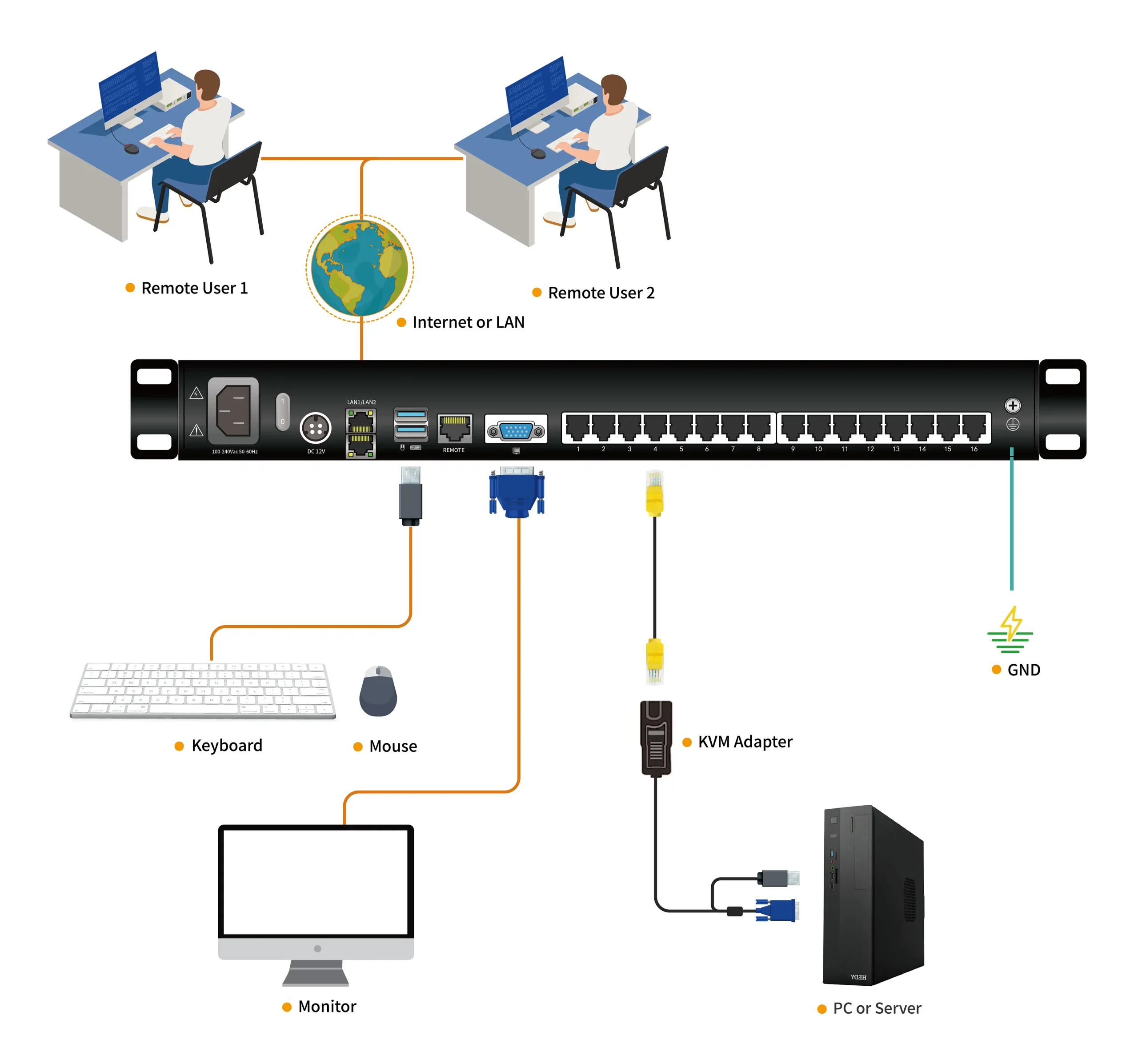

Diagram

Specification

Model		HT1916
Computer	Diret	16
Connections	Max	16
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LED Monitor	Model	SXGA TFT
	View Area	19″
	Optimum Resolution	1280 x 1024@60Hz
	Color	16.7M
	Brightness	250 cd/m²
	Contrast Ratio	1000:01:00
	Pixel Pitch(mm)	0.2928(H) × 0.2928(W)
Mouse	X/Y Resolution	>1000 points / inch, (40 points/mm)
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (ActiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac, 50-60Hz, <1.5A
Power Consumption		25W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0~80% RH, non-condensing
Net Weight		13.4kg
Product Dimension(W x D x H)		448mm × 605mm × 42.5mm
Package Dimension(W x D x H)		765mm × 615mm × 185mm
