18.5″ 32 Port CAT5 LCD KVM over IP Switch 1-Local / 1-Remote Access

Model No.: HT2832

Integrated KVM Console with 18.5” widescreen LCD monitor
High video resolution – resolution is up to 1920×1080@60Hz for local and remote console
Dual power supply
Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
Support servers with VGA/DVI/HDMI/DP port

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan’s HT2832 Cat5 LCD KVM over IP Switch is an ideal kvm solution for remote access to 32 computers over IP from a single KVM console. Boasting a space-saving design, the HT2832 wide screen monitor KVM switch can be integrated in a 1U rackmount housing with an 18.5” LCD monitor, keyboard, and touchpad together.

Featuring IP-based connectivity, the HT2832 allows local and remote operators to monitor and access the computers concurrently. With TCP/IP communications protocol, you can access the connected servers from any computer on the LAN, WAN, or Internet.

The HT2832 supports both USB and PS/2 connections for the computers. An extra HDB15 port allows an additional VGA monitor to be connected. Kinan also provides VGA, DVI, HDMI, and DisplayPort KVM adapter cables to link to computers/servers, support any combination of computers with different video inputs.

It’s easy to set up the rackmount KVM drawer, just plug the cable into the appropriate port, no software needed, no complicated installation procedures, and no compatibility issues. Connect computers with compact RJ-45 connectors and Cat 5e/6 cable. The transmitting distance is up to 100m.

Hardware Features

Integrated KVM Console with 18.5” widescreen LCD monitor, keyboard/touchpad in a 1U height console
Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
One bus for IP KVM remote access
Dual power supply

Hardware Features

Integrated KVM Console with 18.5” widescreen LCD monitor, keyboard/touchpad in a 1U height console
Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
One bus for IP KVM remote access
Dual power supply

Local Console

Controls up to 32 computers from a single console
Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
Support servers with VGA/DVI/HDMI/DP port
Multiplatform client support – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
Local Console, Browser, and AP GUIs offer a unified management interface
Local resolution is up to 1920×1080@60Hz
Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements
Video synchronization with local console – EDID information for local console display can be stored in the host module for video resolution optimization
Keyboard and mouse emulation to ensure the normal booting
Auto scan feature for monitoring user-selected computer
Hot pluggable–add or remove computers without having to power down the switch

Local Console

Controls up to 32 computers from a single console
Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
Support servers with VGA/DVI/HDMI/DP port
Multiplatform client support – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
Local Console, Browser, and AP GUIs offer a unified management interface
Local resolution is up to 1920×1080@60Hz
Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements
Video synchronization with local console – EDID information for local console display can be stored in the host module for video resolution optimization
Keyboard and mouse emulation to ensure the normal booting
Auto scan feature for monitoring user-selected computer
Hot pluggable–add or remove computers without having to power down the switch

Remote Console

Adaptive 10 / 100 / 1000 Mbps network
WEB browser-based remote management
Resolution for remote console is up to 1920×1080@60Hz
BIOS-level access
Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
Full screen or scalable video display
Remote users and local users can control the same server/computer synchronously
Support AES / DES / 3DES encryption
Support audit function-allows the administrator to audit the device through the system log and operation log
Exit Macros support
Configurable user and group permissions for server access and control
Support strong password
Support firmware upgrade

Remote Console

Adaptive 10 / 100 / 1000 Mbps network
WEB browser-based remote management
Resolution for remote console is up to 1920×1080@60Hz
BIOS-level access
Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
Full screen or scalable video display
Remote users and local users can control the same server/computer synchronously
Support AES / DES / 3DES encryption
Support audit function-allows the administrator to audit the device through the system log and operation log
Exit Macros support
Configurable user and group permissions for server access and control
Support strong password
Support firmware upgrade

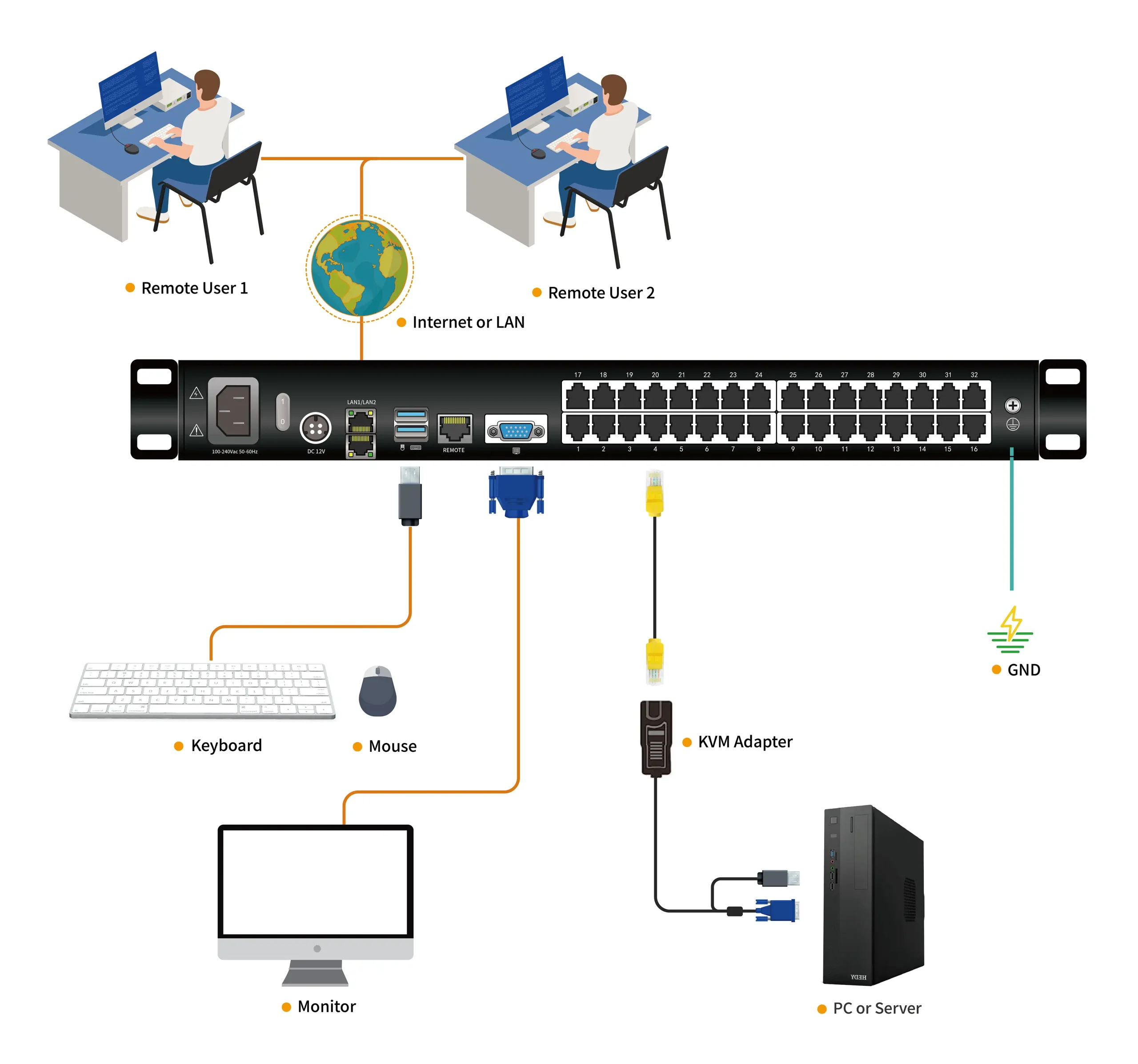

Diagram

Specification

Model		HT2832
Computer Connections	Direct	32
	Max	32
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LED Monitor	Model	FHD TFT
	View Area	18.47″
	Optimum Resolution	1920×1080@60Hz
	Color	16.7 M
	Brightness	250cd/m²(T y p)
	Contrast Ratio	1000: 1 (T y p)
	Pixel Pitch(mm)	0.213(H) × 0.213(W)
Mouse	X/Y Resolution	>1000 points / inch, (40 points/mm)
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (A9ctiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac, 50-60Hz, <1.5A
Mounting distance		686-770mm (L=262mm)
		Mounting bracket can be customized for other
		mounting distance
Power Consumption		39W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0—80% RH, non-condensing
Net Weight		12.1 kg
Product Dimension (W × D × H)		448mm×560mm×42.5mm
Package Dimension (W × D × H)		765mm×615mm×185mm
