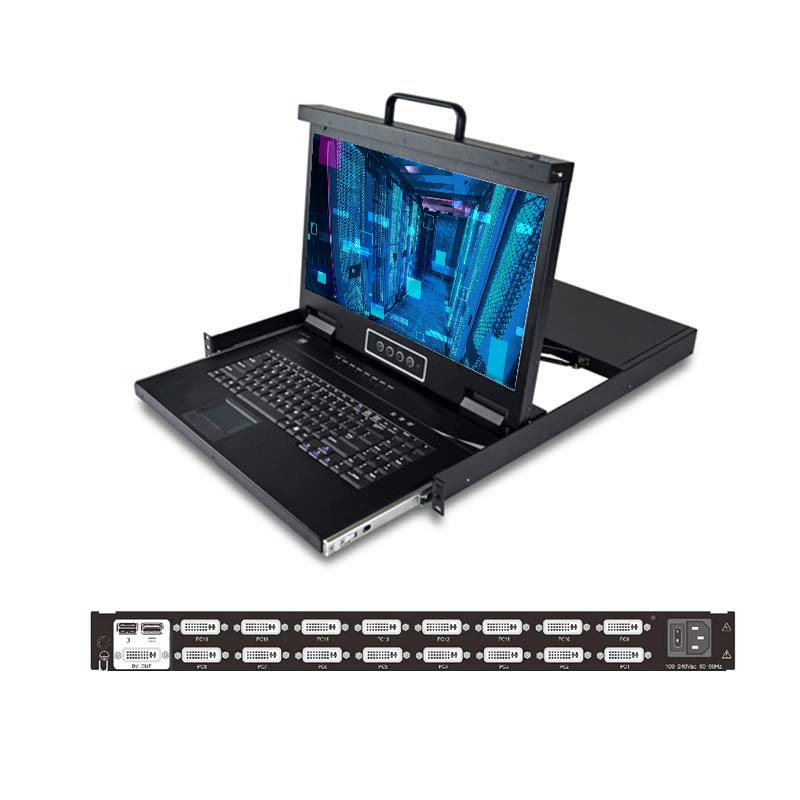

18.5″ 16-Port Single Rail DVI LCD KVM Switch

Model No.: LD1816

Hardware: A console designed with an 18.5″ monitor, a movable keyboard, and a touchpad.
Space-saving Design: Installed in the cabinet and occupies only 1U rack space.
Superior Video Resolution: Up to 1920 x 1080 @60Hz.
Number of Computers: Up to 16 computers are controlled simultaneously from a single console.
Optional Switching Methods: Conveniently control computers via front panel LEDs, keyboard hotkeys and on-screen-dispaly (OSD) menu.
Standard DVI connection: Connect to a server or computer via standard DVI connectors.
High Flexibility: The LCD monitor is opened up to 108 degrees and the single rail allows users to move the keyboard.

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

Kinan LD1816 is a DVI LCD KVM switch designed with an 18.5″ monitor, allowing users to control and manage up to 16 computers or servers from a single console(keybaord, mouse and monitor). The signle rail allows users to slide the keyboard and open the LCD monitor conveniently. When it is not used, the KVM monitor can be closed and the whole switch can be pushed into the cabinet, which can maximize space utilization.

LD1816’s flexible 18″ screen is convenient for users to monitor data directly in data centers. The maxium resolution it supports is 1920 x 1080@60Hz. What’s more, users can switch computers seamlessly via front panel LEDs, keyboard hotkeys, and on-screen-display(OSD) menu are supported.

The LD1816 DVI KVM switch can satisfy the requirements of many application scenarios (especailly data center) because of its impressive flexibility and outstanding management function. It can not only reduce costs, but also optimize the management system.

Versatility

Auto Scan for monitoring user-selected computers.
Hot-pluggable feature allows users to add or remove devices freely.
Broadcast mode allows all computers to perform commands simultaneously.
Optional switching methods including hotkeys, push buttons and OSD menu.
Compatible with multiple platforms including Windows, Sun, Unix and Linux.
Provides ultimate viewing experience with high resolution – 1920 x 1080@60Hz.

Versatility

Auto Scan for monitoring user-selected computers.
Hot-pluggable feature allows users to add or remove devices freely.
Broadcast mode allows all computers to perform commands simultaneously.
Optional switching methods including hotkeys, push buttons and OSD menu.
Compatible with multiple platforms including Windows, Sun, Unix and Linux.
Provides ultimate viewing experience with high resolution – 1920 x 1080@60Hz.

Flexibility

The widescreen LCD KVM monitor can be opened up to 108 degrees freely.
The built-in keyboard can be moved out conveniently.
Easy to install with no software required.
Switch computers via diverse switching options.

Flexibility

The widescreen LCD KVM monitor can be opened up to 108 degrees freely.
The built-in keyboard can be moved out conveniently.
Easy to install with no software required.
Switch computers via diverse switching options.

Space Optimization

LD1816 LCD KVM switch has a space-saving design, occupies only 1U rack space.
Eliminate redundant devices (keyboard and mouse), more space is saved.

Space Optimization

LD1816 LCD KVM switch has a space-saving design, occupies only 1U rack space.
Eliminate redundant devices (keyboard and mouse), more space is saved.

Diagram

Specification

Function		LD1816
Computer connections	Direct	16
Computer connections	Max	16
Port emulation	Keyboard, mouse	USB
LED monitor	LED model	FHD TFT
	View area	18.47″
	Optimum resolution	1920×1080@60Hz
	Display color	16.7 M
	Brightness	250cd/m²( T y p )
	Contrast ratio	1000: 1( T y p )
	Pixel pitch(mm)	0.213(H) × 0.213(W)
Mouse	X/Y resolution	>1000 points /inch, (40 points/mm)
Mouse	Roll wheel	Supports scroll wheel function
Keyboard		99 keys
Keyboard		(82 keys main keyboard +17 independent small numeric keyboard)
Port selection		pushbuttons, hotkeys, OSD menu
Input power		100V- 240Vac, 50-60Hz, <1.5A
Power consumption		30W
Mounting distance		686-770mm ( L=262mm)
		Mounting bracket can be customized for other
		mounting distance
Operating temperature		0—50 ℃
Store temperature		-20—60 ℃
Humidity		0—80% RH, non-condensing
Net weight		12kg
Product dimension (W × D × H)		448mm×560mm×42.5mm
Package dimension (W × D × H)		765mm×615mm×185mm
