17” 24 Port CAT5 LCD KVM over IP Switch 1-Local / 2-Remote Access

Model No.: HT5724

(HT5924: 19″ LCD; HT5824: 18.5″ widescreen LCD)
Integrated KVM Console with 17” LCD monitor
High video resolution – resolution is up to 1920×1080@60Hz for remote console, local console resolution is up to 1280 x 1024@60Hz
Dual power supply
Support 1 local user and 2 remote users, port share mode allows local and remote users to gain access to a server simultaneously
Support servers with VGA/DVI/HDMI/DP port

Overview

Kinan’s HT5724 kvm switch over IP features an integrated 17” LCD monitor and keyboard with a built-in touchpad in a 1U compact rack-mountable drawer. The HT5724 is the ideal solution for controlling up to 24 computers/servers locally, or remotely via IE browser or Centralized Management Software.

The HT5724 features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch between the 24 ports easily via an on-screen display (OSD), hotkey commands, or a remote toolbar. A local user and up to two remote users can each log on and access different ports simultaneously.

The built-in 17” LCD monitor supports video resolutions up to 1280×1024@60Hz, up to 1920 x 1080@60Hz on the remote screen. VGA, DVI, HDMI, and DP adapters are available to suit your servers/computers with different video inputs.

Hardware Features

Integrated KVM Console with 17” LCD monitor, keyboard/touchpad in a 1U height console
Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
One bus for IP KVM remote access
Dual power supply

Hardware Features

Integrated KVM Console with 17” LCD monitor, keyboard/touchpad in a 1U height console
Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
One bus for IP KVM remote access
Dual power supply

Local Console

Controls up to 24 computers from a single console
Support 1 local user and 2 remote users, port share mode allows local and remote users to gain access to a server simultaneously
Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
Support servers with VGA/DVI/HDMI/DP port
Multiplatform client support – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
Local Console, Browser, and AP GUIs offer a unified management interface
Local resolution is up to 1280 x 1024@60Hz
Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements
Video synchronization with local console – EDID information for local console display can be stored in the host module for video resolution optimization
Keyboard and mouse emulation to ensure the normal booting
Auto scan feature for monitoring user-selected computer
Hot pluggable–add or remove computers without having to power down the switch

Local Console

Controls up to 24 computers from a single console
Support 1 local user and 2 remote users, port share mode allows local and remote users to gain access to a server simultaneously
Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
Support servers with VGA/DVI/HDMI/DP port
Multiplatform client support – Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
Local Console, Browser, and AP GUIs offer a unified management interface
Local resolution is up to 1280 x 1024@60Hz
Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements
Video synchronization with local console – EDID information for local console display can be stored in the host module for video resolution optimization
Keyboard and mouse emulation to ensure the normal booting
Auto scan feature for monitoring user-selected computer
Hot pluggable–add or remove computers without having to power down the switch

Remote Console

Adaptive 10 / 100 / 1000 Mbps network
WEB browser-based remote management
Resolution for remote console is up to 1920×1080@60Hz
BIOS-level access
Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
Full screen or scalable video display
Remote users and local users can control the same server/computer synchronously
Support AES / DES / 3DES encryption
Support audit function-allows the administrator to audit the device through the system log and operation log
Exit Macros support
Configurable user and group permissions for server access and control
Support strong password
Support firmware upgrade

Remote Console

Adaptive 10 / 100 / 1000 Mbps network
WEB browser-based remote management
Resolution for remote console is up to 1920×1080@60Hz
BIOS-level access
Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
Full screen or scalable video display
Remote users and local users can control the same server/computer synchronously
Support AES / DES / 3DES encryption
Support audit function-allows the administrator to audit the device through the system log and operation log
Exit Macros support
Configurable user and group permissions for server access and control
Support strong password
Support firmware upgrade

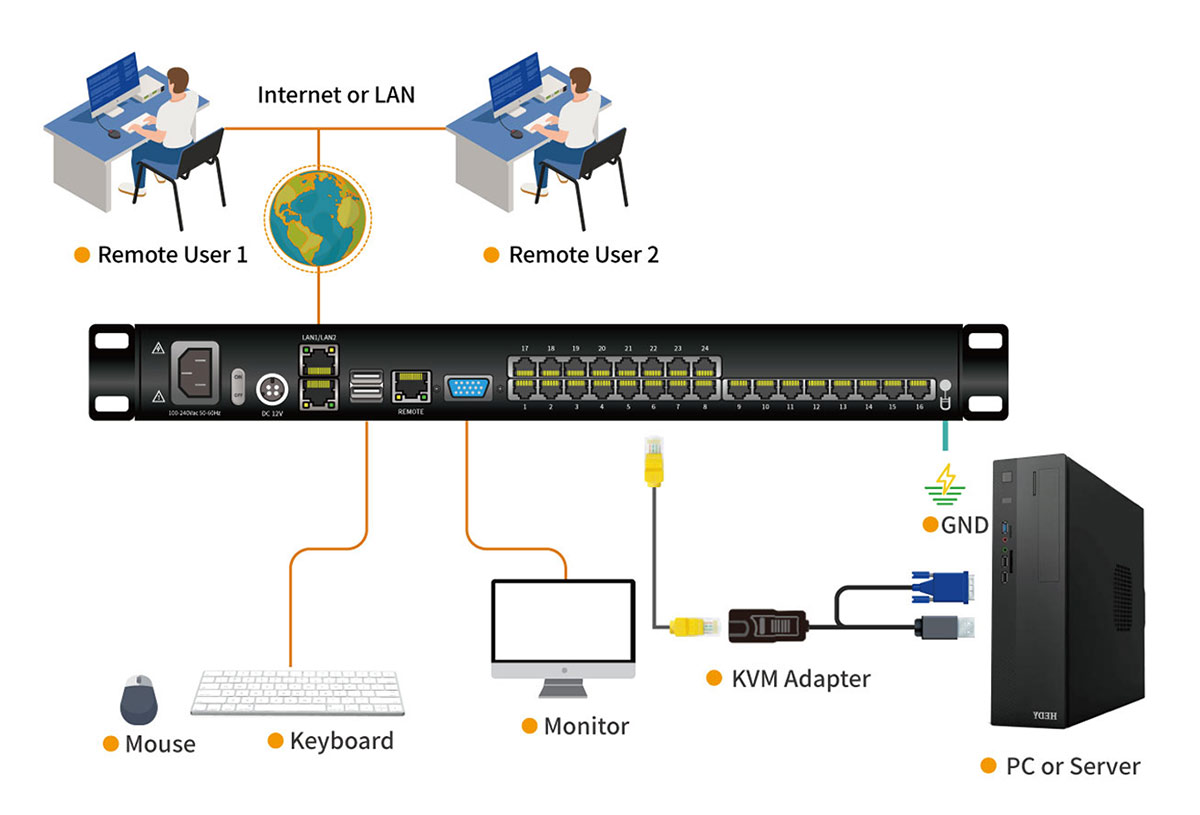

Diagram

Specification

Model		HT5724
Computer Connections	Direct	24
	Max	24
Port Selection	Keyboard, Mouse	Button, UI, Web, Hotkey
LCD Monitor	Model	SXGA TFT
	View Area	17 “
	Optimum Resolution	1280×1024@60Hz
	Color	16.7 M (Typ)
	Brightness	250 cd/m² (Typ)
	Contrast Ratio	1000:01:00
	Pixel Pitch(mm)	0.264(H) × 0.264(W)
Mouse	X/Y Resolution	>1000 points / inch,（ 40 points/mm ）
	Scroll Wheel	Supports Scroll Wheel function
Keyboard		99 keys (82 keyboard + 17 number pad)
Remote	Remote Control	KVM Control (ActiveX)
	Management	Web
	Security	DES Encrypted
	Resolution	1920×1080@60Hz
Power Input		100V- 240Vac, 50-60Hz, <1.5A
Power Consumption		29W
Operating Temperature		0 — 50 ℃
Store Temperature		-20 —60 ℃
Humidity		0 —80% RH, non-condensing
Net Weight		13.2kg
Product Dimension (W × D × H)		448mm × 581mm × 42.5mm
Package Dimension (W × D × H)		765mm × 615mm × 185mm
