17” 16 Port FHD Rackmount LCD KVM Switch 1080P

Model No.: XW1716

  • (XW1816: 18.5″ widescreen LCD)
  • Integrated KVM Console with 18.5” widescreen LCD monitor
  • A single console controls up to 16 computers
  • Resolution is up to 1920 x 1080 @60Hz
  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Support daisy-chain connection and control up to 512 computers

Overview

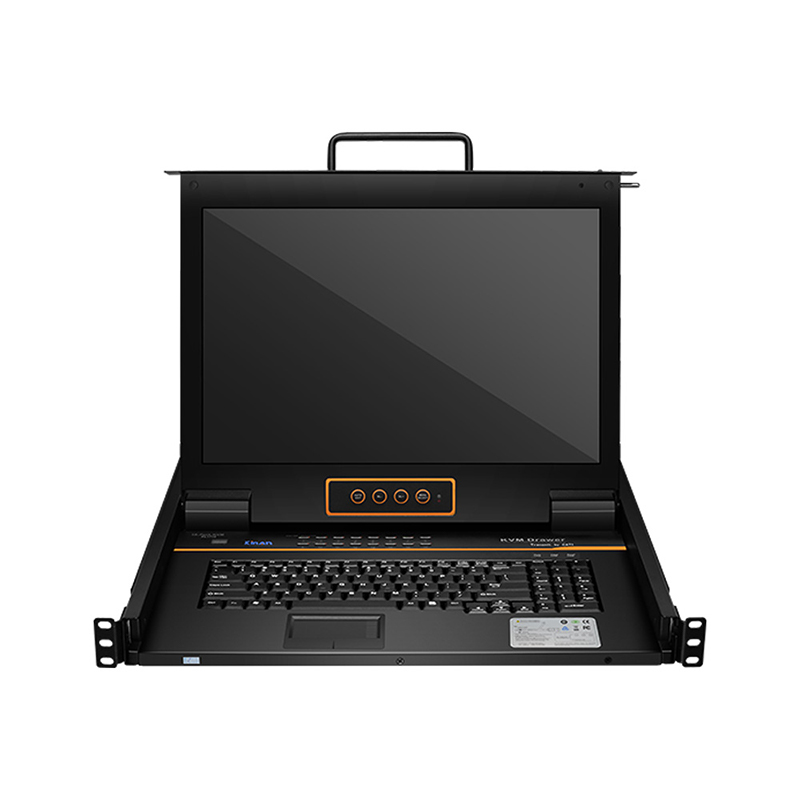

The Kinan’s XW1716 rack kvm with monitor features an integrated 17.3″ LCD monitor, keyboard and touchpad in only 1U height rack mountable drawer. It allows access and control up to 16 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 512 by daisy-chaining up to 31 XM0108 KVM Switches.

The XW1716 rack screen and keyboard has a built-in LCD monitor that supports resolution up to 1920 x 1080@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

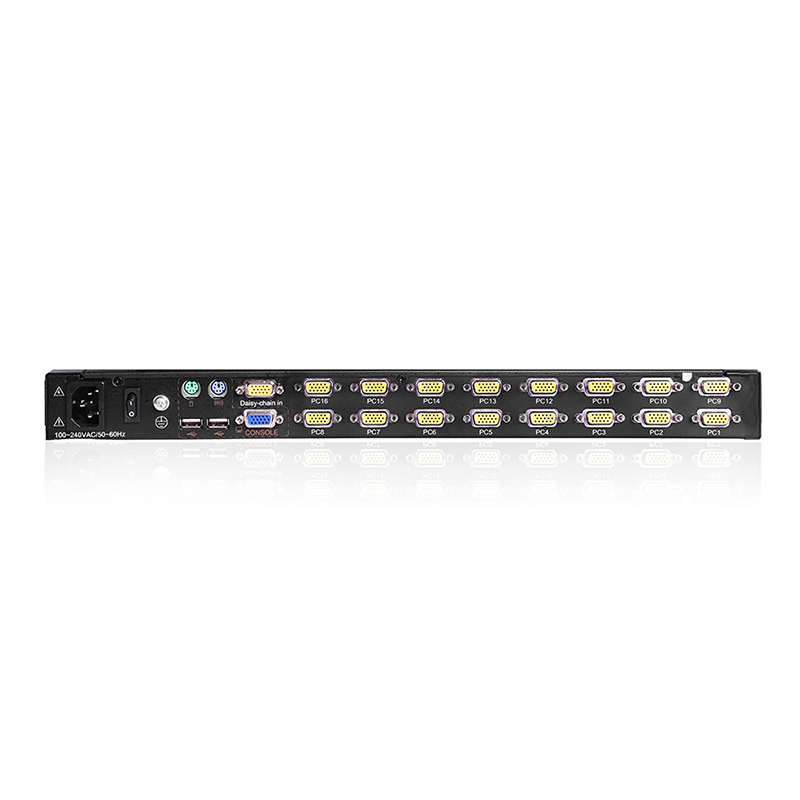

The LCD KVM switch supports USB connection for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.

Hardware Features

  • Integrated USB KVM console with 17.3” LCD monitor, keyboard/touchpad and 16 port KVM switch module in a 1U height console
  • Standard VGA connection-Connect to a server or computer via standard VGA connectors

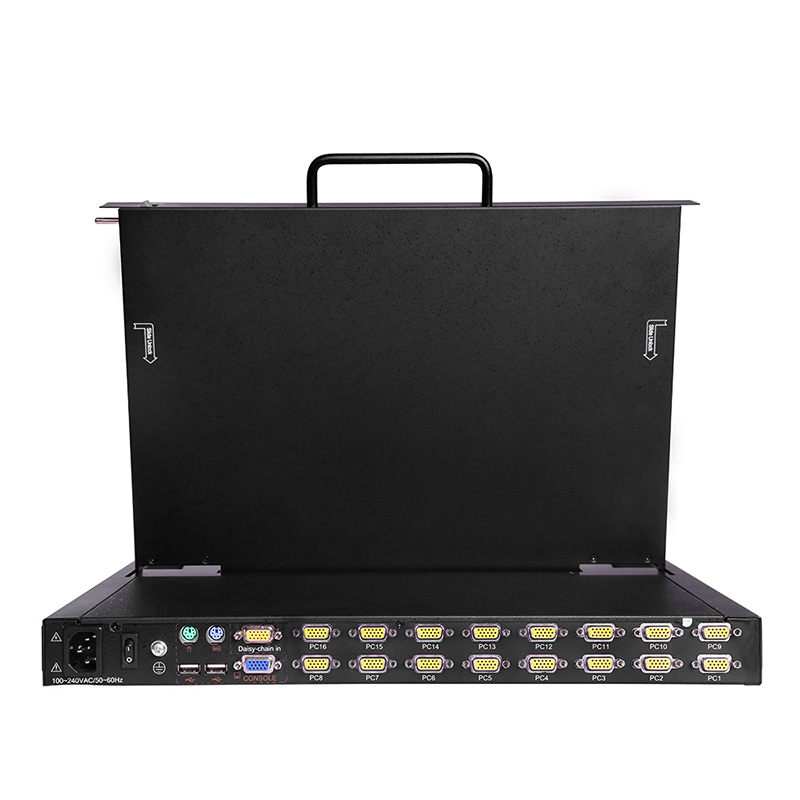

  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 keyboard and mouse

Hardware Features

  • Integrated USB KVM console with 17.3” LCD monitor, keyboard/touchpad and 16 port KVM switch module in a 1U height console
  • Standard VGA connection-Connect to a server or computer via standard VGA connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 keyboard and mouse

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode–operations simultaneously performed on all selected computers
  • Hot pluggable –add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu

High Resolution

  • 17.3” TFT monitor supports highlight, high definition and high resolution
  • Superior video quality is up to 1920 x 1080 @60Hz

High Resolution

  • 17.3” TFT monitor supports highlight, high definition and high resolution
  • Superior video quality is up to 1920 x 1080 @60Hz

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 512 servers can be controlled from a single console

Daisy-Chain Connection

  • By daisy-chaining up to another 31 switches, as many as 512 servers can be controlled from a single console

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Security

  • Two level password security–only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

High Performance Touchpad

  • Touchpad with scroll wheel – Eliminates the need for a separate, external mouse

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Keyboard

  • Multi-language support–English, Russian, German, French, UK and Spanish, etc.
  • Full size 99 keys keyboard with integrated number pad

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Diagram

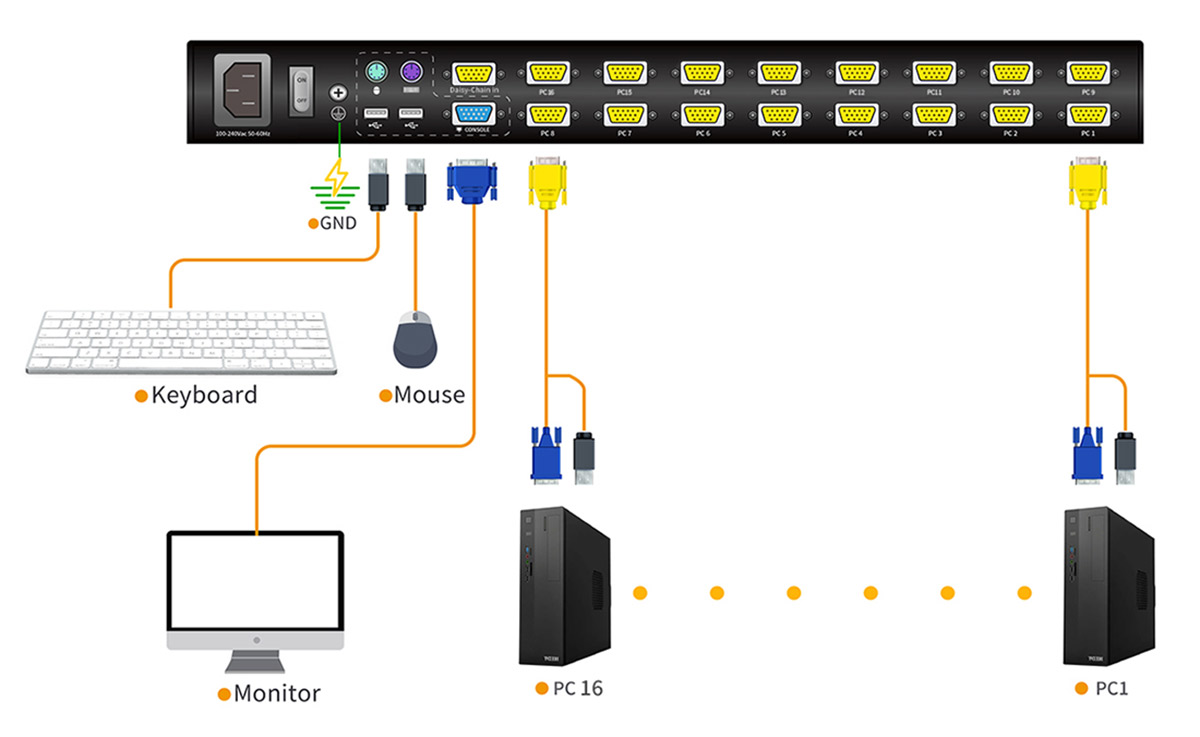

Connection Diagram XW1716-1

Specification

Model XW1716
Computer connections Direct 16
Max 512
Port emulation Keyboard, mouse USB
LCD monitor LCD model FHD TFT
View area 17.3″
Optimum resolution 1920×1080@60Hz
Display color 16.7 M
Brightness 250cd/m² (T y p)
Contrast ratio 800: 1(T y p)
Pixel pitch(mm) 0.1989(H) × 0.1989(W)
Mouse X/Y resolution >1000 points /inch, (40 points/mm)
Roll wheel Supports scroll wheel function
Keyboard 99 keys (82 keys main keyboard +17 independent small numeric keyboard)
Port selection Front panel pushbuttons, hotkeys, OSD menu
Input power 100V- 240Vac, 50-60Hz, <1.5A
Power consumption 15W
Mounting distance 510-850mm (L=420mm)
Mounting bracket can be customized for other mounting distance
Operating temperature 0—50 ℃
Store temperature -20— 60 ℃
Humidity 0—80% RH, non-condensing
Net weight 11kg
Product dimension (W × D × H) 448mm×525.6mm×42.5mm
Package dimension (W × D × H) 765mm×615mm×185mm
Optional power input -36V— -72V DC

Package Contents

  • 1x LCD KVM Switch (XW1716)
  • 1x Power Cord (Regional)
  • 1x Quick Start Guide
  • 2x Mounting Rails
  • 16x USB+VGA KVM Cable (1.8m/6ft)
