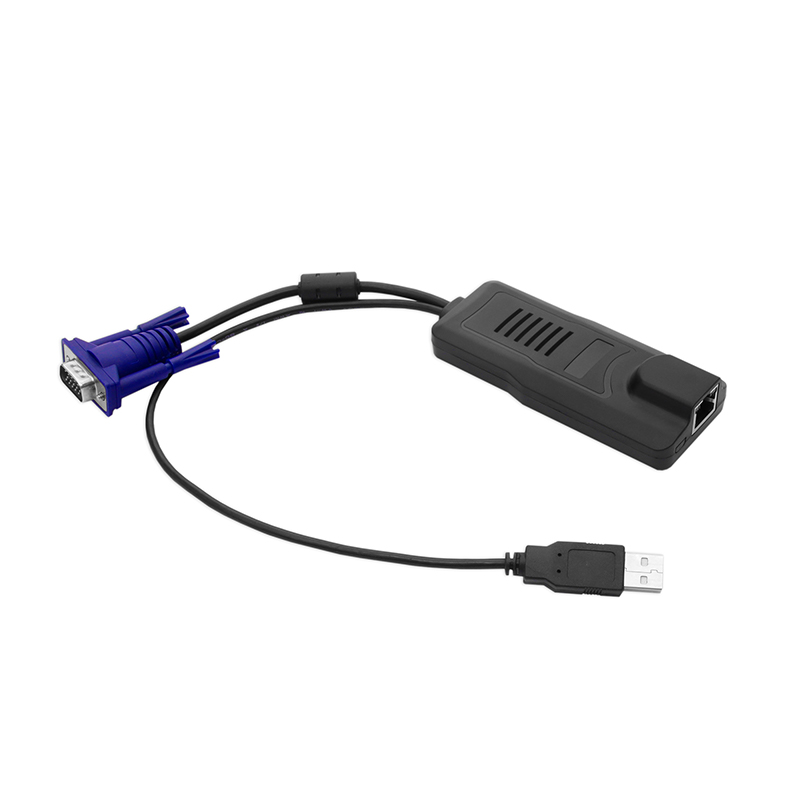

USB VGA KVM Adapter

Model No.: KCM1200U

USB CAT5 adapter with VGA interface
Transmitting distance: 100m
Resolution is up to 1920 x 1080@60Hz
Hot pluggable

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

The KCM-1200U USB VGA KVM Adapter Cable is used to connect the KVM switch to the video and USB ports of the target computer/server. The cable used to connect the dongle must be a Category 5e (shielded) CAT5/6 network cable.

USB VGA KVM Adapter for Kinan’s KC/LC/HT series KVM Switches

USB CAT5 adapter with VGA interface
Transmitting distance: 100m
Resolution is up to 1920 x 1080@60Hz
Hot pluggable

USB VGA KVM Adapter for Kinan’s KC/LC/HT series KVM Switches

USB CAT5 adapter with VGA interface
Transmitting distance: 100m
Resolution is up to 1920 x 1080@60Hz
Hot pluggable

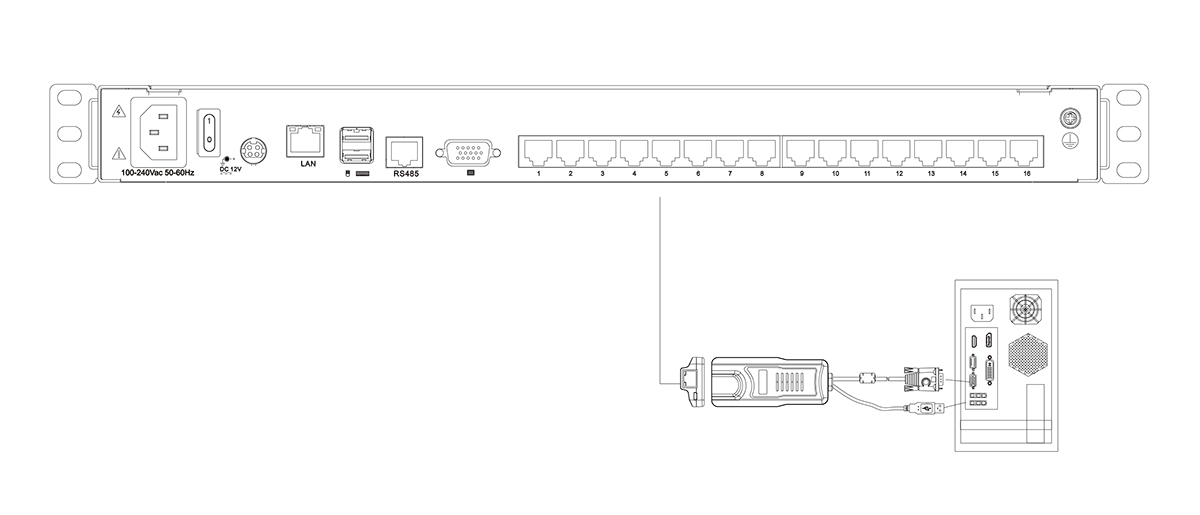

Diagram

Specification

Model			KCM-1200U
Connector	Input	USB	1x USB type A
		VGA	1x HDB-15 (male)
	Output		1x RJ-45 (Female)
LED	Connected		Steady green light
	Online		Steady orange and green lights
Environment Requirements	Operating Temperature		0-50℃
	Store Temperature		-20-60℃
	Humidity		0-80%RH, Non-condensing
Physical Features	Material		Plastic
	Cable Length		VGA: 150 mm (Including VGA connector)
			USB: 300 mm
	Weight		90g
	Dimension		106mm x 45mm x 21.7mm
