USB DVI KVM Adapter

Model No.: KCM2200D

USB CAT5 adapter with DVI interface
Transmitting distance: 100m
Resolution is up to 1920 x 1080@60Hz
Hot pluggable

Get A Free Quote

Features

Diagram

Specification

Accessory

Download

Overview

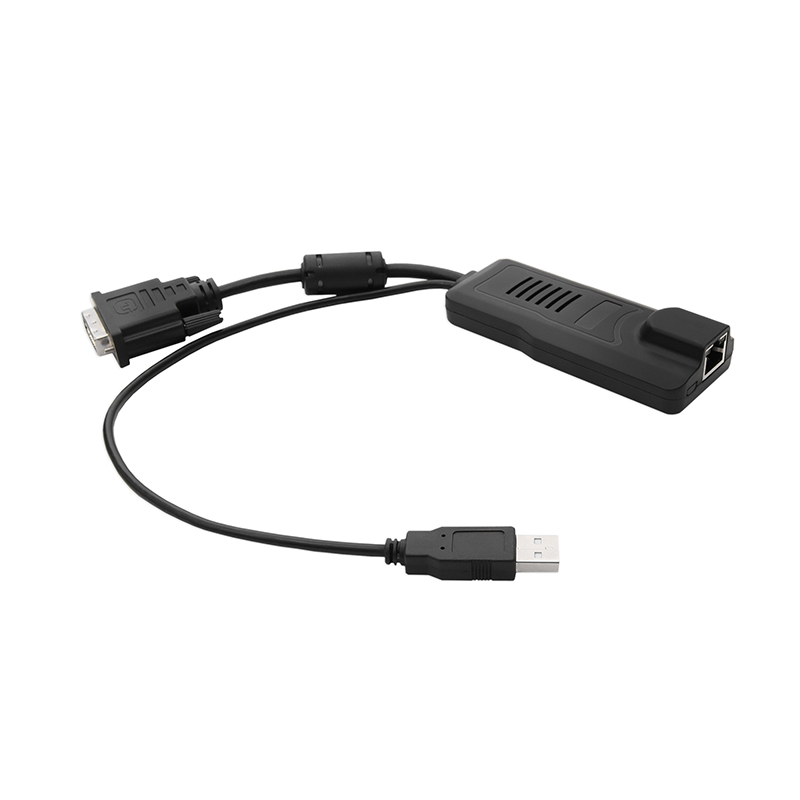

The KCM-2200D USB DVI KVM Adapter Cable is used to connect the KVM switch to the video and USB ports of the target computer/server. The cable used to connect the dongle must be a Category 5e (shielded) CAT5/6 network cable.

USB DVI KVM Adapter for Kinan’s KC/LC/HT series KVM Switches

USB CAT5 adapter with DVI interface
Transmitting distance: 100m
Resolution is up to 1920 x 1080@60Hz
Hot pluggable

USB DVI KVM Adapter for Kinan’s KC/LC/HT series KVM Switches

USB CAT5 adapter with DVI interface
Transmitting distance: 100m
Resolution is up to 1920 x 1080@60Hz
Hot pluggable

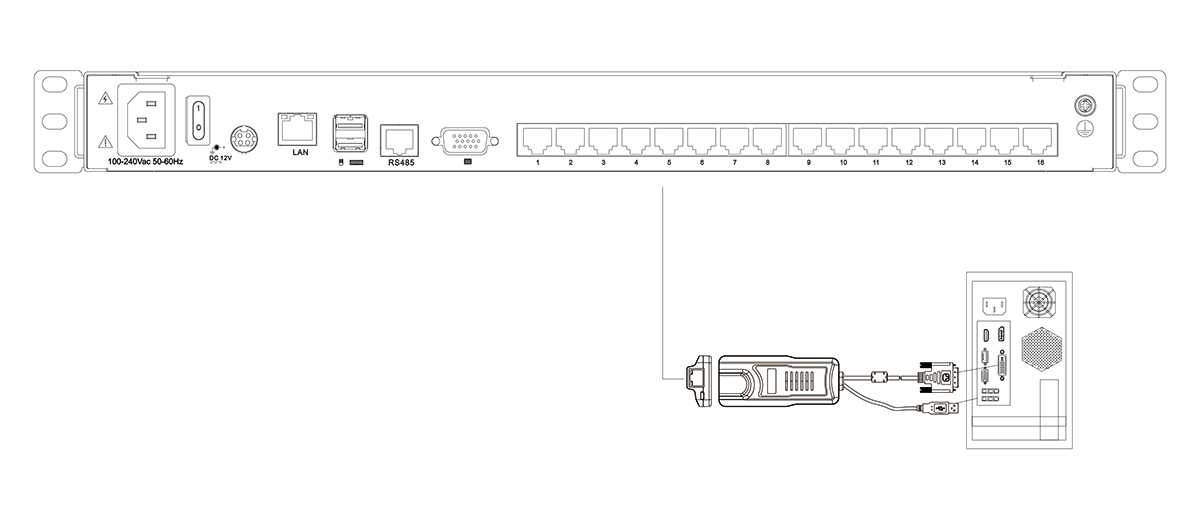

Diagram

Specification

Model			KCM-2200D
Connector	Input	USB	1x USB type A
		DVI	1x DVI-D (24+1) (male)
	Output		1x RJ-45 (Female)
LED	Connected		Steady green light
	Online		Steady orange and green lights
Environment Requirements	Operating Temperature		0-50℃
	Store Temperature		-20-60℃
	Humidity		0-80%RH, Non-condensing
Physical Features	Material		Plastic
	Cable Length		DVI: 150 mm (Including DVI connector)
			USB: 300 mm
	Weight		110g
	Dimension		106mm x 45mm x 21.7mm
