Background

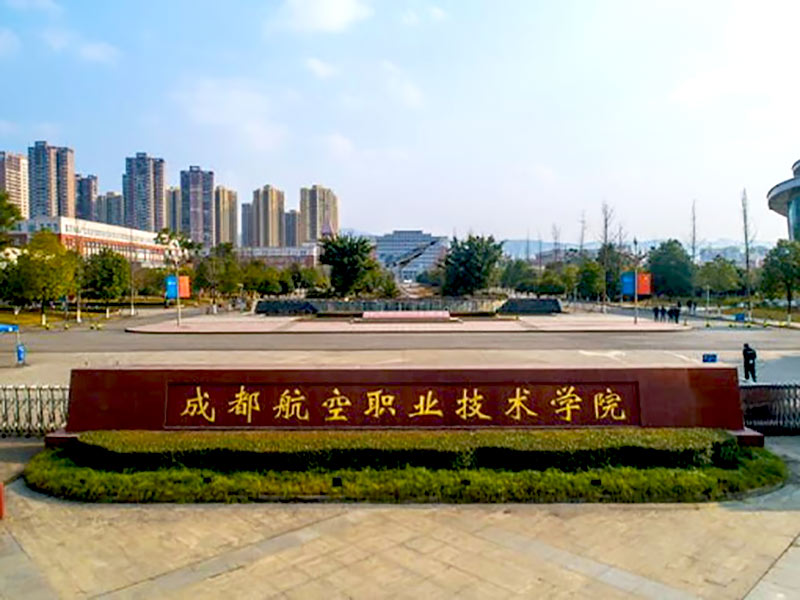

Chengdu Aeronautic Polytechnic is one of the earliest institutions of higher learning in China to independently hold higher vocational education approved by the ministry of Education. It is one of the first batch of national exemplary higher vocational colleges and one of the first pilot schools in the country to pilot the targeted training of non-commissioned officers.
Issue
The 16-port KVM switch used in the past can’t effectively solve the present management problem because of the expansion of server rooms. The college has to deal with the issue that maintenance personnel can’t maintain the faulty equipment in time due to increased servers.
Potential Risk: The manager needs to check the operation of the servers, which is easy to cause potential risk because of the high temperature and radiation of the server room.
the Low Efficiency: If the managers want to check the servers, they have to enter the server room, which is not conducive to finding problems in time when one of the servers goes dowm.
Requirement
Chengdu Aeronautic Polytechnic server room has added 54 servers, which were previously allocated to design, construction, and software and hardware systems independent of each other, and server room managers need to frequently enter and exit the server room to check the servers, which leads to potential hazards and low efficiency. Therefore, it is necessary to update the system for convenient remote management of the servers.
Solution

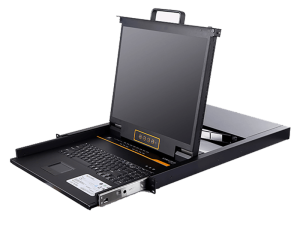

Kinan LC2932i is an integrity of LED screen, ultra-thin keyboard, touch pad in a 1U height unit, allowing 1 remote user to access to KVM to control 32 servers via a web browser using TCP/IP protocol.
- It provides a variety of automatic scanning modes to continuously monitor the server selected by the user.
- BRC broadcast-Operate multiple servers at the same time.
- Remote access to KVM (keyboard, video, mouse) via IP amd remote control via Java-enabled web browser. The system can be controlled at the BIOS level and at boot.
![](https://www.kinankvm.com/wp-content/uploads/2024/07/chengdu-college-300x225.png)
![](https://www.kinankvm.com/wp-content/uploads/2024/07/chengdu-college-1.png)
Kinan CM-0906U, USB interface module, Cat5 series dedicated supporting module, module transmission distance up to 150m.
Design
Using 2 LC2932i LED KVM consoles and CM-0906U can successfully meet the control of 54 servers, local and remote control. At the same time, the network cable cabling is more convenient and low-cost.
Features
- Compared with the general management method, Kinan’s digital KVM can realize the functions of remote management, such as the allocation of personnel permissions, control of access rights by time, comprehensive recoding of various access events and other flexible functions, which can be more secure, effective and convenient to manage the server used for data storage.
- Kinan’s digital KVM unified integration solution protects users’ previous investment, and at the same time, the technical solutions adapted to local conditions enable users to maximize the technical advantages of digital products.
