Background
China Unicom Cloud Data Co.,Ltd., a wholly-owned subsidiary of China United Network Communications Co.,Ltd., is a large-scale, state-owned high-tech enterprise with independent legal personality. Supported by the strong communication network, superior infrastructure, great client groups and good brand reputation of China United Network Communications Co., Ltd, China Unicom provides IDC, cloud computing, IT infrastructure, etc. for customers in Internet, government, education, finance, logistics and other industries to help them improve their core competitiveness.
Requirements
- To achieve centralized management of servers, the following list is the detailed requirements:
- Suitable for rack mounting. Comply with the national standard 482.6 equipment installation standard.
- Integrated with a keyboard, a mouse and a folding LCD display.
- The size of the LCD display is not less than 17″, which can ensure that the servers in cabinet can be used normally.
- Provide USB, serial port and PS2 port to directly connect to servers with more than 32 ports.
- Provide all connection cables and control cables.
Features

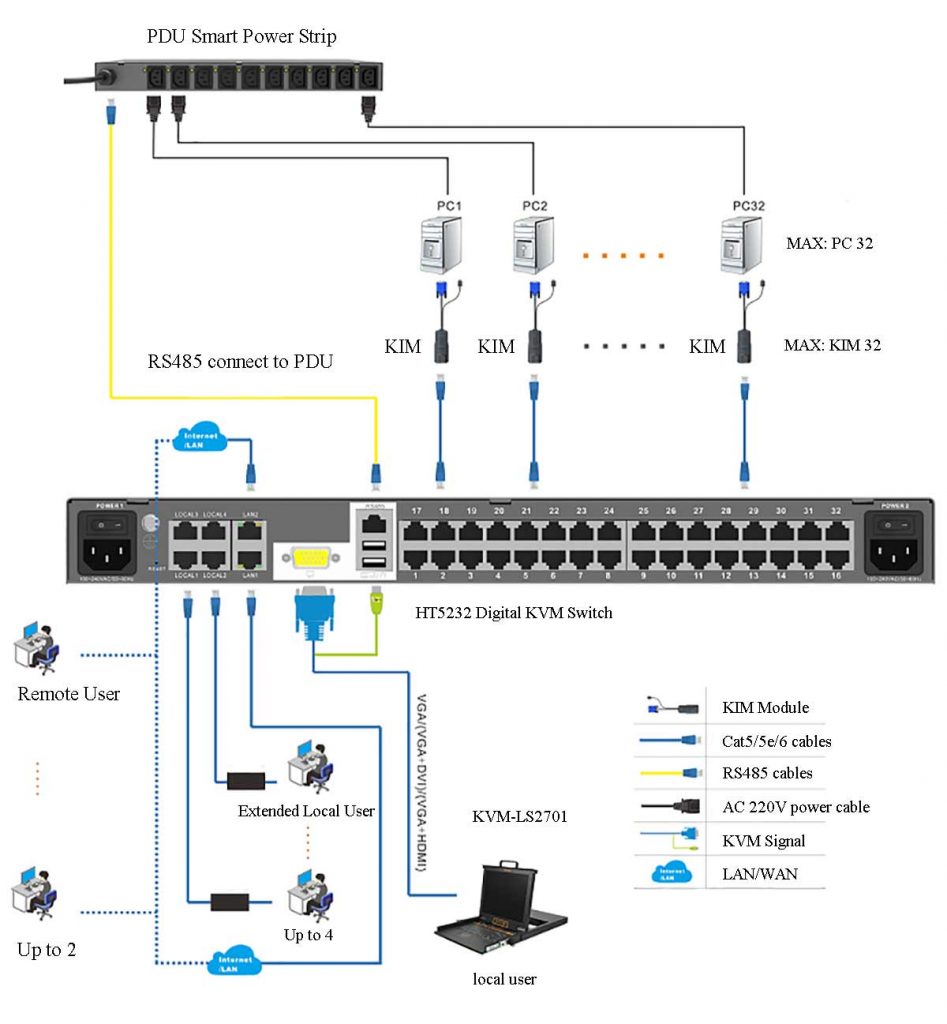

- KVM port with 32 RJ-45 interfaces can connect to the servers via KIM modules.
- Provide 1 local user channel and 4 extended local user channels (another local workstation is required).
- Single IP portal allows 2 IP users to have remote access to servers and control them through the network.
- Equipped with dual power supply and double 10/100/1000M adaptive network interfaces.
- The video resolution of the local user is up to 2048 X 1536@60Hz.
- The video resolution of the remote user is up to 1920 X 1080@60Hz.
- Use web browser to manage client remotely without the needs of installing software.
- Support LDAP and RADIUS.
Result
The client successfully realized unified management of multiple computers. With the Kinan LCD consoles, the staff can conveniently monitor the operation of the servers without the need of going out the server room. And the IP KVM switch allows them check the servers in the control room.
